61 9 040 Set of tools for repair kit IV

Series: E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39, E46, E52, E53, E65, E85, R50, R53.

Storage location: K 108.

SI number: 2 02 92 (505).

Order number: 61 9 040  .

Set of tools for repair kit IV.

Consisting of:

1. = 61 9 041 Hand pliers without crimper.
2. = 61 9 042 Crimper.

   Note: For crimping butt connectors and contact sleeves for strip connectors.

3. = 61 9 043 Cable stripper with wire cutter.
4. = 61 9 044 Crimper.

Note: For crimping antenna connector (antenna cable/radio plug connection).

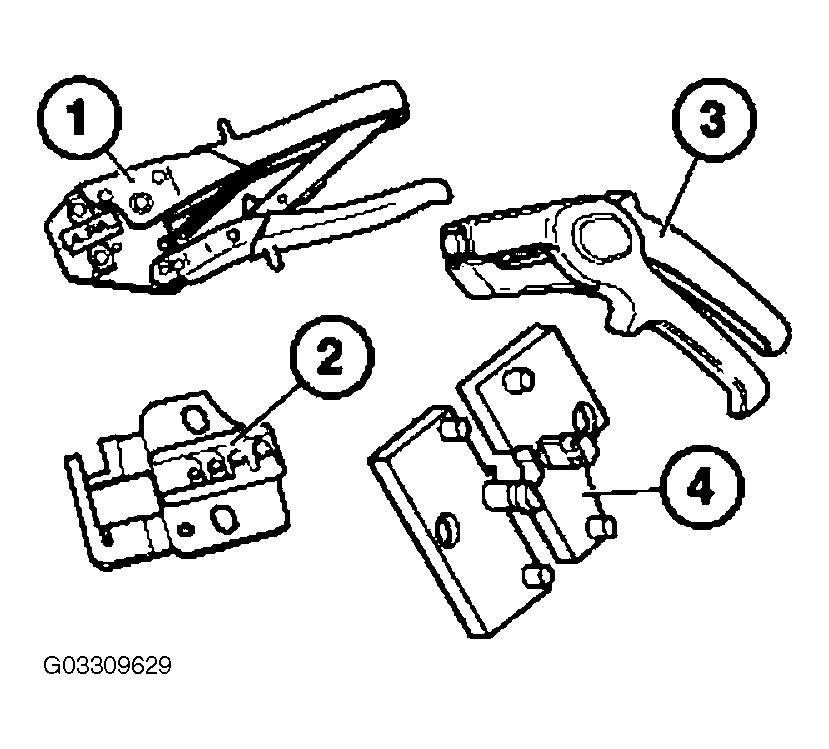

Fig 1: Identifying Special Tool 61 9 040 Set Of Tools For Repair Kit IV

Courtesy of BMW OF NORTH AMERICA, INC.
