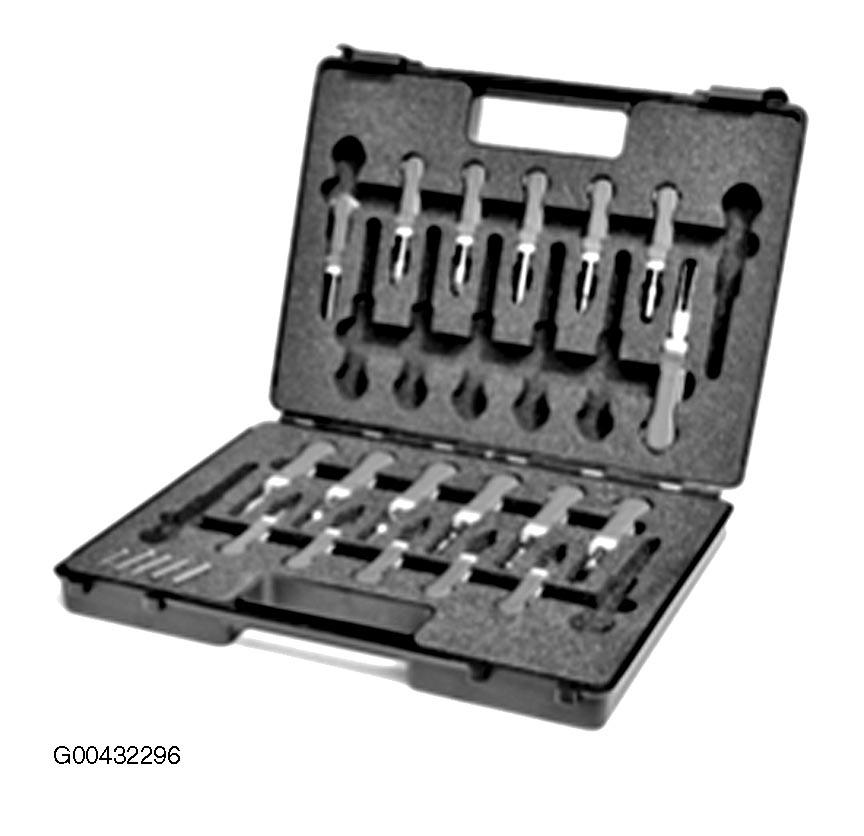

61 0 300 Releasing tool (complete kit)

Minimum set: Measuring and testing equipment

Note: Replaces special tool 61 1 150 from 09/2005.

SI number: 2 05 05 (217).

Order number: 61 0 300.

Releasing tool (complete kit).

Consisting of:

1 = 61 0 301 Releasing tool for round contacts.

Note: Replaces special tool 61 1 131 from 09/2005.

2 = 61 0 302 Replacement sleeve D = 1.5.

Note: Replaces special tool 61 1 157 from 09/2005.

In conjunction with: 61 3 301.

3 = 61 0 303 Releasing tool for round systems with D = 2.5.

Note: Replaces special tool 61 1 132 from 09/2005.

4 = 61 0 304 Replacement sleeve (D = 2.5).

Note: Replaces special tool 61 1 156 from 09/2005.

5 = 61 0 305 Releasing tool for round contacts

Note: Replaces special tool 61 1 133 from 09/2005.

6 = 61 0 306 Replacement sleeve (D = 3.5) for 61 0 305.

Note: Replaces special tool 61 1 155 from 09/2005.

7 = 61 0 307 Releasing tool for jack-side round contacts (D = 2.5).

8 = 61 0 308 Replacement sleeve for special tool 61 0 307 (D = 2.5).

9 = 61 0 309 Releasing tool for pin-side round contact (D = 1.5) - Kostal.

Note: Replaces special tool 61 1 139 from 09/2005.

10 = 61 0 311 Replacement sleeve for special tool 61 0 309.

Note: Replaces special tool 61 1 154 from 09/2005.

11 = 61 0 312 Releasing tool for flat spring contacts with a snap-in lug (1.6 mm).

Note: Replaces special tool 61 1 134 from 09/2005.

12 = 61 0 313 Releasing tool for flat spring contacts with a snap-in pin (1.9 mm).

Note: Replaces special tool 61 1 137 from 09/2005.

13 = 61 0 314 Releasing tool for flat spring contact with a snap-in pin (2.7 mm).

Note: Replaces special tool 61 1 135 from 09/2005.

14 = 61 0 315 Releasing tool for flat spring contacts with double snap-in pin "Micro-Timer 2".

Note: Replaces special tool 61 1 151 from 09/2005.

15 = 61 0 316 Releasing tool for flat spring contacts with double snap-in pin "SPT 4.8" "JPT 2.8".

Note: Replaces special tool 61 1 136 from 09/2005.

16 = 61 0 317 Releasing tool for LSK 8.

Note: Replaces special tool 61 1 200 from 09/2005.

17 = 61 0 318 Releasing tool for "Maxi Power Timer 9.5".

Note: Replaces special tool 61 1 180 from 09/2005.

18 = 61 0 319 Releasing tool for sensor laminated contacts ("SLK2.8").

Note: Replaces special tool 61 1 148 from 09/2005.

19 = 61 0 321 Releasing tool for sensor laminated contacts with releasing element ("SLK 2.8").

20 = 61 0 322 Releasing tool for mini laminated contact ("MLK 1.2 mm").

21 = 61 0 323 Releasing tool for flat spring contacts with a snap-in pin (MQS).

Note: Replaces special tool 61 1 152 from 09/2005.

22 = 61 0 324 Releasing tool for secondary locking.

Note: Universal tool for damage-free opening/removal of secondary locking.

23 = 61 0 329 Case with foam inlay without tools.

Note: Storage system for releasing tools from kit 61 0 300.
