61 61 010 Checking/adjusting contact angle of windscreen wiper arms on windscreen

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL - COOPER (1.6L) R50/W10 and GENERAL ELECTRICAL SYSTEM - SPECIAL TOOLS - COOPER (1.6L) R50/W10 .

Special Tools Required:

00 9 220
00 9 230
61 6 100

NOTE: The wipe quality is improved by precise adjustment of the wiper arm contact angle. Adjustment angle can be checked with special tool 00 9 230 or 61 6 100.

Checking with setting gauge:

Before checking approach angle, briefly lift windscreen wiper arms off windscreen.

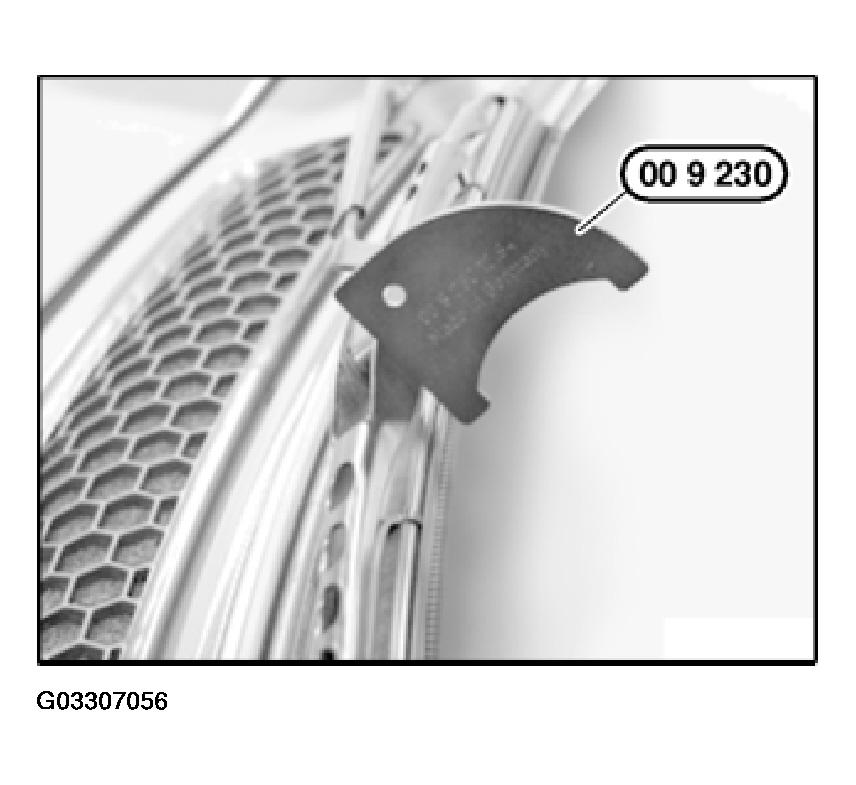

Place special tool 00 9 230 next to pivot point of wiper blade on windscreen.

Check light gap, adjust wiper arm if necessary.

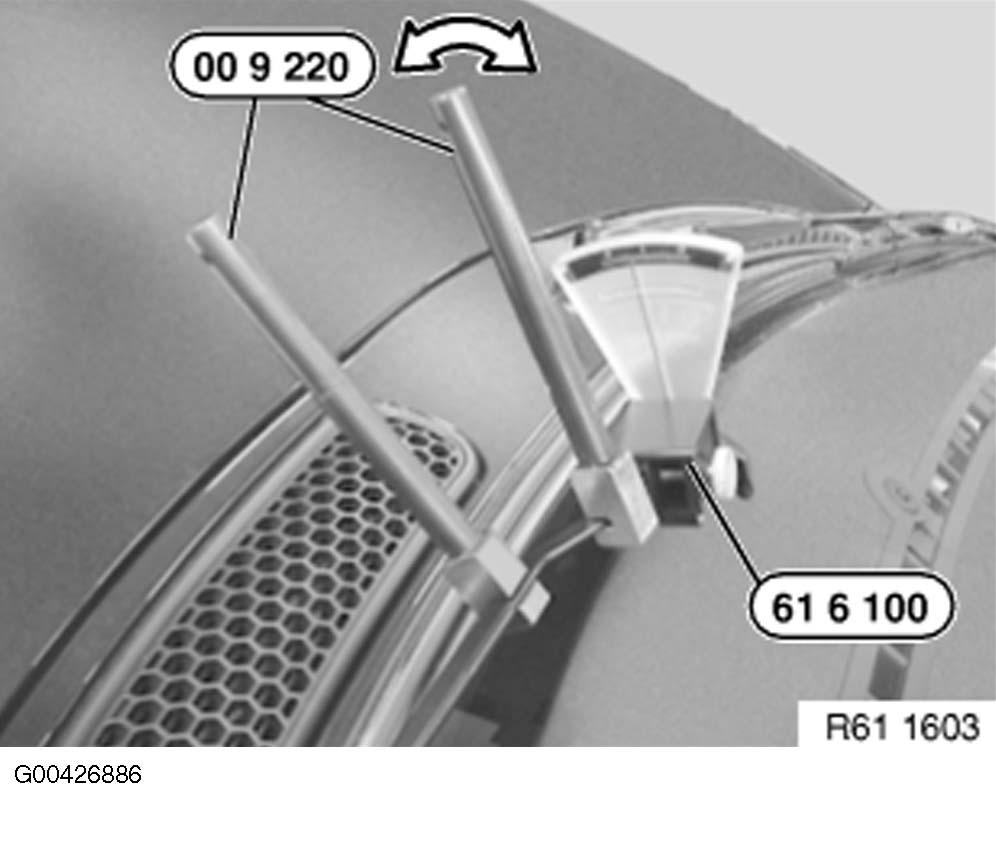

Fig 1: Installing Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Tape off wiper arm with fabric adhesive tape to avoid damage.

Press special tools 00 9 220 in appropriate direction until correct contact/approach angle is obtained.

Fig 2: Aligning Wiper Blade Using Bending Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Checking with angulometer:

Remove wiper blades.

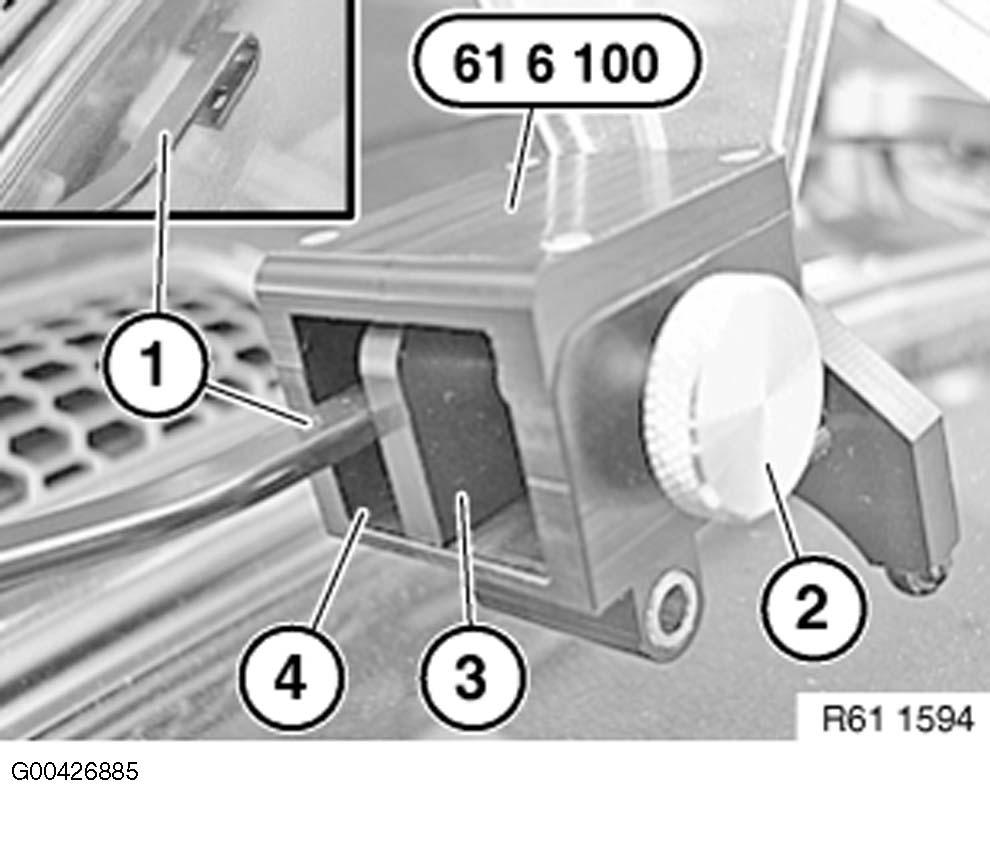

Insert windscreen wiper arm (1) in angulometer 61 6 100.

Using screw (2) and pressure plate (3), locate windscreen wiper arm (1) and position on windscreen.

Read off value in degrees, adjust wiper arm if necessary.

NOTE: Windscreen wiper arm (1) must rest correctly on lower and side contact surfaces (4) of angulometer 61 6 100. On right-hand-drive cars, screw (2) must be located on left side of special tool 61 6 100.

Fig 3: View Of Angulometer

Courtesy of BMW OF NORTH AMERICA, INC.

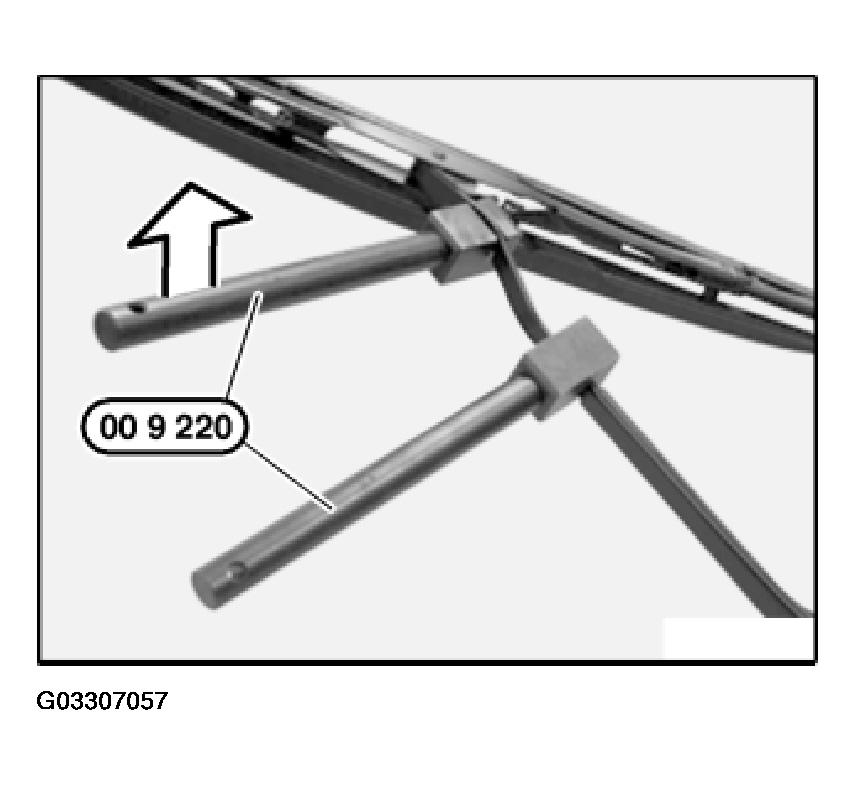

Press special tools 00 9 220 in appropriate direction until correct contact/approach angle is obtained.

Fig 4: Aligning Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.
