61 71 015 Removing and installing/replacing a spray nozzle in windscreen washer system
Necessary Preliminary Tasks:
- Detach hood/bonnet noise insulation in rear area. Refer to 51 48 001 REMOVING AND INSTALLING/REPLACING ENGINE HOOD/BONNET SOUND INSULATION .

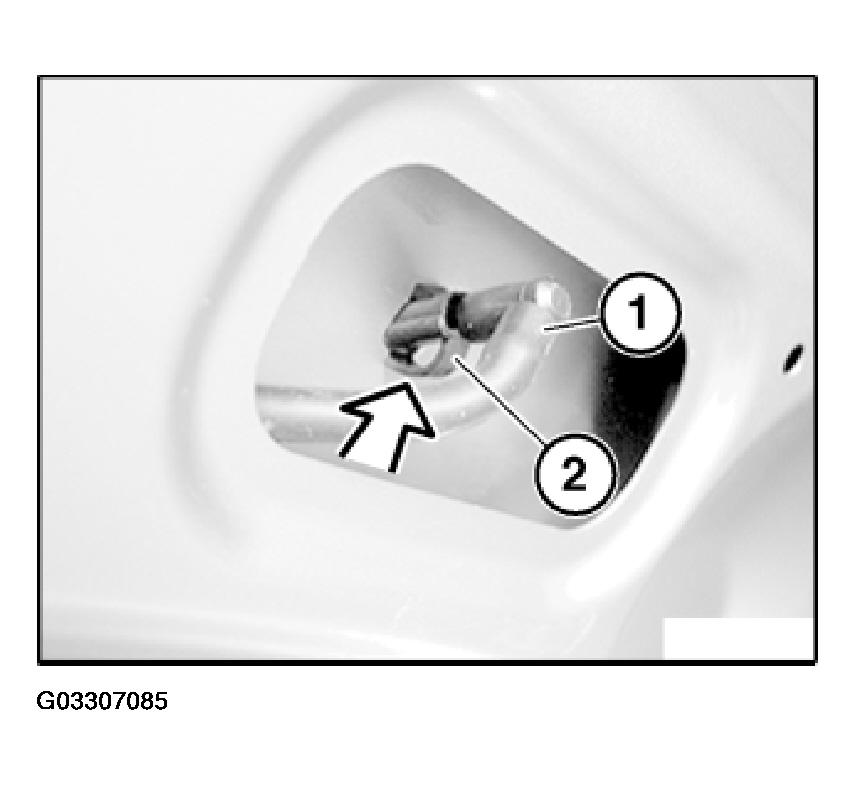

Remove hose (1).
If necessary, disconnect associated plug connection.
Press retainer (2) together and remove spray nozzle for windscreen washer system.
