61 31 011 Removing and installing/replacing volute spring cassette

Necessary Preliminary Tasks:

• Remove fixture for steering column stalk. Refer to 61 31 006 REMOVING AND INSTALLING (REPLACING) FIXTURE FOR STEERING COLUMN STALK .

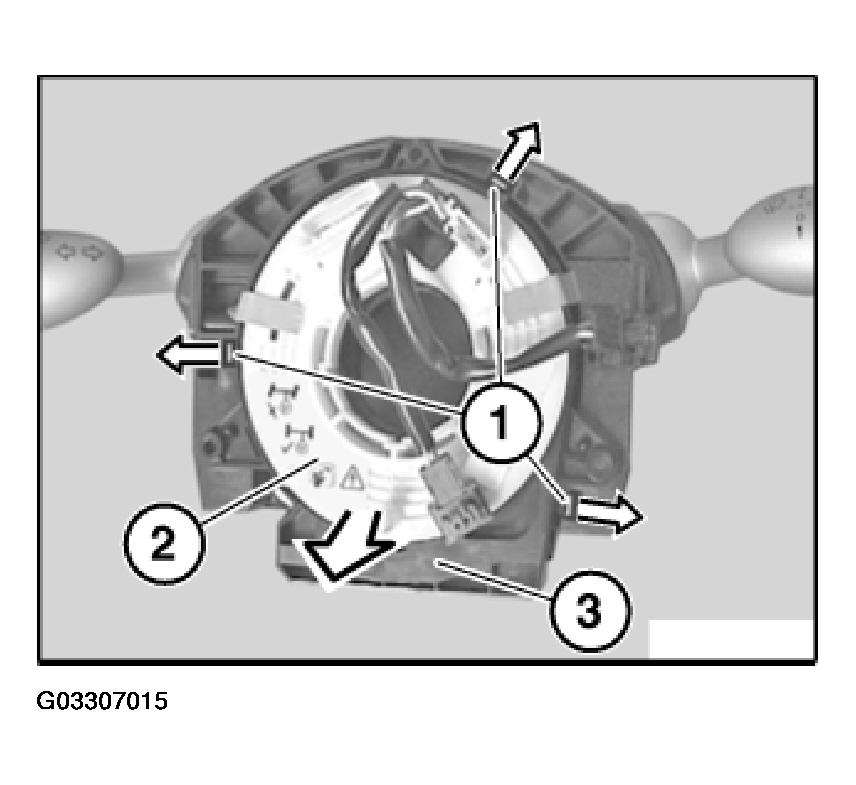

Expand catches (1) and remove volute spring cassette (2) from fixture for steering column switch (3).

Fig 1: Replacing Volute Spring Cassette

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

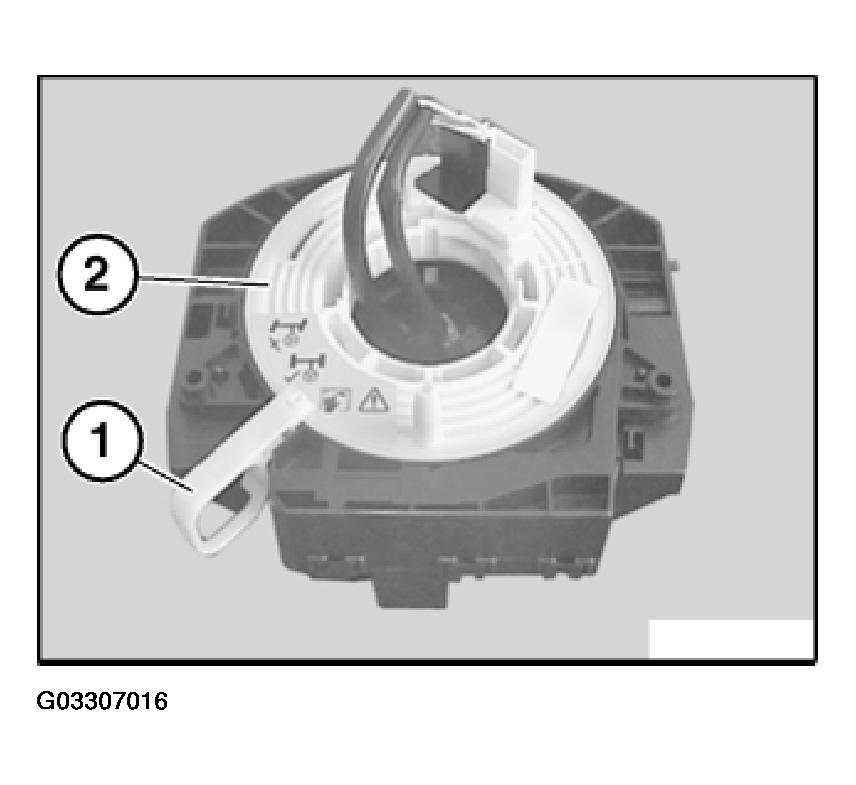

Break off turning lock (1) of new volute spring cassette (2).

Fig 2: Identifying Turning Lock Of Volute Spring Cassette

Courtesy of BMW OF NORTH AMERICA, INC.
