51 71 447 Removing and installing/replacing trim for cover on left or right frame side member

Necessary Preliminary Tasks:

R52 only:

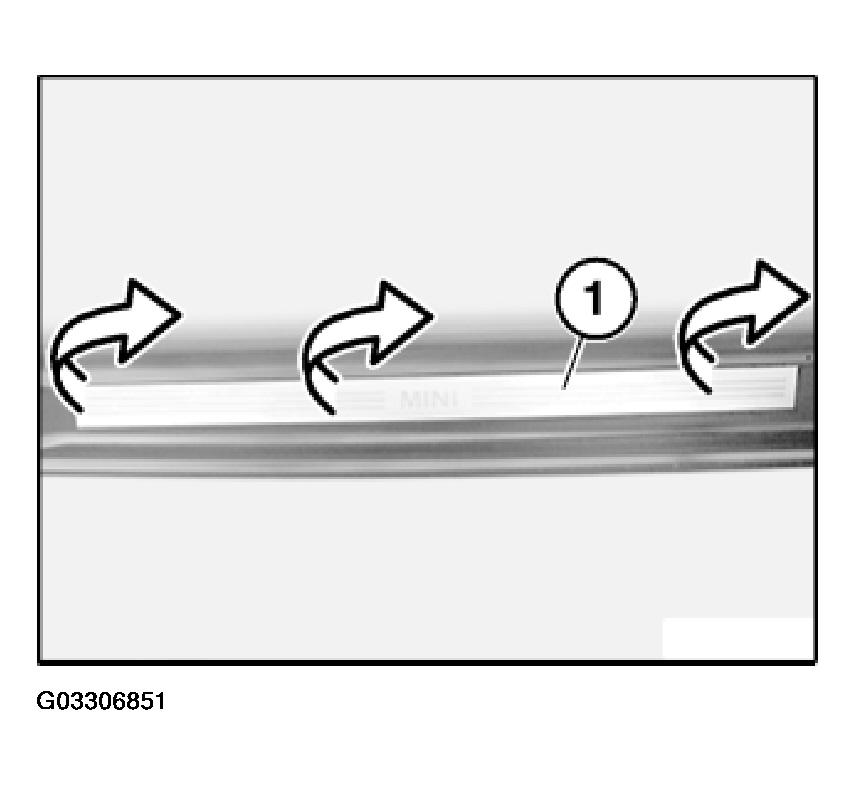

Remove and dispose of insert (1) for door sill cover.

Installation:

Adhesive residues must be removed from door sill cover prior to fitting.

Fig 1: Removing Of Insert For Door Sill Cover

Courtesy of BMW OF NORTH AMERICA, INC.

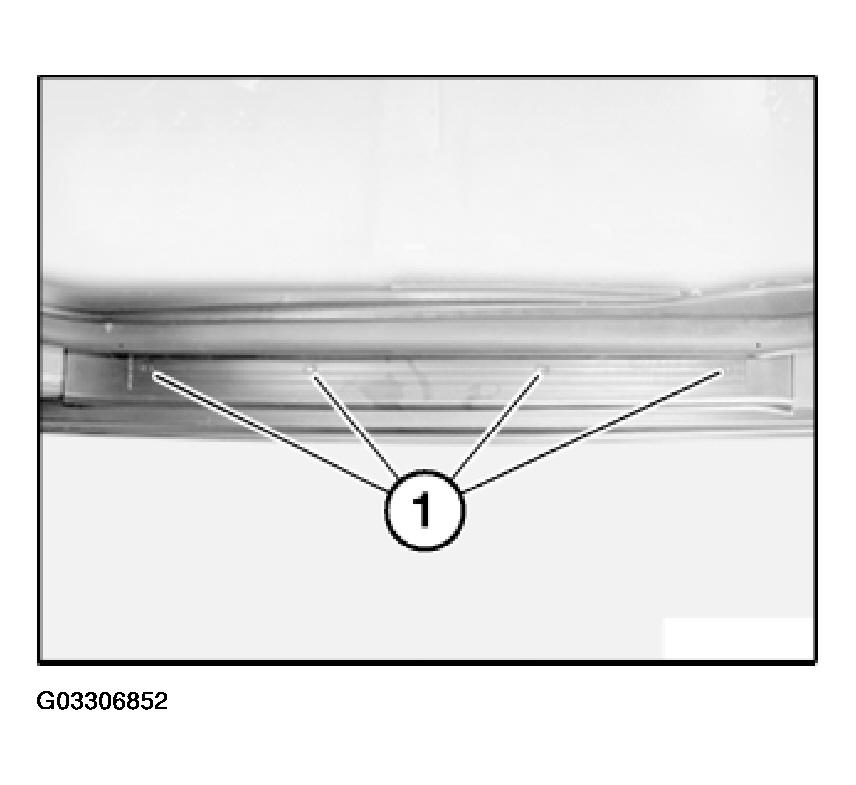

Remove and dispose of clips (1) for door sill cover.

Fig 2: Locating For Door Sill Cover

Courtesy of BMW OF NORTH AMERICA, INC.

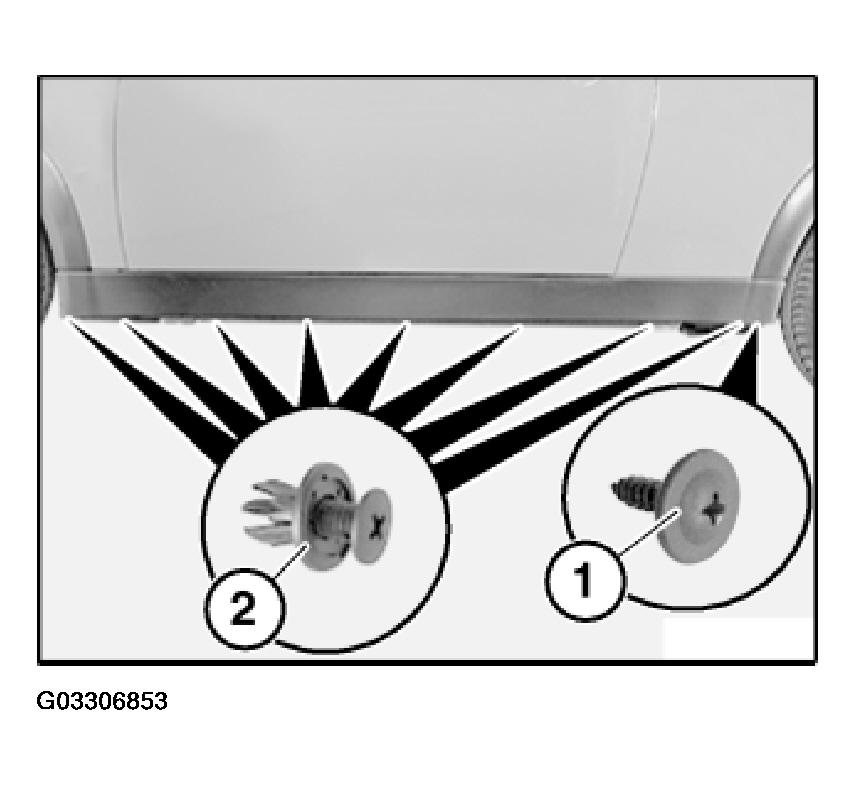

Release screw (1).

Release threaded blind rivet (2).

Release clips for door sill cover and remove from body.

Fig 3: View Of Threaded Blind Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

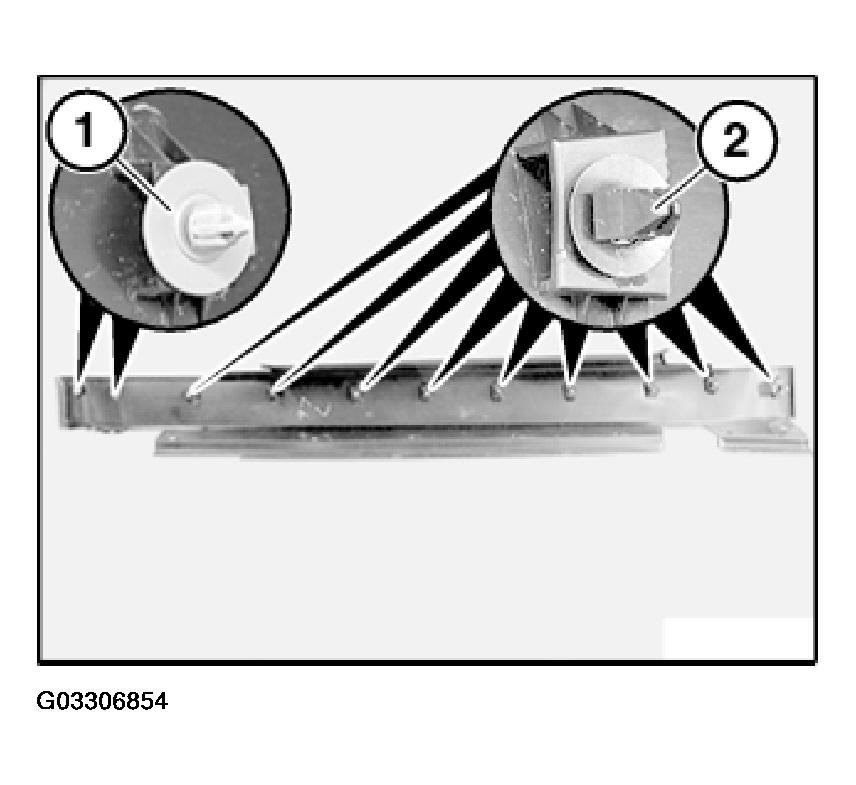

Make sure damaged clips (1 and 2) are replaced prior to fitting.

Fig 4: Identifying Damaged Clips

Courtesy of BMW OF NORTH AMERICA, INC.
