51 71 360 Removing and installing/replacing seal on tailgate aperture

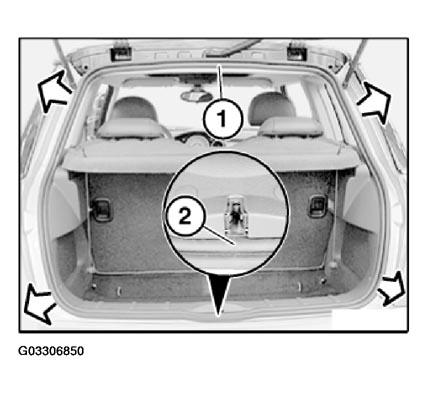

Remove seal (1).
Install Hint:
Ensure seal joint (2) is located in position shown.
Ensure seal is correctly located onto adjacent trim panels.
Courtesy of BMW OF NORTH AMERICA, INC.
