51 32 170 Removing and installing or replacing front left or right door window
NOTE:
For Special Tool identification, see BODY EQUIPMENT - SPECIAL TOOLS - COOPER (1.6L) R50/W10 .
Special Tools Required:
- 51 3 240
Necessary Preliminary Tasks:
- Remove front door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING FRONT LEFT OR RIGHT DOOR TRIM PANEL .
- Remove outer window cavity cover strip. Refer to 51 21 300 REMOVING AND INSTALLING/REPLACING WINDOW CAVITY COVER STRIP ON OUTER SIDE OF FRONT DOOR .

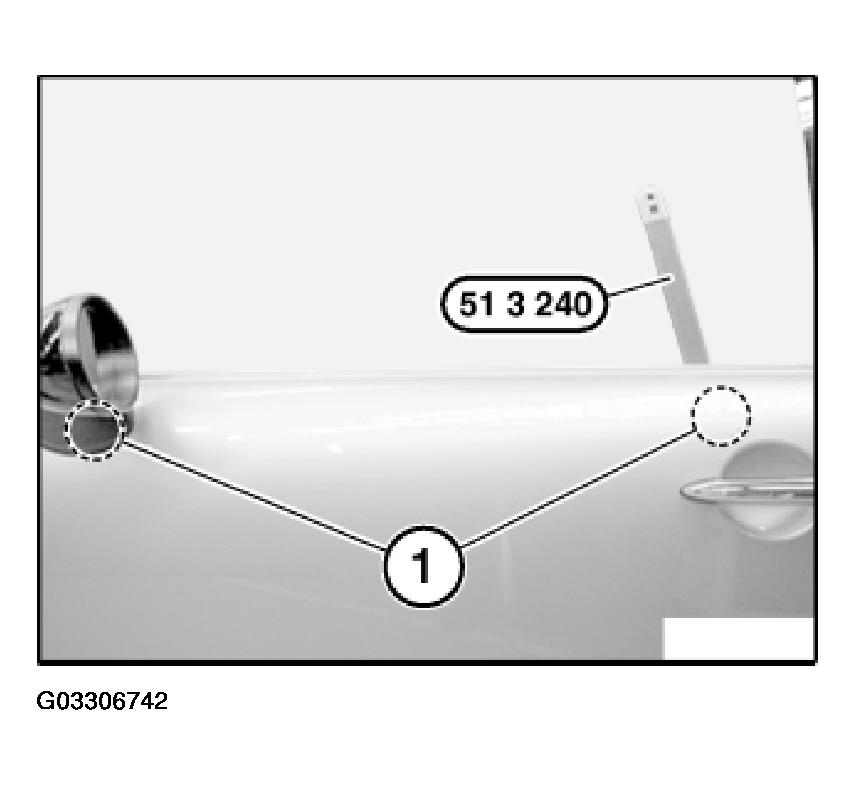

Slacken shims (1) on door window glass with special tool 51 3 240.

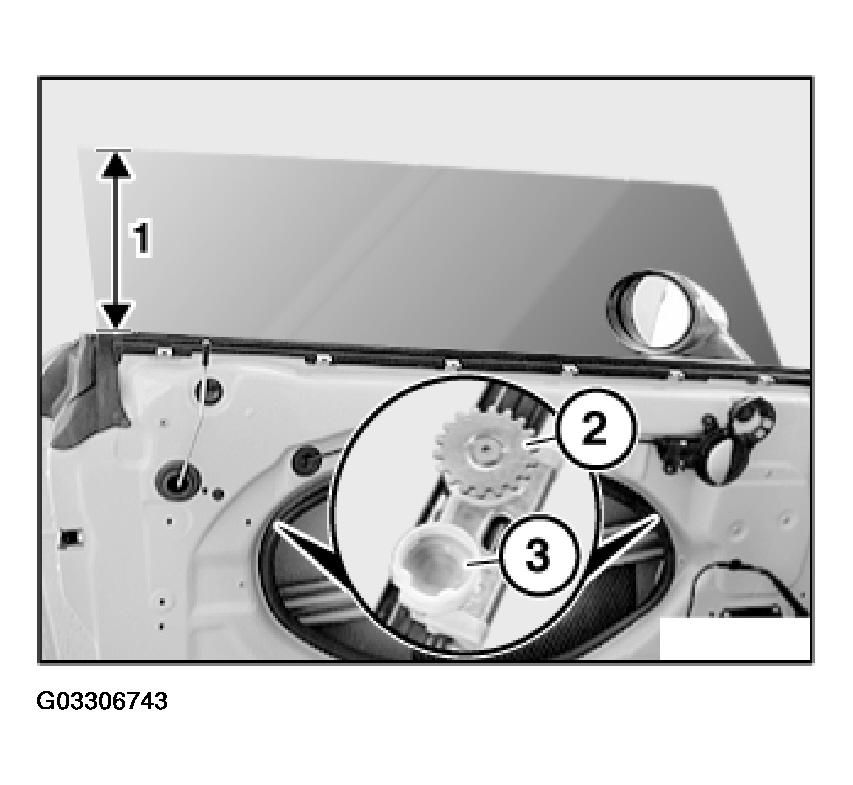

Lower door window glass to measurement (1).
1 = 220 mm.
IMPORTANT:
Disconnect battery negative lead. Refer to 12 00 DISCONNECTING AND CONNECTING BATTERY
.
Remove shims (2).
Tightening torque, refer to 51 32 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .
Release glass from power window unit (3) and lift out glass.
Installation:
Adjust door window glass. Refer to 51 32 154 ADJUSTING LEFT OR RIGHT FRONT DOOR WINDOW .
