35 40 001 Removing and installing/replacing accelerator pedal module

When replacing control unit:

Press retaining tab (1) downwards and slide accelerator pedal module (2) in direction of arrow off adapter plate and remove.

Disconnect plug connection.

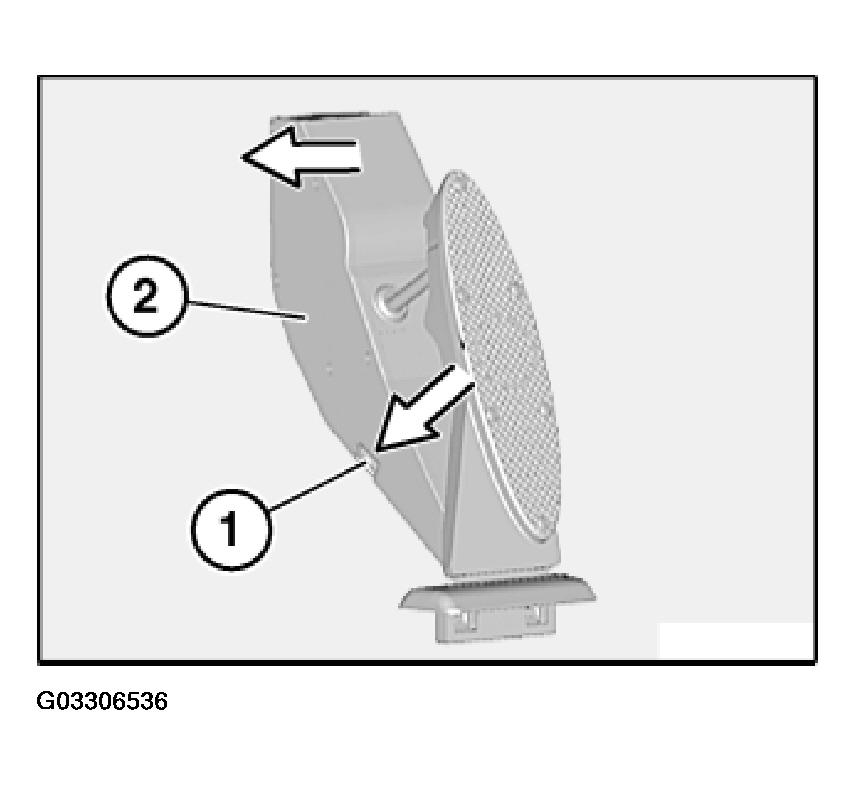

Fig 1: Removing Accelerator Pedal Module

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The adapter plate must be replaced if an accelerator pedal is removed. Refer to 35 40 503 REPLACING ADAPTER PLATE .
