62 13 050 Removing and installing/replacing clock

Release clock housing from headliner.

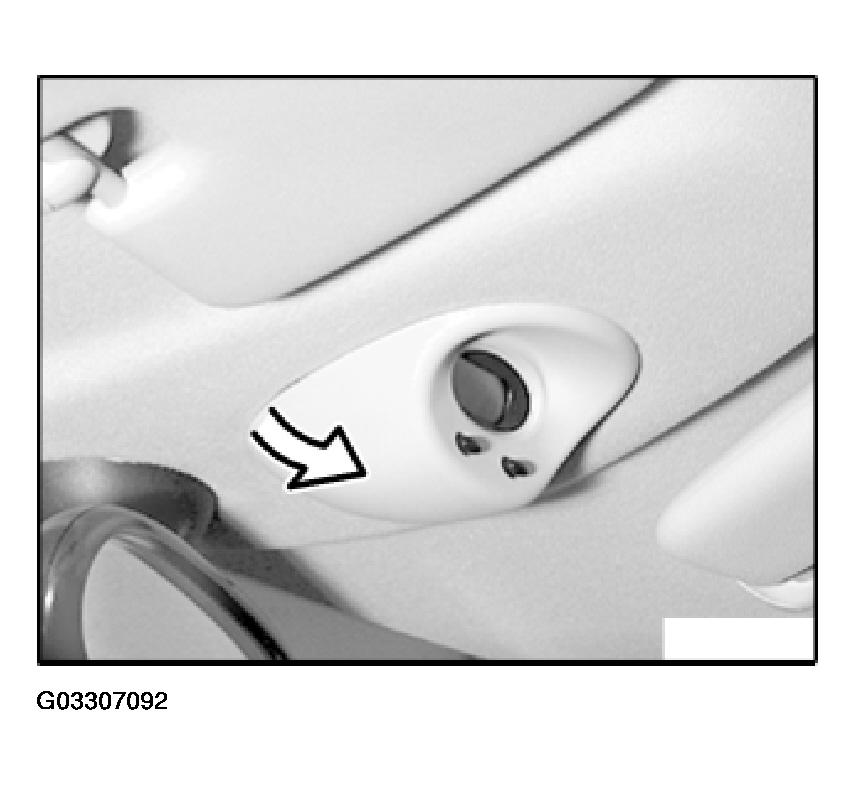

Fig 1: Releasing Clock Housing From Headliner

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect multiplug (1) from clock.

Remove clock housing (2).

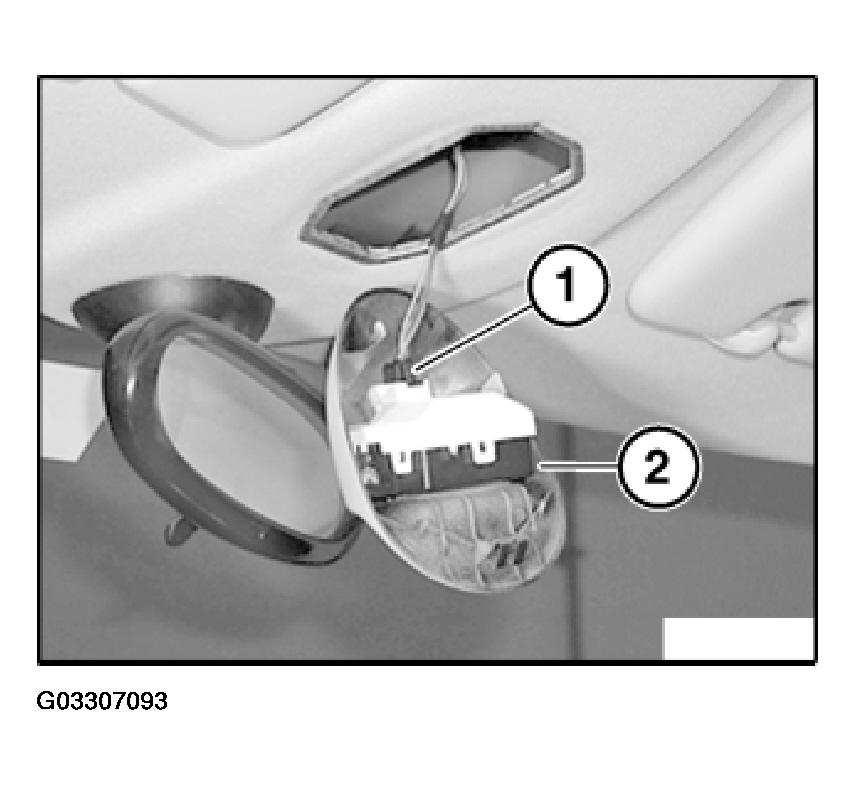

Fig 2: Removing Clock Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove screws (1).

Remove clock (2) from housing (3).

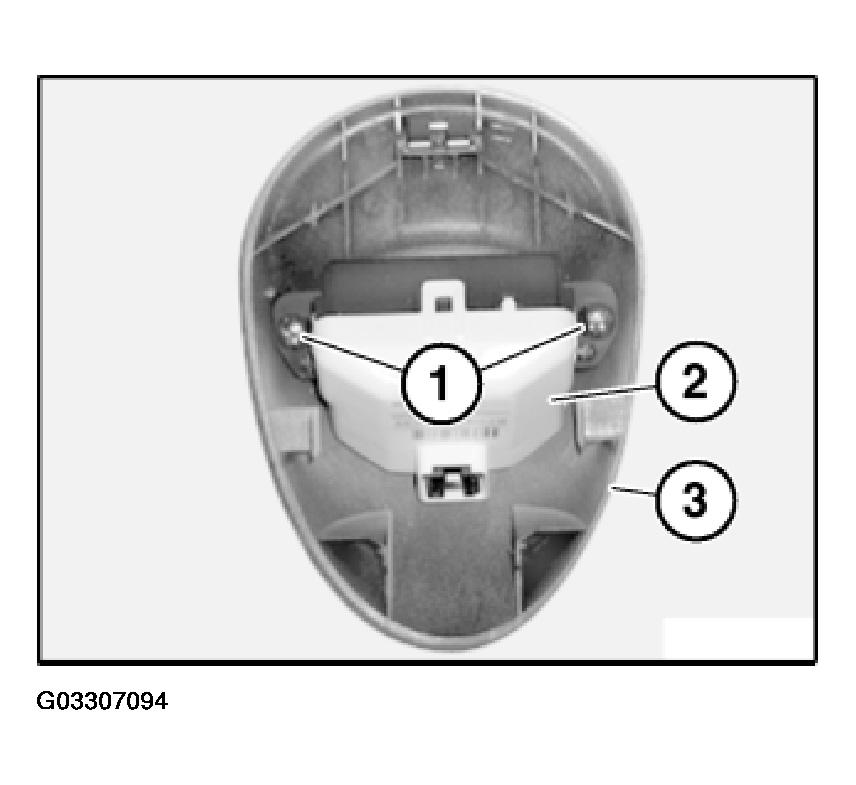

Fig 3: Removing Clock From Housing

Courtesy of BMW OF NORTH AMERICA, INC.
