51 16 450 Removing and installing or replacing rear grab handle

Unclip covers.

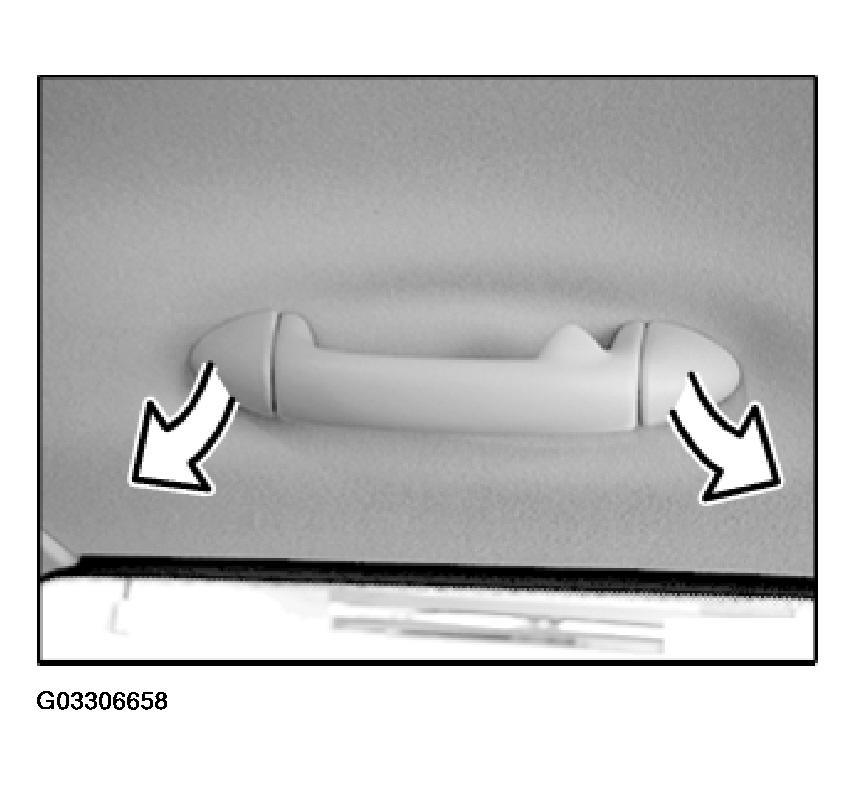

Fig 1: Removing Grab Handle Covers

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screws (1) securing grab handle.

Remove grab handle (2).

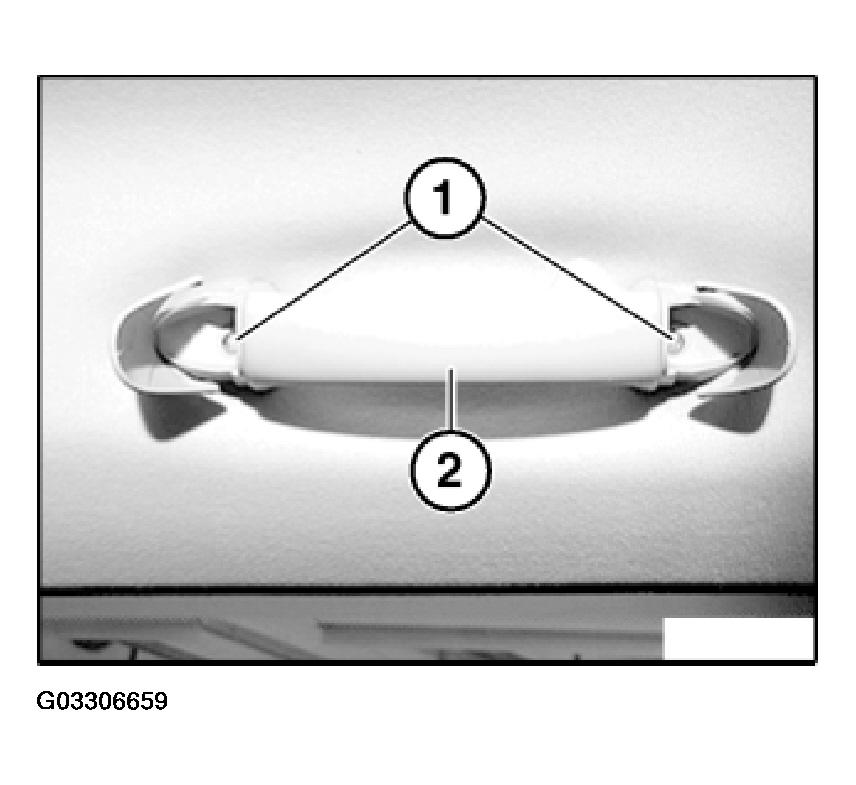

Fig 2: Removing Grab Handle

Courtesy of BMW OF NORTH AMERICA, INC.
