51 16 216 Removing and installing rear storage compartment (with center armrest)

NOTE:

Special Tools Required:

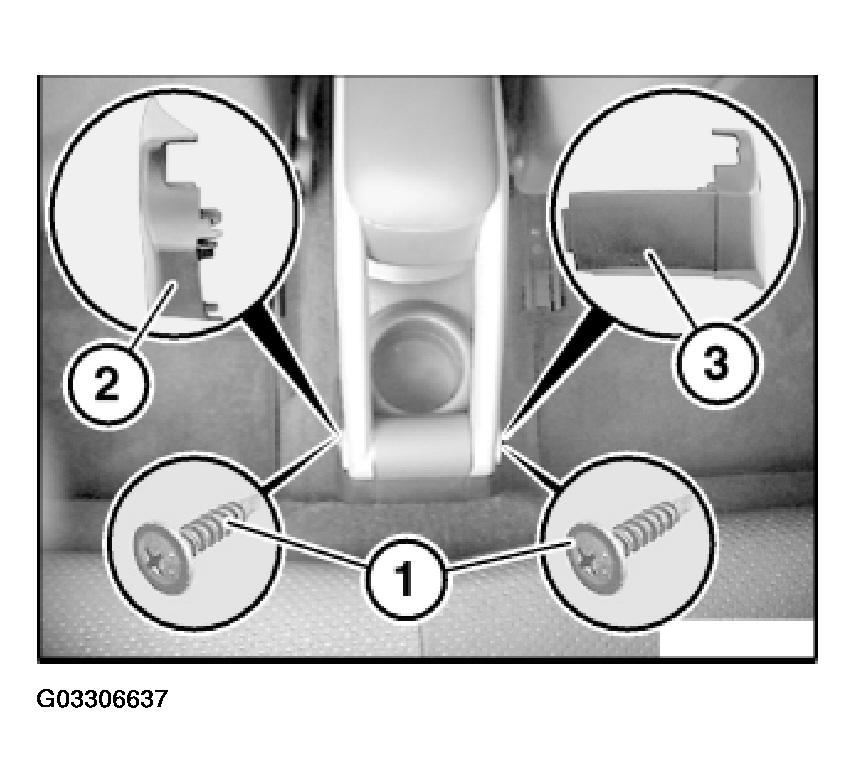

Release screws (1) on left/right.

Remove cover (2) to left and cover (3) to right.

Fig 1: Identifying Cover Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

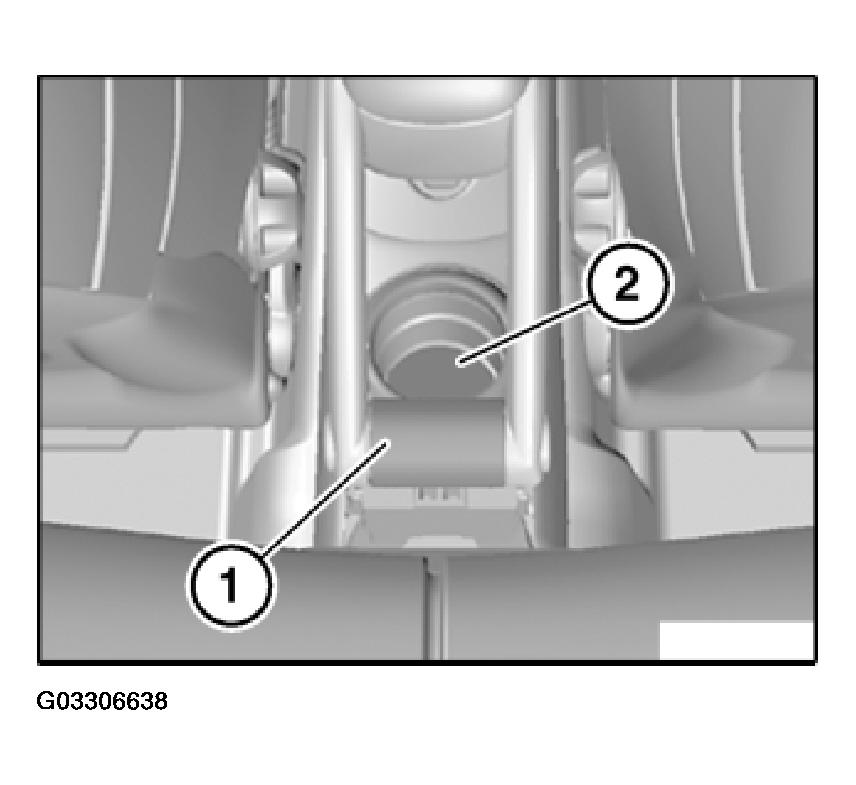

Snap out cover (1) and lift out.

Remove insert mat (2) and release screw underneath.

Fig 2: Removing Insert Mat

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

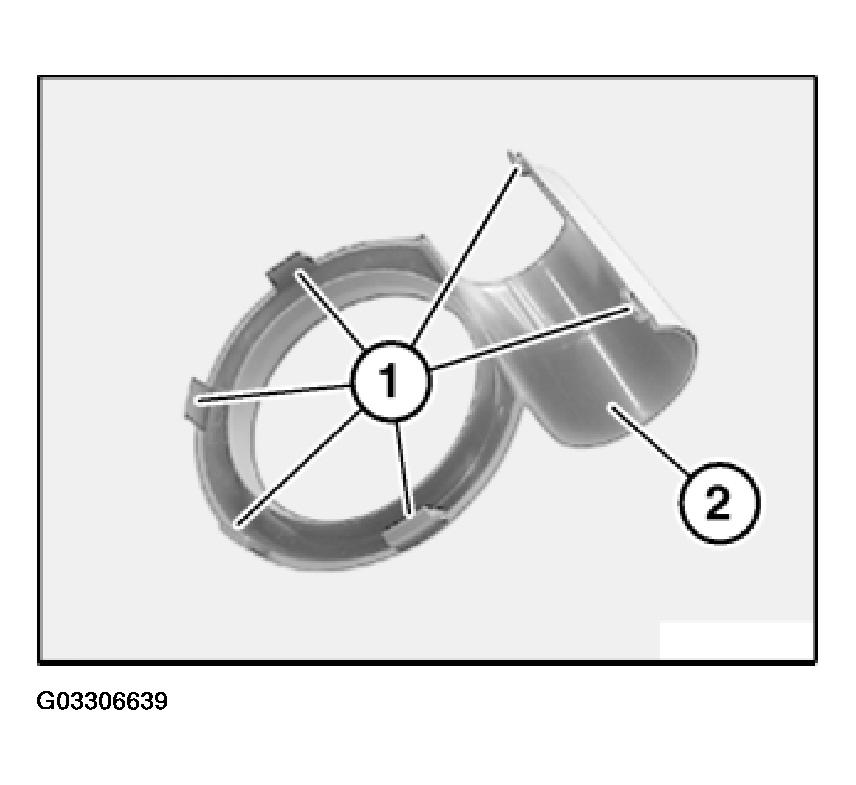

Catches (1) on cover (2) must not be damaged.

Fig 3: Identifying Catches On Cover

Courtesy of BMW OF NORTH AMERICA, INC.

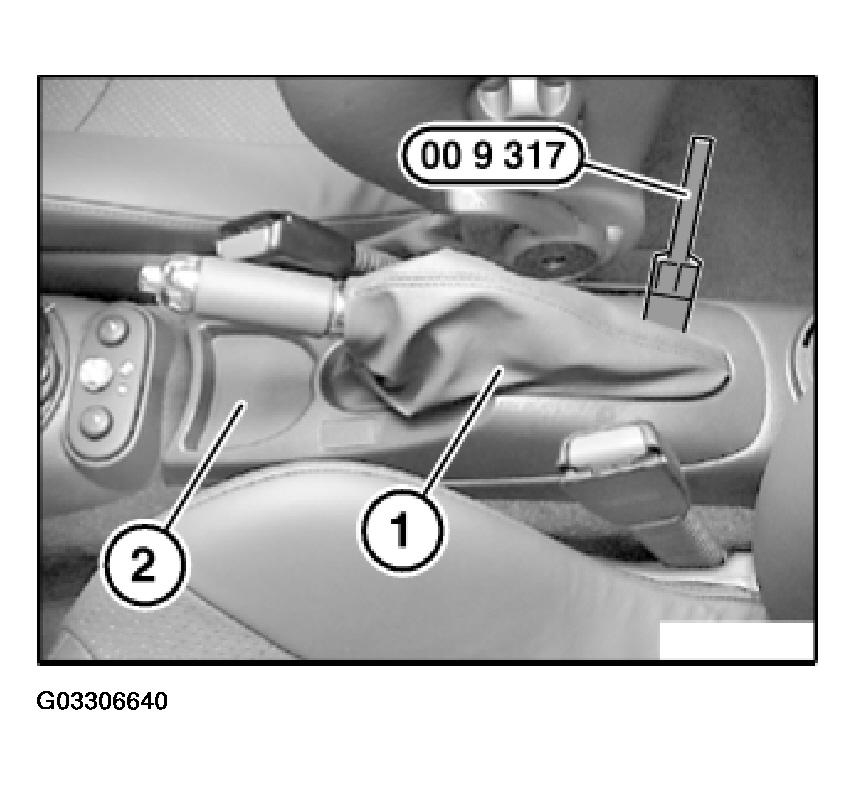

Carefully snap out handbrake gaiter (1) with special tool 00 9 317.

Remove insert mat (2) and release screw underneath.

Fig 4: Locating Handbrake Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

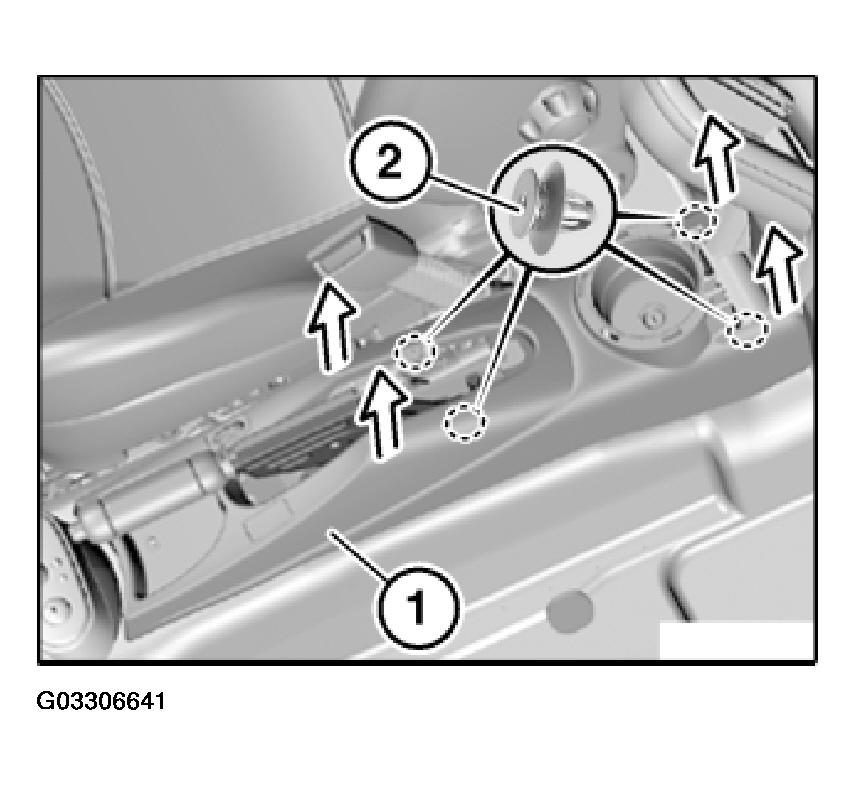

Snap storage compartment (1) up and out of clips (2).

Raise storage compartment (1) and if necessary disconnect plug connections.

Remove storage compartment (1) towards top front.

Installation:

Make sure that no cables are trapped when installing the storage compartment (1).

If necessary, replace clips (2).

Fig 5: Locating Storage Compartment Clips

Courtesy of BMW OF NORTH AMERICA, INC.
