51 16 080 Removing and installing or replacing sunvisor and left or right counter support

Unclip covers and remove screws.

Remove sunvisor and counter support.

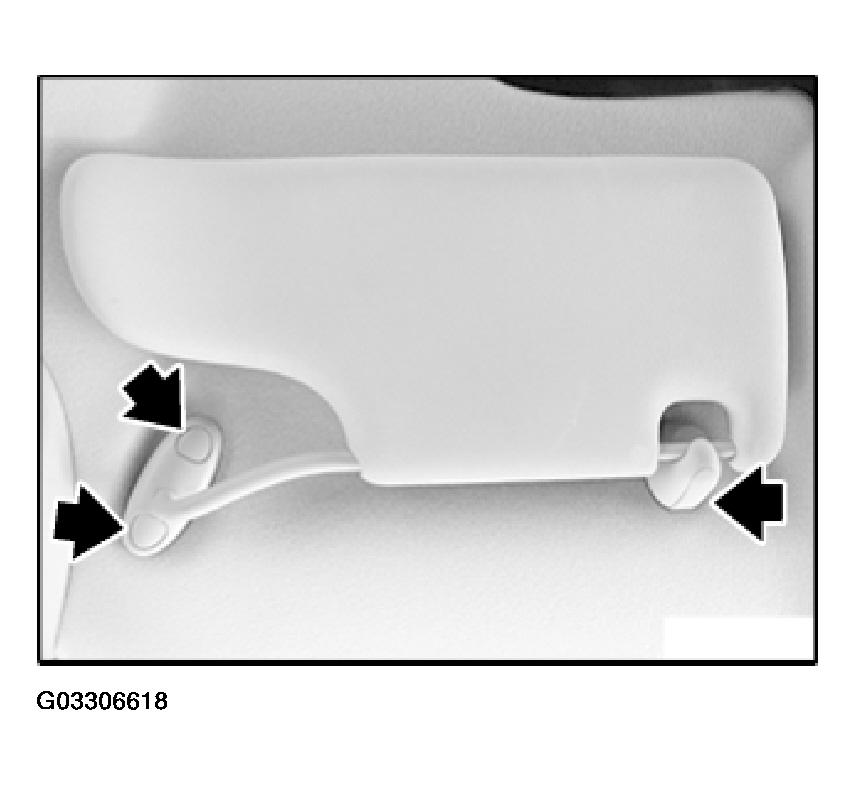

Fig 1: Removing Sunvisor And Counter Support

Courtesy of BMW OF NORTH AMERICA, INC.

Version with interior light package:

Disconnect multiplug from sunvisor.

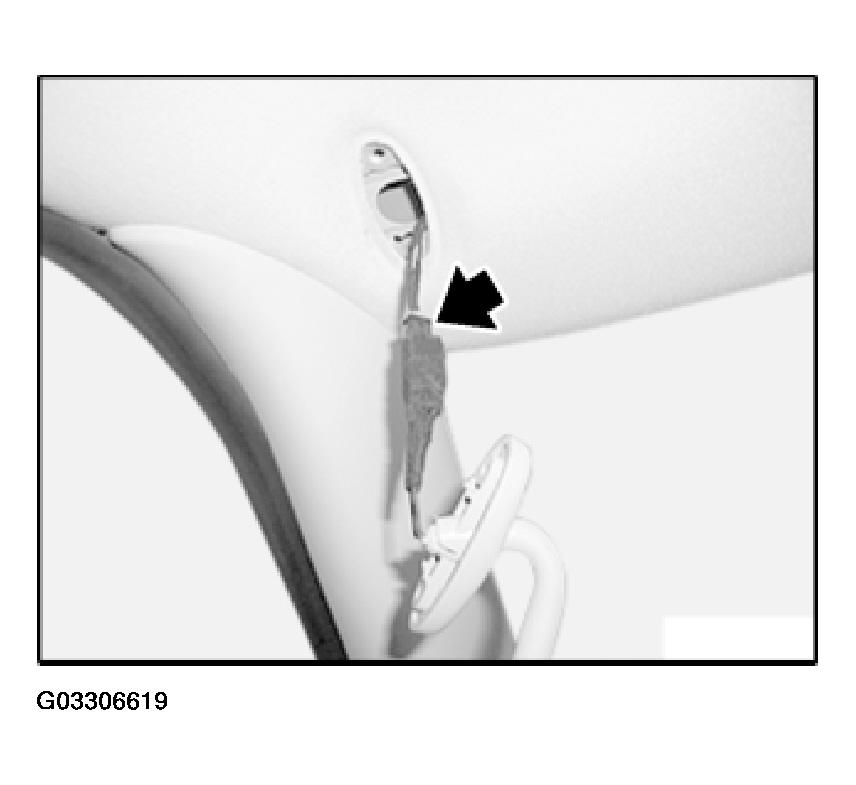

Fig 2: Disconnecting Multiplug From Sunvisor

Courtesy of BMW OF NORTH AMERICA, INC.
