51 16 060 Removing and installing or replacing interior rear-view mirror.

Twist mirror base 90°.

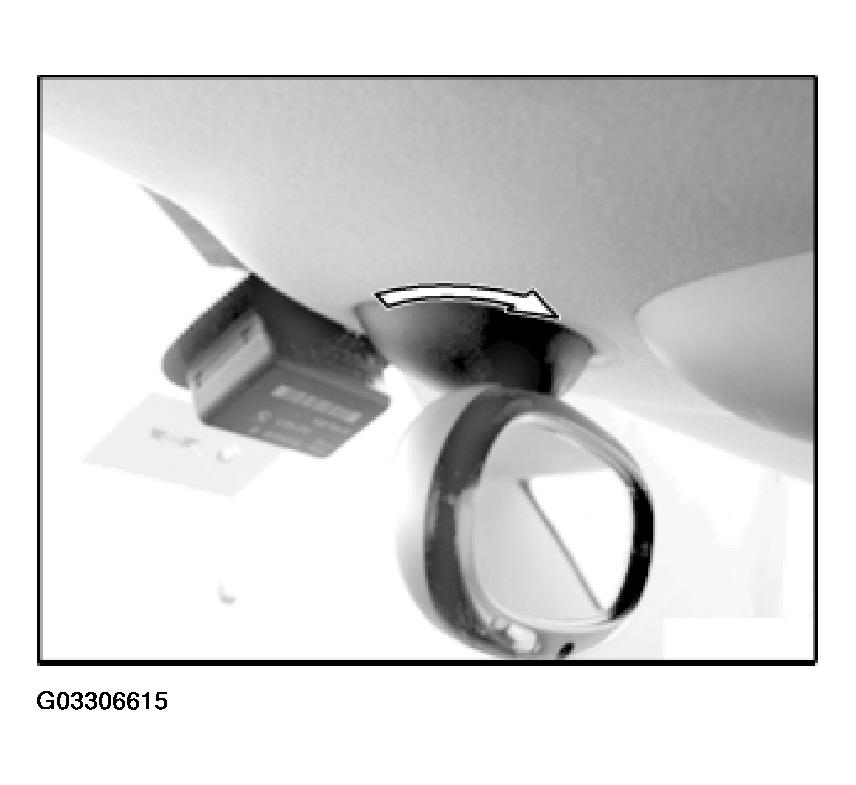

Fig 1: Turning Mirror Base 90°

Courtesy of BMW OF NORTH AMERICA, INC.

Release mirror from mounting.

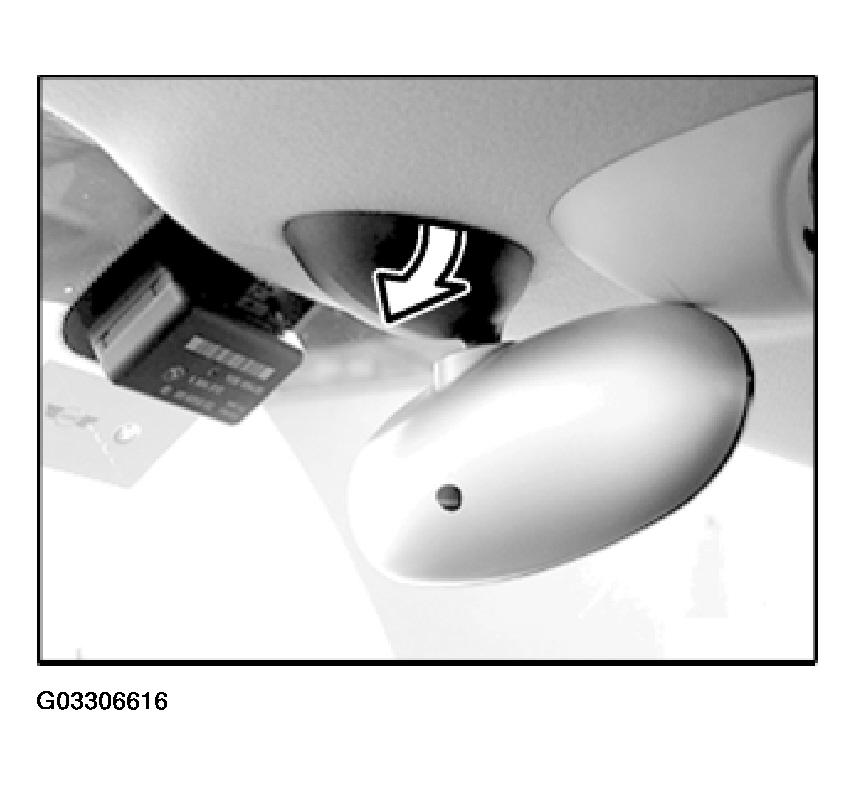

Fig 2: Removing Mirror From Mount

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, disconnect multiple connector.

Remove mirror.

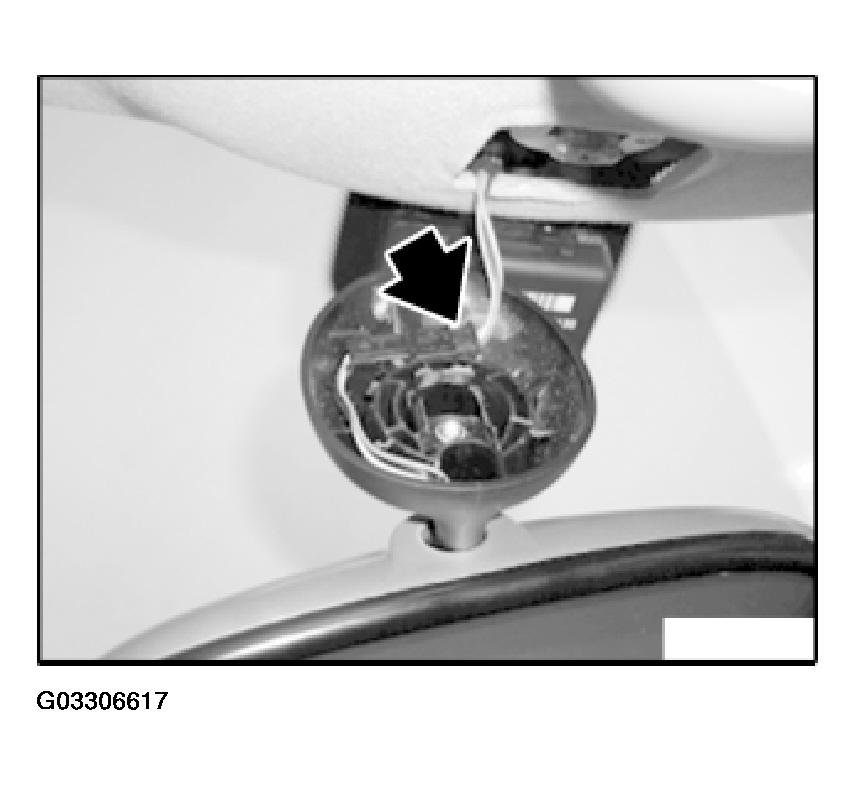

Fig 3: View Of Multiple Connector

Courtesy of BMW OF NORTH AMERICA, INC.
