51 16 040 Removing and installing/replacing housing on left or right door mirror

Necessary Preliminary Tasks:

• Remove mirror glass. Refer to 51 16 026 REPLACING MIRROR GLASS .

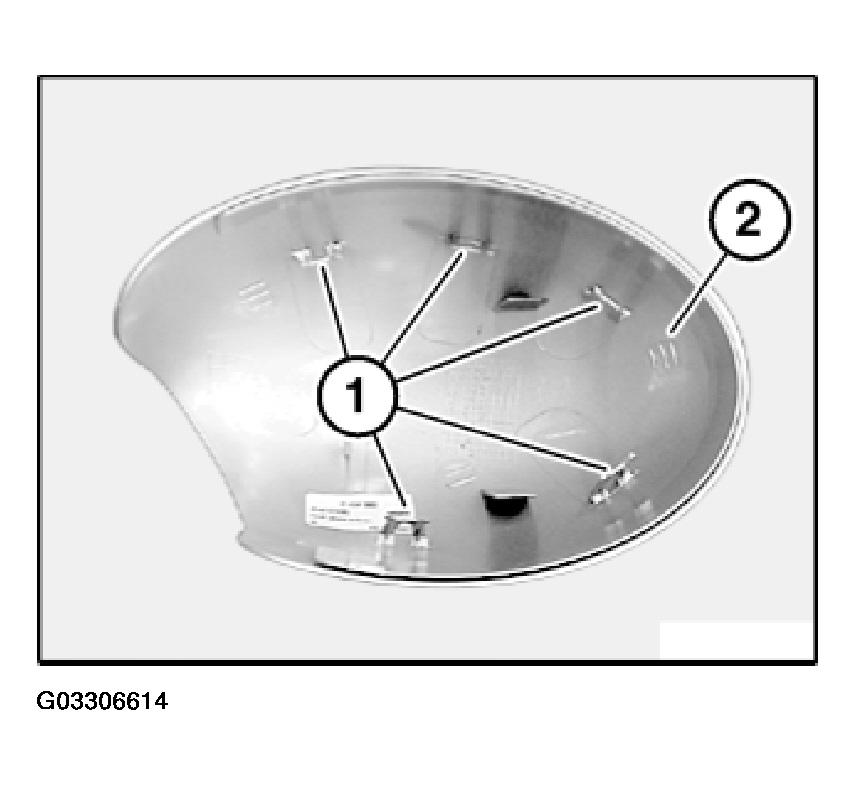

Release catches (1) starting at bottom and remove cover.

Fig 1: Locating Catches On Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

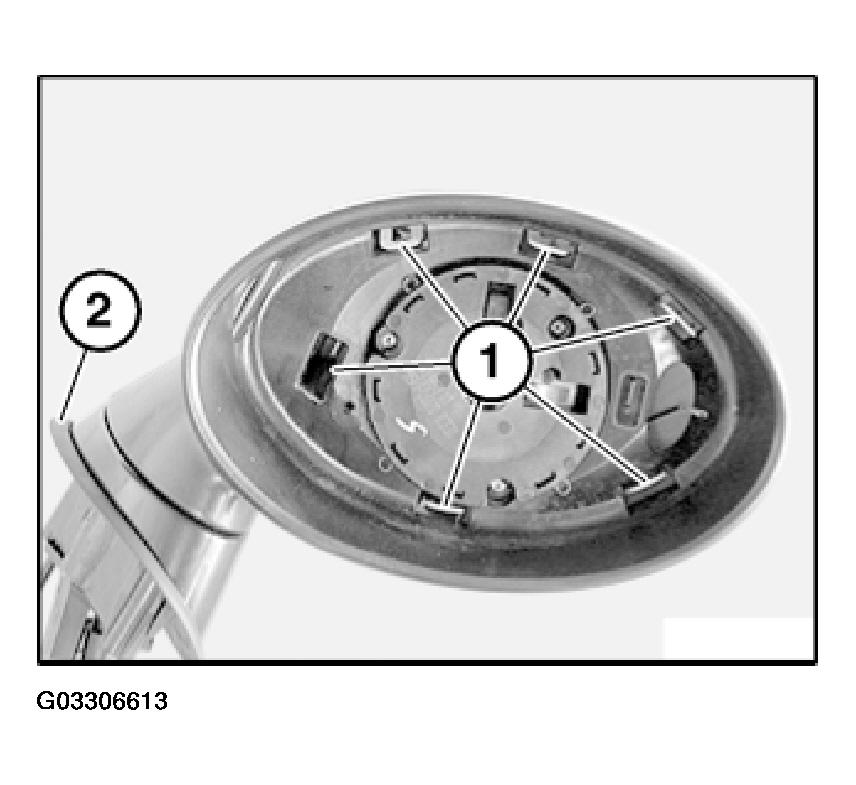

Catches (1) on housing (2) must not be damaged.

Fig 2: Identifying Catches On Housing

Courtesy of BMW OF NORTH AMERICA, INC.
