51 45 068 Removing and installing decorative trim for instrument panel (passenger side)
Up to 07/04:
Necessary Preliminary Tasks:
- If necessary, remove storage compartment. Refer to 51 16 390 REMOVING AND INSTALLING/REPLACING INSTRUMENT PANEL TRIM STORAGE TRAY (PASSENGER SIDE) .
- If necessary, open glovebox.

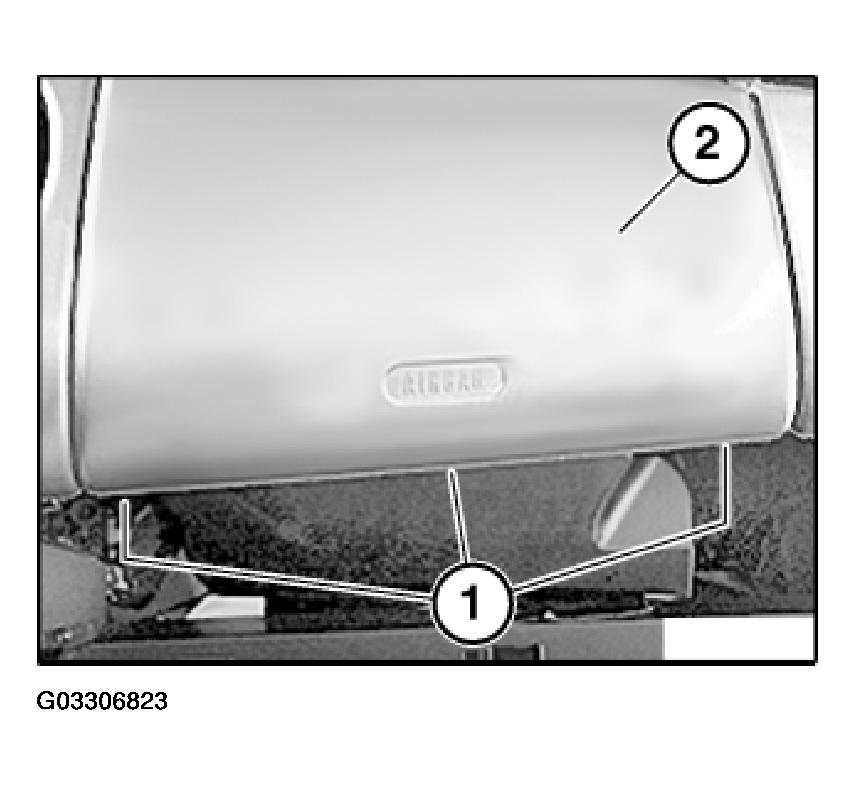

Release screws (1).
NOTE:
Release two screws on underside of decorative trim.
Unclip decorative trim in direction of arrow and remove.
Installation:

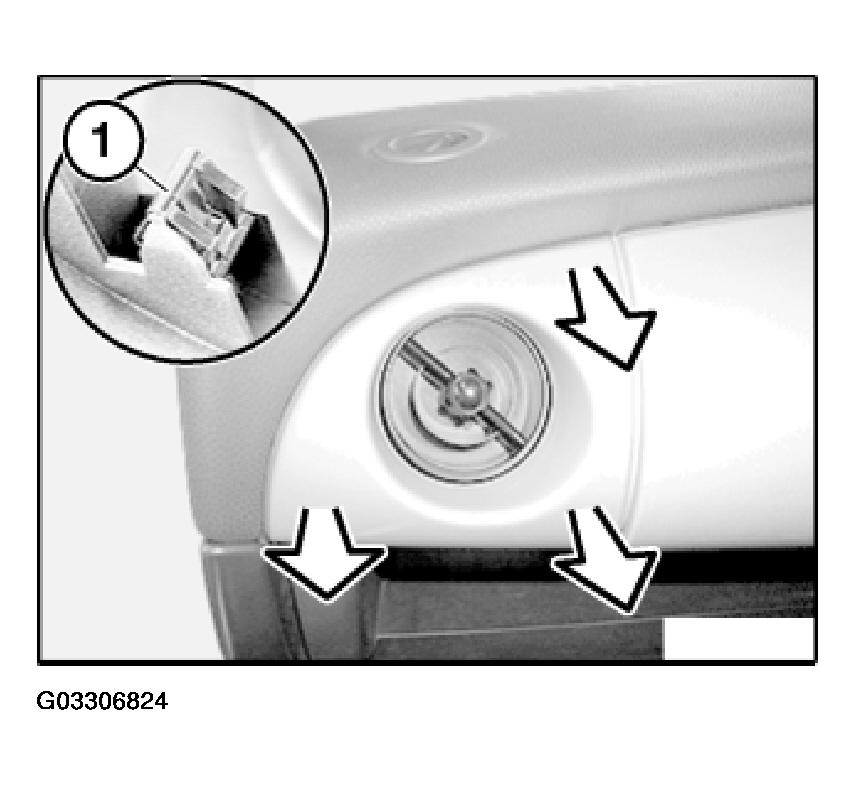

If necessary, replace faulty clips (1) on decorative trim.
From 07/04:
NOTE:

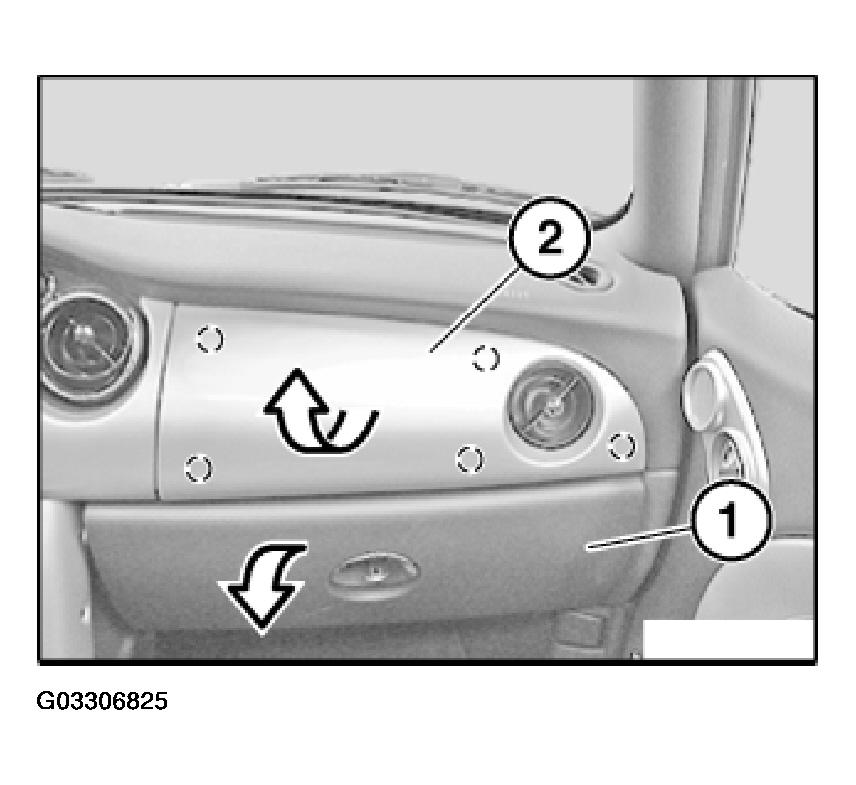

Open glovebox (1).
Unclip decorative trim in direction of arrow and remove.
Installation:
If necessary, replace faulty clips on decorative trim.
