51 11 180 Removing and installing/replacing grille of bumper trim

Remove front bumper trim. Refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .

Remove clips from grille retaining lugs.

Press back grille retaining lugs (1) to detach grille from bumper retaining clips.

Replacement:

Remove outside air temperature sensor. Refer to 65 81 060 REMOVING AND INSTALLING/REPLACING OUTSIDE TEMPERATURE SENSOR .

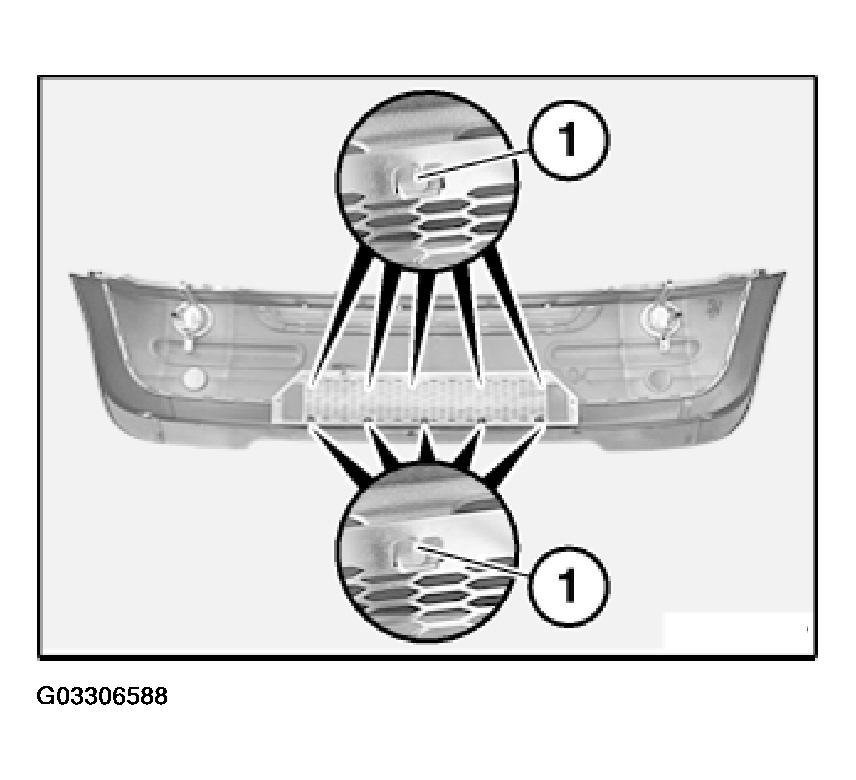

Fig 1: Identifying Grille Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
