51 47 101 Removing and installing/replacing luggage compartment floor trim panel

Release rear backrests and fold down.

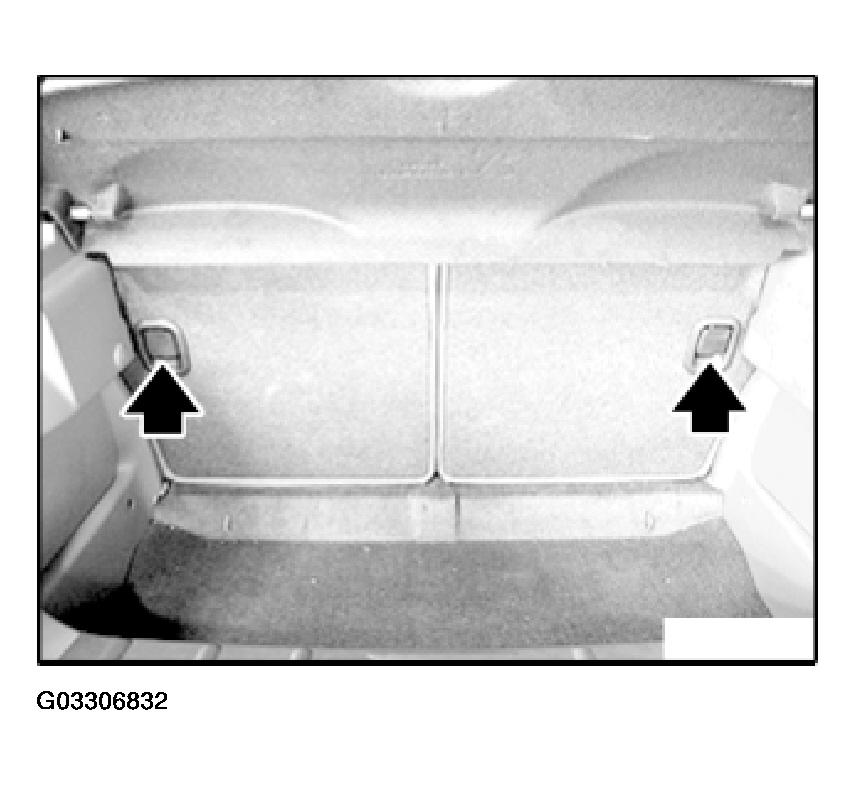

Fig 1: Locating Rear Backrests Locks

Courtesy of BMW OF NORTH AMERICA, INC.

Remove scrivets (1).

Remove floor trim (2).

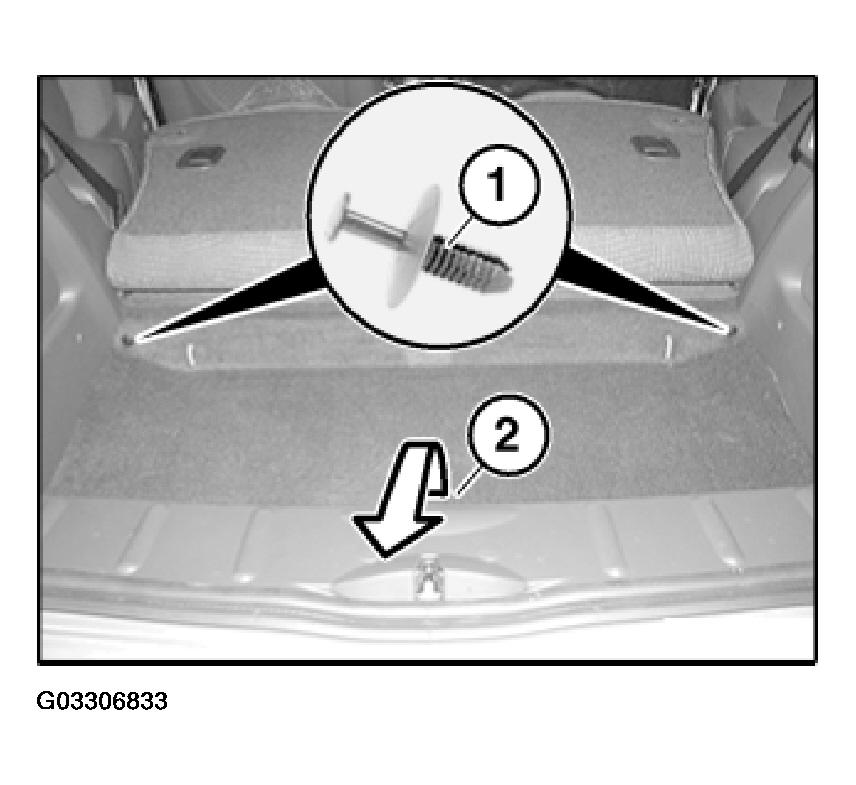

Fig 2: Identifying Floor Trim Scrivets

Courtesy of BMW OF NORTH AMERICA, INC.
