52 13 041 Removing and installing / replacing inner panel on driver's and front passenger seats (manual / electric)

Run seat forward as far as possible.

Detach retaining straps of backrest panel from upholstery carrier (1).

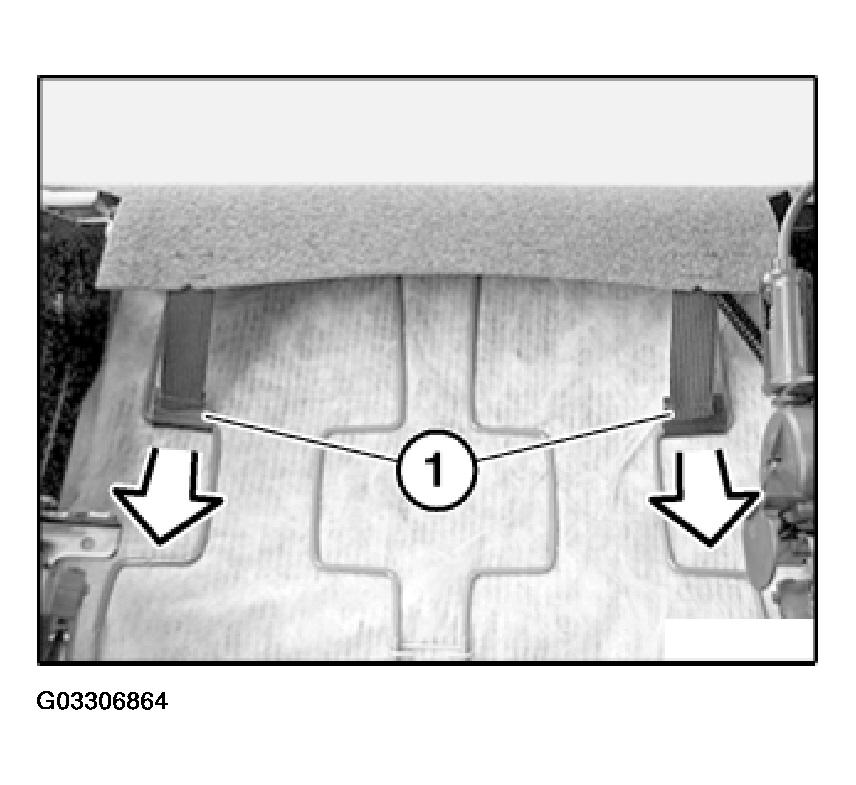

Fig 1: Identifying Retaining Straps Of Backrest Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Remove clip (1) securing rear section of panel.

Pull off retaining clips of panel (2) in direction of arrow. Remove panel (3).

Fig 2: Removing Retaining Clips Of Panel

Courtesy of BMW OF NORTH AMERICA, INC.
