61 31 270 Removing/replacing reverse lamp switch

Remove air filter box. Refer to 13 71 000 REMOVING AND INSTALLING INTAKE FILTER HOUSING .

Remove connector.

Remove reverse lamp switch (1).

Tightening torque, refer to 61 31 1AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUE - COOPER (1.6L) R50/W10 .

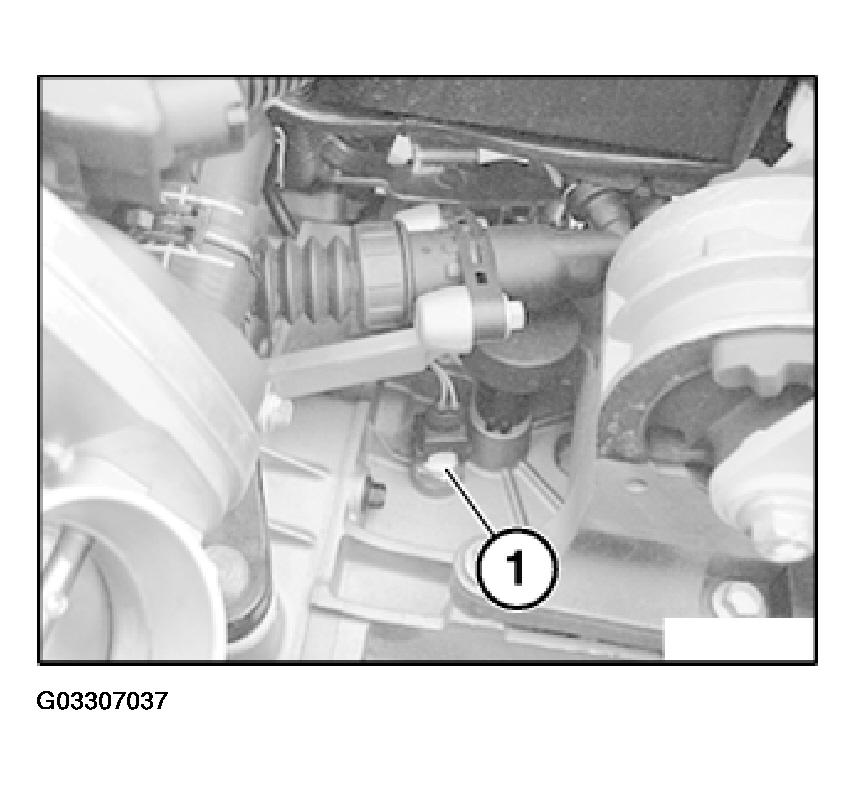

Fig 1: Identifying Reverse Lamp Switch

Courtesy of BMW OF NORTH AMERICA, INC.
