61 4 380 Measuring box, 105-pin, complete

Minimum set: Measuring and testing equipment

Note: For connecting all adapter cables with 61-pin to 105-pin plug connections.

Series: E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, R50, R52, R53, RR1.

Storage location: G 110, S 205, U 202, U 205.

SI number: 2 04 01 (710).

Order number: 61 4 380  .

Measuring box, 105-pin, complete.

Consisting of:

1. = 61 4 381 Measuring box, 105-pin.

   Note: Without accessories.

2. = 61 4 382 Test lead, black.

   Note: 2 mm system, lead length: 750 mm.

3. = 61 4 383 Test lead, red.

   Note: 2 mm system, lead length: 750 mm.

4. = 61 4 384 Test lead set.

   Note: 2/4 mm system, lead length: 200 mm.

5. = 61 4 385 Earth/ground cable.

Note: For shield pick-off, lead length: 1.5 m.

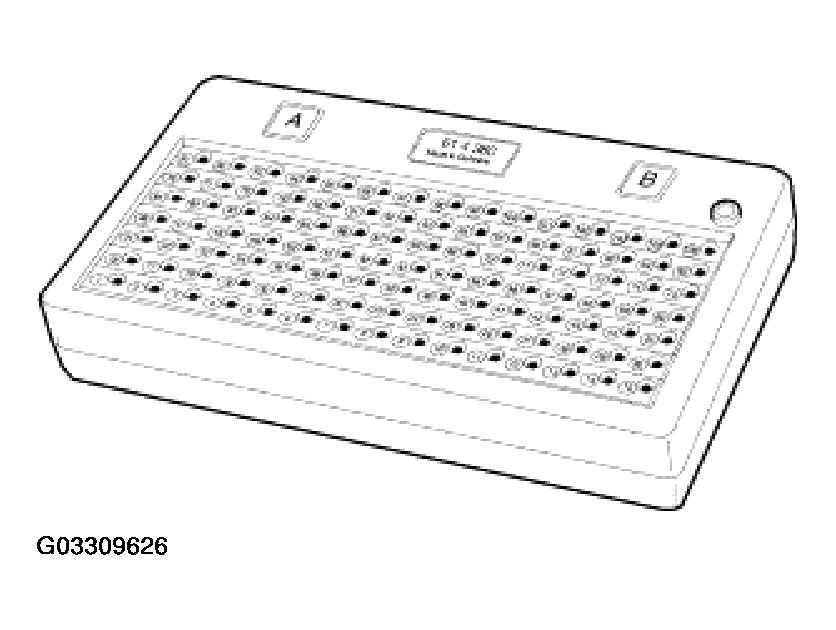

Fig 1: Identifying Special Tool 61 4 380 Measuring Box, 105-Pin

Courtesy of BMW OF NORTH AMERICA, INC.
