61 4 320 Crimping set with pliers

Minimum set: Measuring and testing equipment

Note: For optical fibres and cable repair.

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E65, E66, E67, E85, R50, R53, RR1.

SI number: 1 14 01 (766).

Order number: 61 4 320  .

Crimping set with pliers.

Consisting of:

1. = 61 4 321 Pliers without crimping head.
2. = 61 4 322 Crimping head.

   Note: For stripping insulation and cutting fiber optic cable to length.

3. = 61 4 323 Crimping head.

   Note: For crimping fiber optic cable contacts.

4. = 61 4 324 Crimping head.

   Note: For crimping MQS contacts.

5. = 61 4 325 Crimping head.

   Note: For crimping MPQ contacts.

6. = 61 4 326 Substitute blade.

   Note: For face-cutting fiber optic cables.

7. = 61 4 327 Substitute blade.

Note: With tool for replacing blade in cable stripping unit

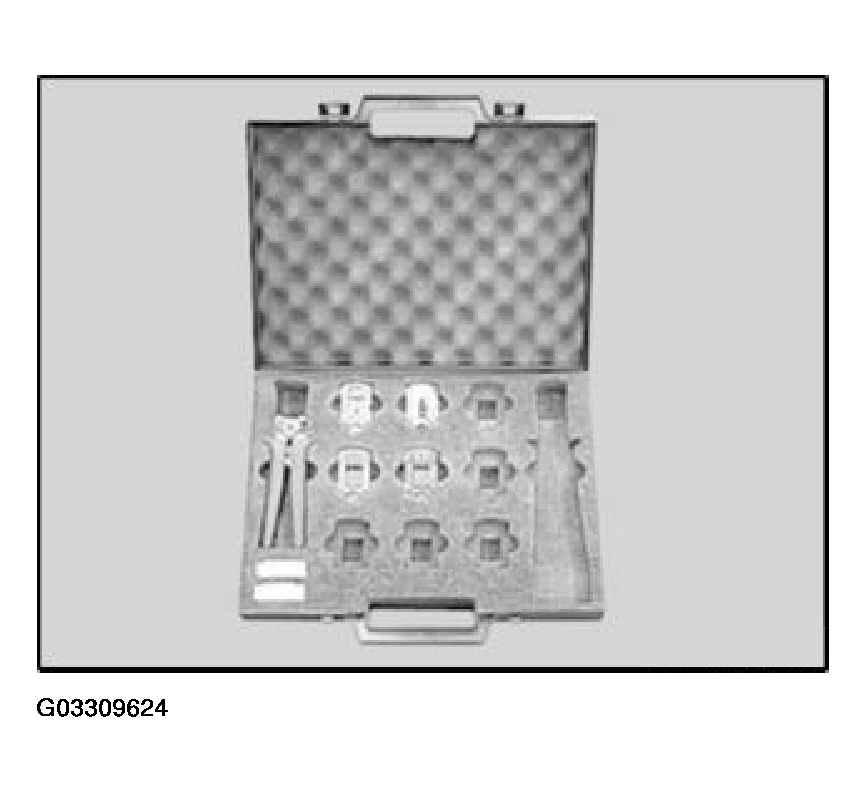

Fig 1: Identifying Special Tool 61 4 320 Crimping Set With Pliers

Courtesy of BMW OF NORTH AMERICA, INC.
