61 62 030 Replacing (removing and installing) wiper arm for rear window wiper (up to 07/2004)
NOTE:
For Special Tool identification, see GENERAL ELECTRICAL SYSTEM - SPECIAL TOOLS - COOPER (1.6L) R50/W10 .
Special Tools Required:
- 61 6 210
Open protective cap with integrated spray nozzle (1) to expose nut.
Release nut on wiper arm.
Tightening torque, refer to 61 62 1AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUE - COOPER (1.6L) R50/W10 .

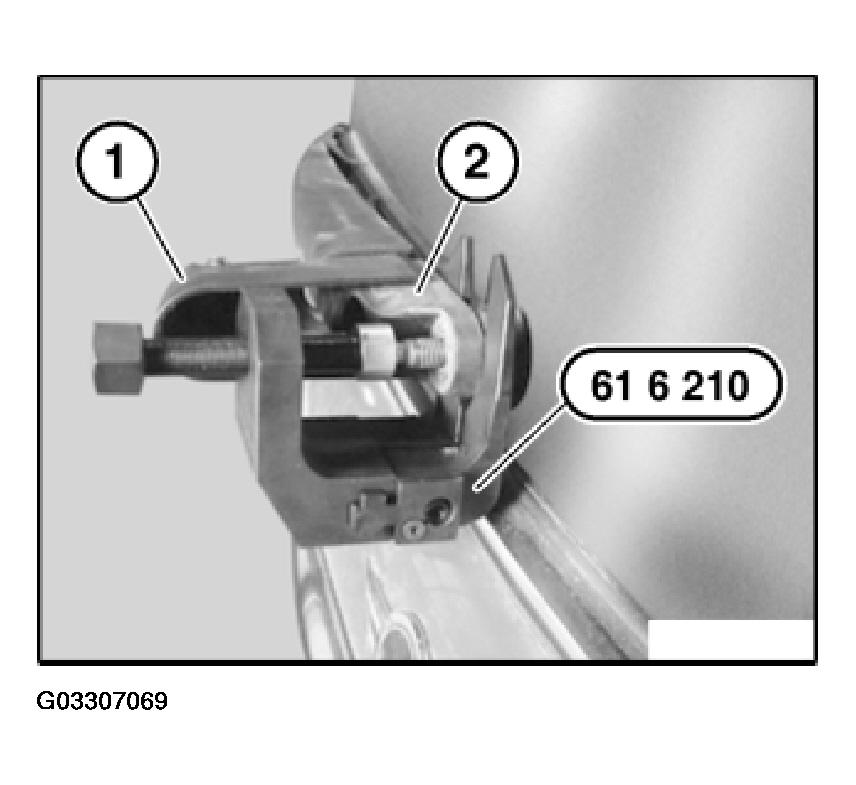

Press off wiper arm (2) with special tool 61 6 210.

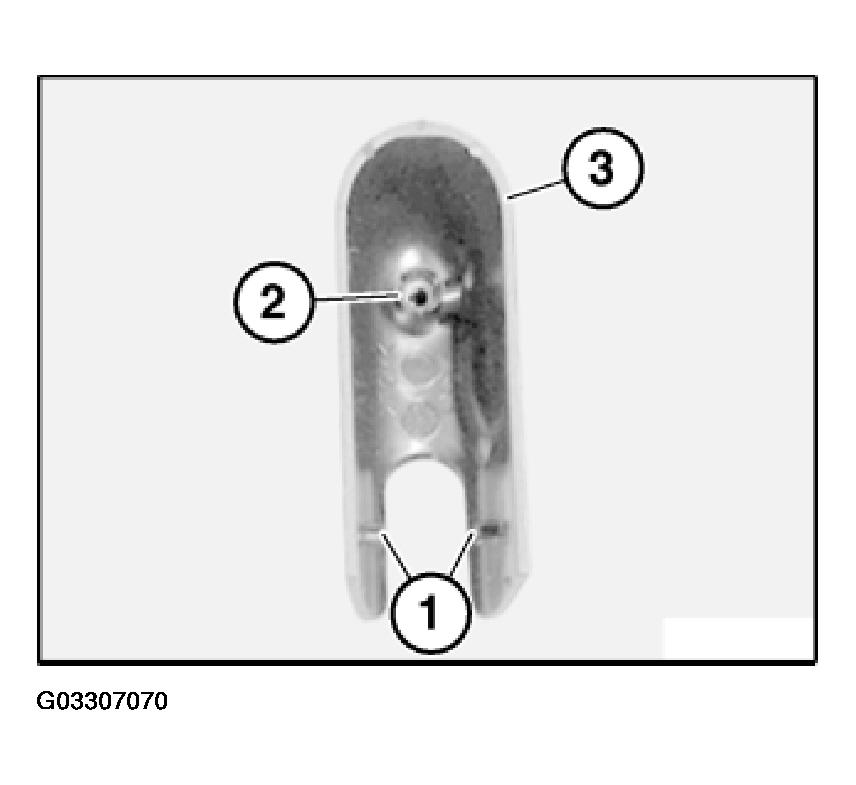

Engagement tongues (1) and inlet of spray nozzle (2) in protective cap (3) must not be damaged.
Installation:
Rear window wiper must be in rest position.

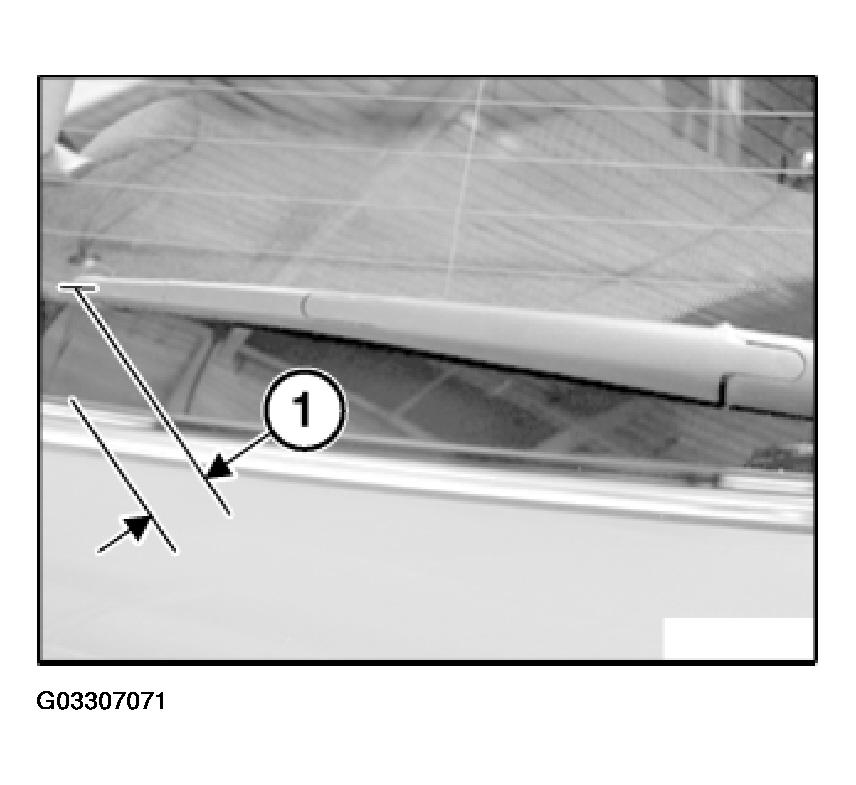

Adjust distance (1) between wiper arm and rear window edge.
- 44 mm.
Replacement:
Remove and install rear window wiper blade. Refer to 61 62 020 REMOVING AND INSTALLING/REPLACING REAR WIPER BLADE .
