61 62 020 Removing and installing/replacing rear wiper blade

Raise wiper arm from rear windscreen.

Press wiper blade in direction of arrow to release blade from wiper arm.

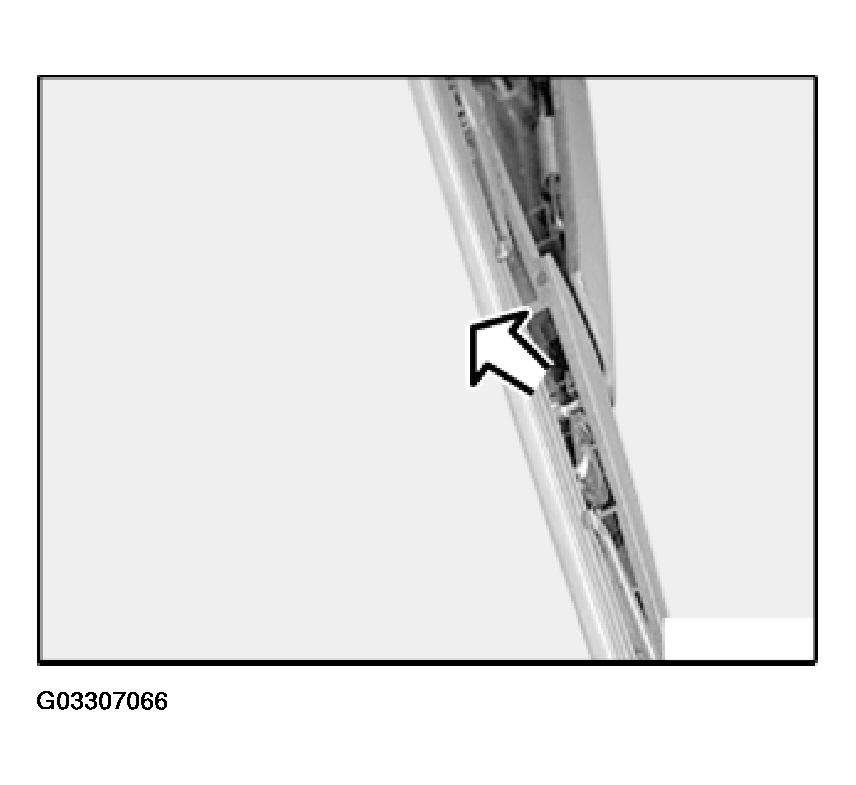

Fig 1: Releasing Blade From Wiper Arm
G03307066Courtesy of BMW OF NORTH AMERICA, INC.
