61 33 000 Replacing horn (anti-theft alarm system)

Release nuts (1), tightening torque, refer to 61 35 2AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUE - COOPER (1.6L) R50/W10 .

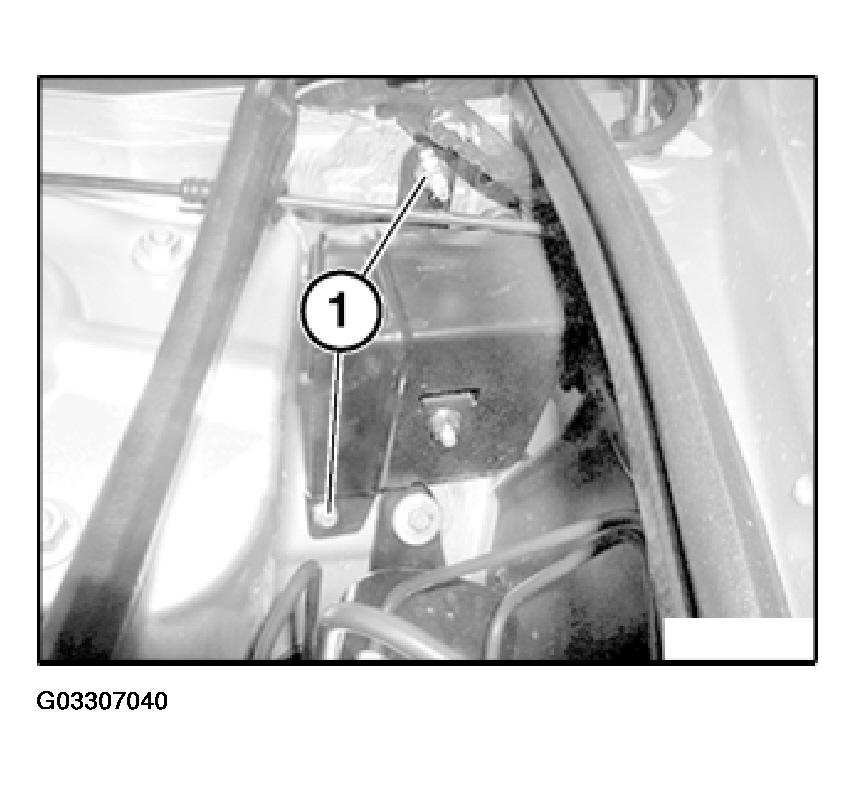

Fig 1: Identifying Horn Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

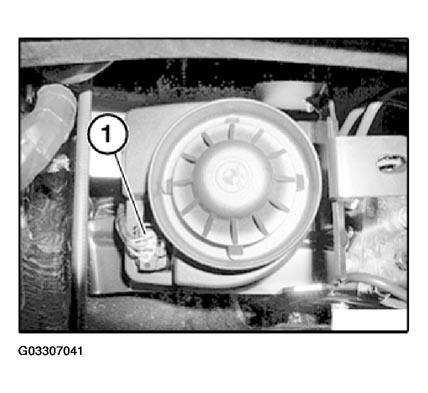

Fig 2: Locating Plug Connection On Horn

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1), tightening torque, refer to 61 35 3AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUE - COOPER (1.6L) R50/W10 .

Remove horn (2) from holder.

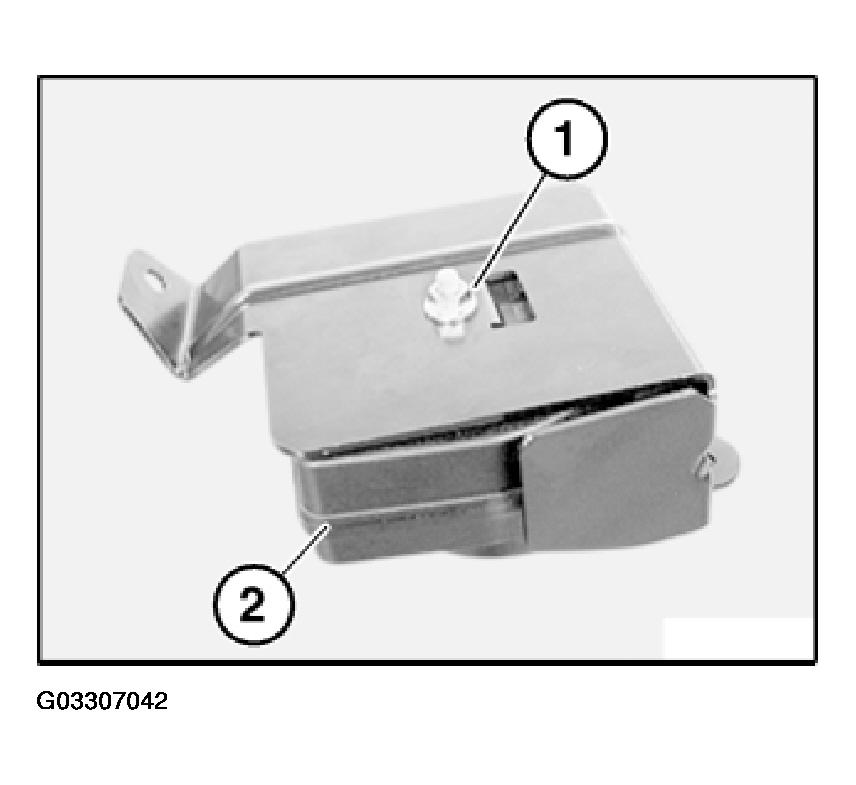

Fig 3: View Of Horn In Holder

Courtesy of BMW OF NORTH AMERICA, INC.
