67 62 000 Removing and installing/replacing flat motor for front left or right power window

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS - COOPER (1.6L) R50/W10 .

Special Tools Required:

00 9 318

Necessary Preliminary Tasks:

Remove power window unit in front door. Refer to 51 33 000 REMOVING AND INSTALLING (REPLACING) .

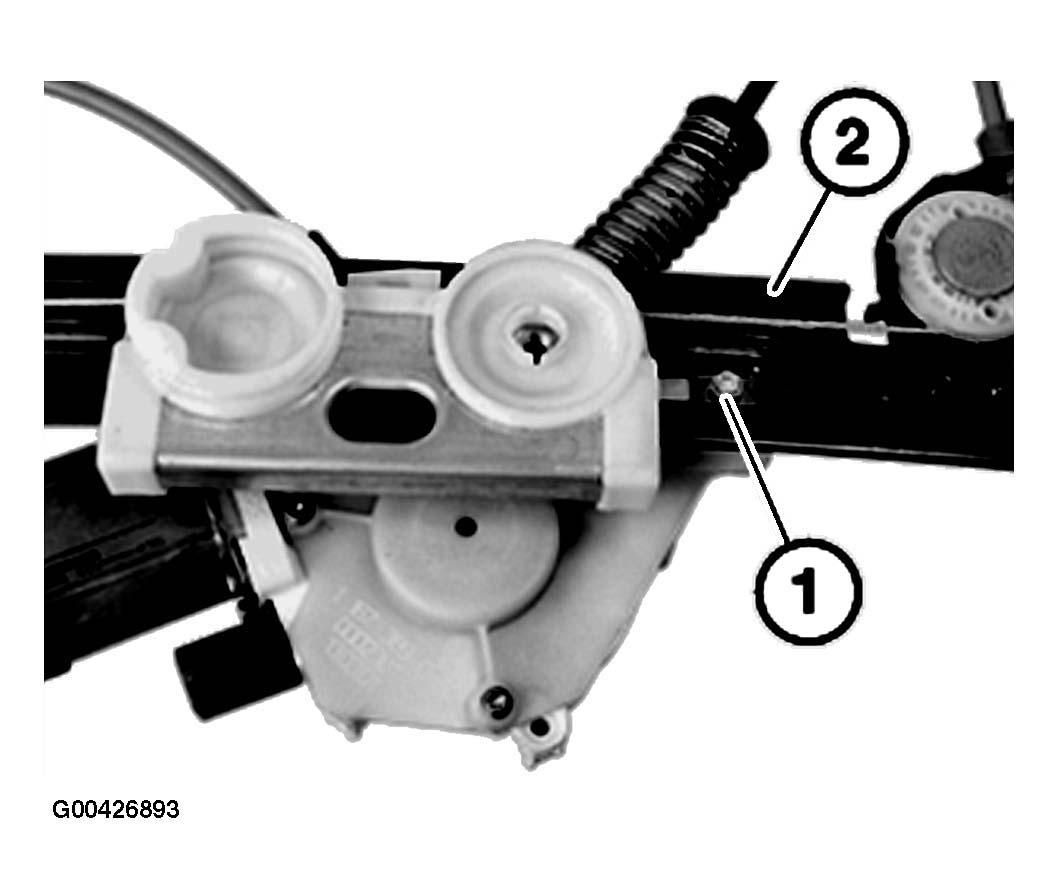

Release screw (1).

Remove flat motor from window lift rail (2).

Fig 1: Identifying Flat Motor On Lift Rail

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage! Follow the work step set out below as closely as possible to avoid damaging the power window unit. Guide wheel (3) must not be pulled out of mounting plate (4). Power window unit must be replaced in this event!

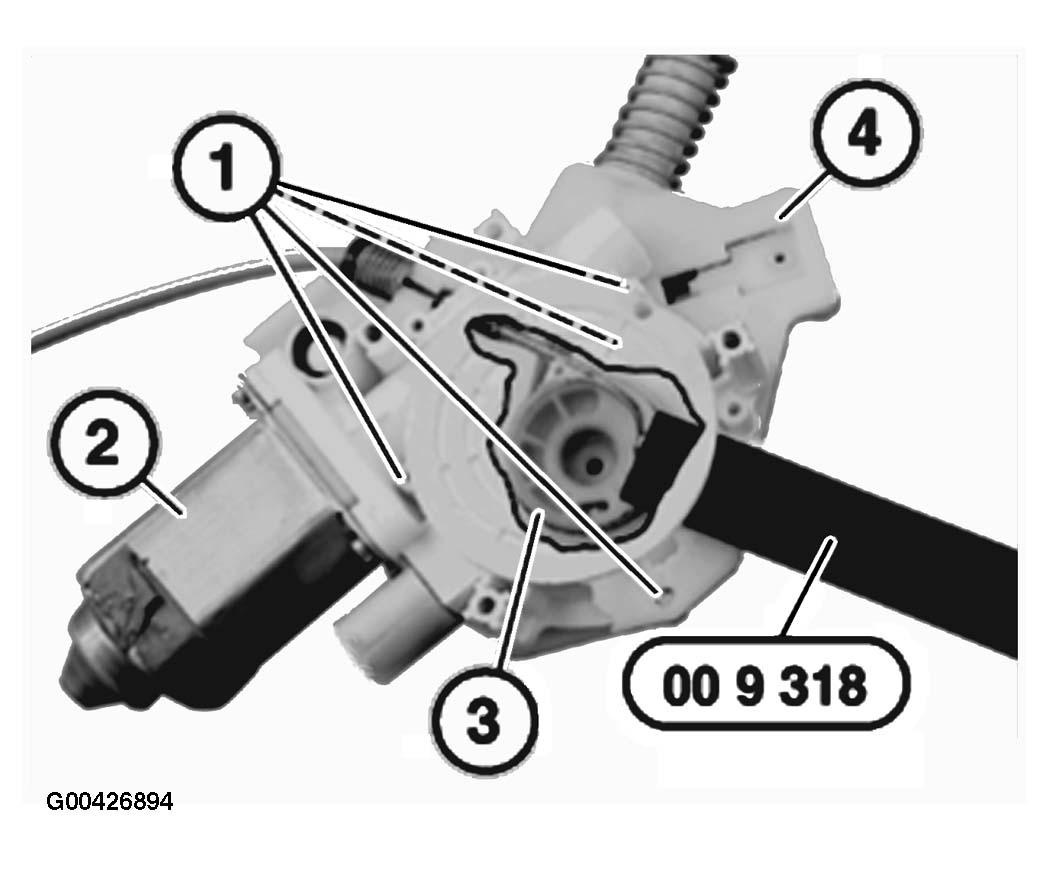

Slacken screws (1) max. 5 mm (do not release fully!).

Slide in special tool 00 9 318 between flat motor (2) and mounting plate (4).

Fig 2: View Of Guide Wheel In Mounting Plate

Courtesy of BMW OF NORTH AMERICA, INC.

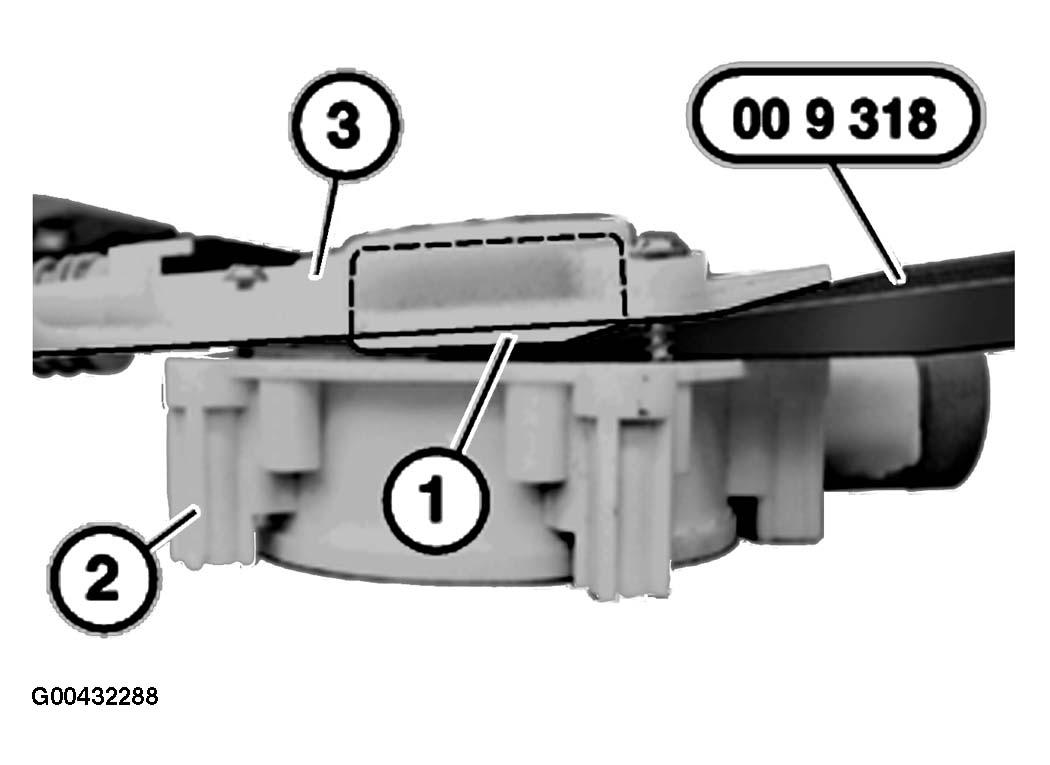

Press special tool 00 9 318 against deflection wheel (1) into mounting plate (3).

Unfasten screws.

Carefully lift flat motor (2) off mounting plate (3).

Fig 3: Removing Flat Motor Using Wedge

Courtesy of BMW OF NORTH AMERICA, INC.
