51 24 065 Removing and installing/replacing Bowden cable for manual rear lid unlocking

Necessary Preliminary Tasks:

• Remove side trim panel at rear right. Refer to 51 43 002 REMOVING AND INSTALLING REAR LEFT OR RIGHT SIDE TRIM PANEL .
• Disconnect Bowden cable for manual rear lid lock unlocking. Refer to 51 24 100 REMOVING AND INSTALLING/REPLACING REAR LID LOCK (LOWER SECTION) .

Removing Bowden Cable For Manual Rear Lid Unlocking:

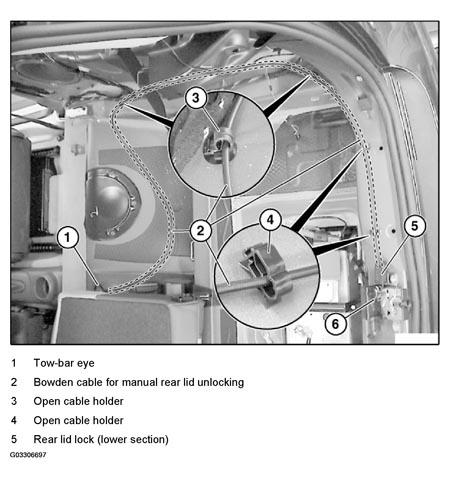

Fig 1: Identifying Rear Lid Lock Components

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip Bowden cable nipple (2) from tow-bar eye (1).

Lever Bowden cable (3) out of holder (4) and feed out.

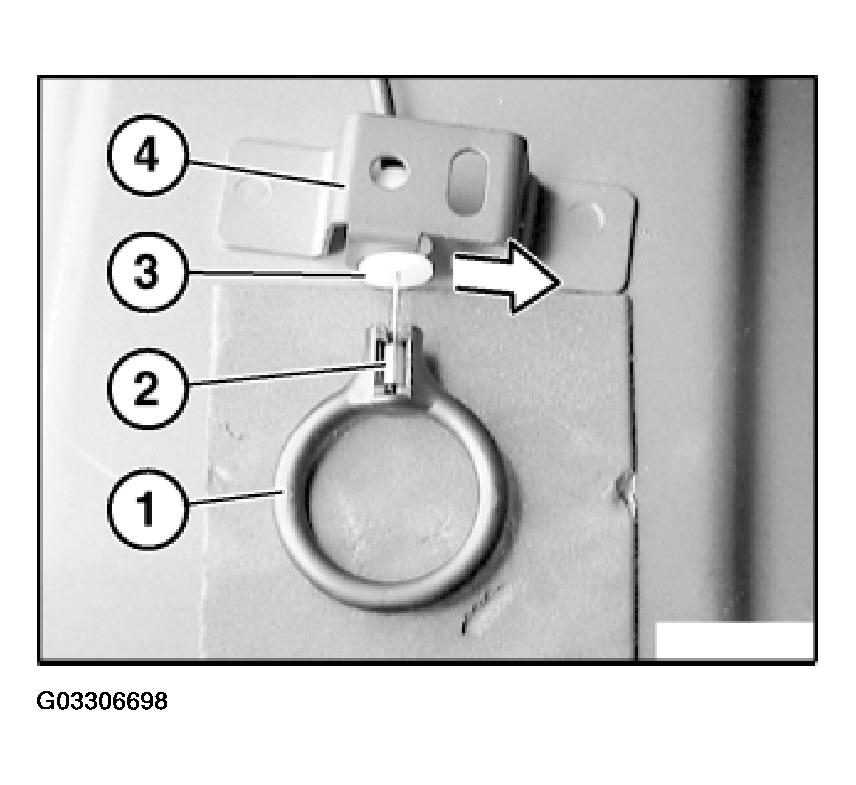

Fig 2: Identifying Bowden Cable Nipple And Tow-Bar Eye

Courtesy of BMW OF NORTH AMERICA, INC.
