51 13 301 Removing and installing/replacing finisher - roof panel - side

Release door seal.

Remove screws (1).

Starting at rear, release finisher by pulling in direction arrows show.

Slide finisher forward to release front edge from clip.

Remove finisher.

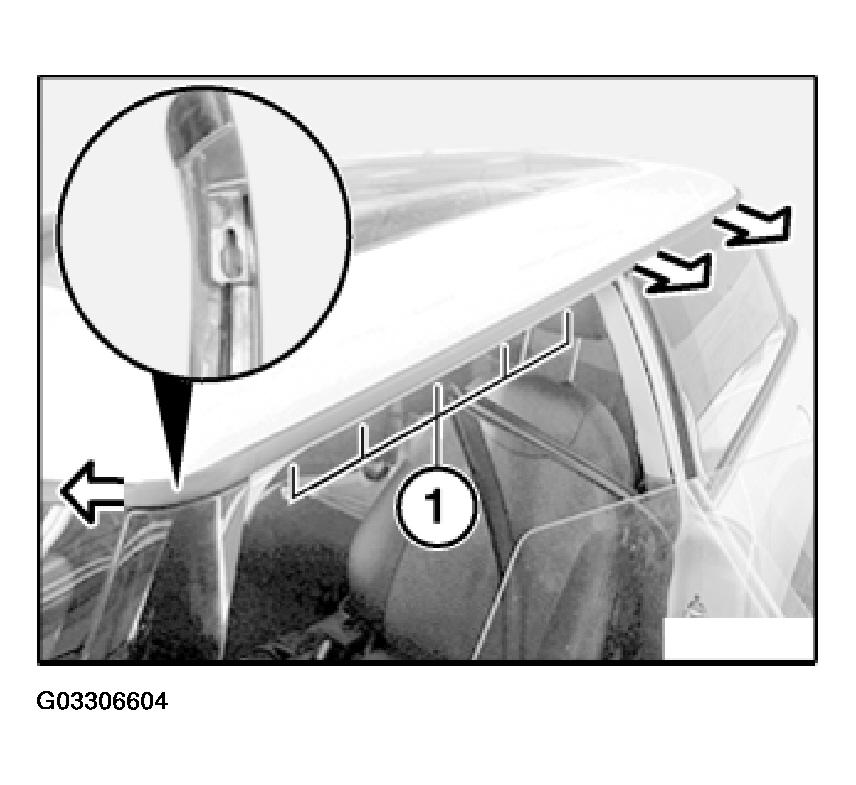

Fig 1: Locating Retaining Screws For Finisher

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, refer to 51 13 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .
