51 13 102 Removing and installing/replacing side cowl panel cover strip

Remove front wheel arch trim. Refer to 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH LINER .

Release retaining clips (1).

Installation:

Make sure damaged retaining clips are replaced prior to installation.

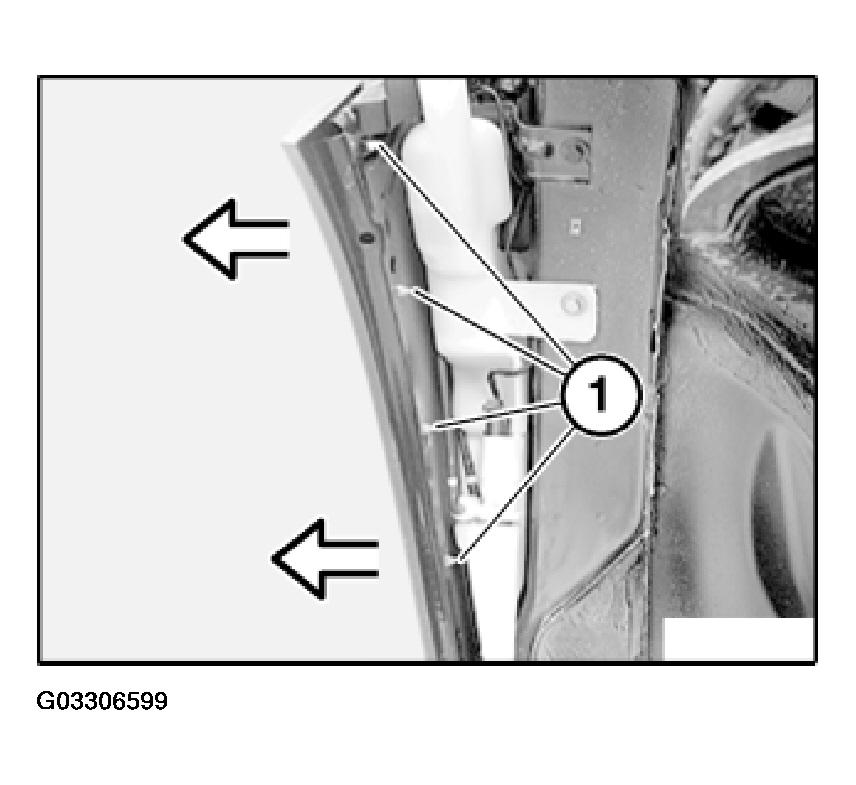

Fig 1: Releasing Retaining Clips
G03306599Courtesy of BMW OF NORTH AMERICA, INC.
