51 45 055 Removing and installing/replacing airbag cover on passenger side (up to 07/04)

Necessary Preliminary Tasks:

• Remove instrument panel top section trim. Refer to 51 45 050 REMOVING AND INSTALLING INSTRUMENT PANEL TOP SECTION TRIM (UP TO 04/07) .
• If necessary, remove storage compartment. Refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVEBOX  and 51 16 390 REMOVING AND INSTALLING/REPLACING INSTRUMENT PANEL TRIM STORAGE TRAY (PASSENGER SIDE) .
• If necessary, open cover for glovebox.

Release screws (1).

Feed rod (2) out of retaining straps (3).

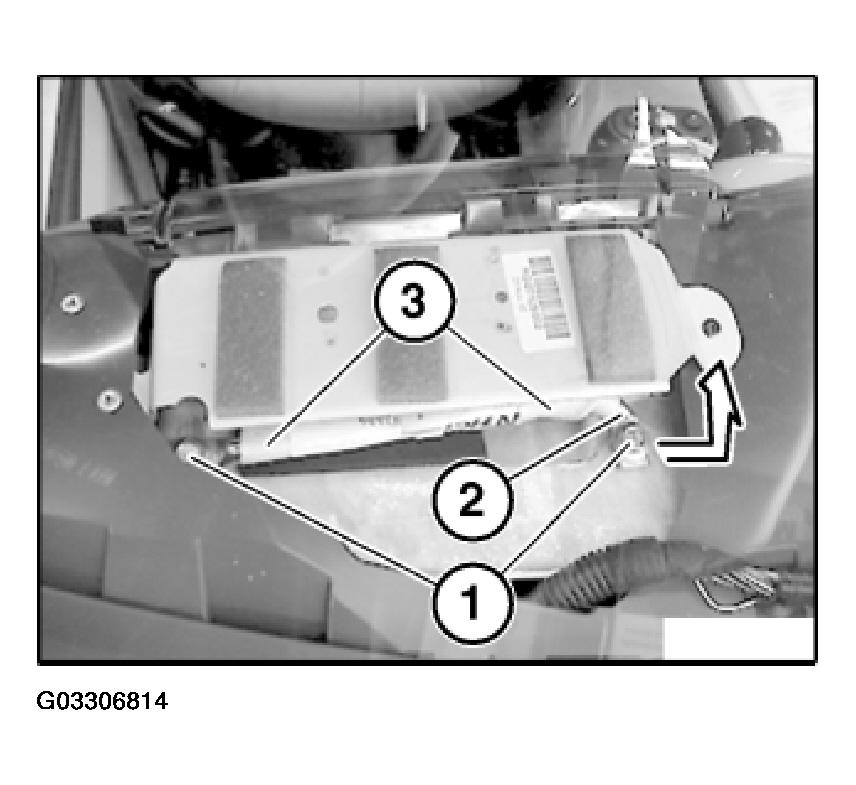

Fig 1: Identifying Rod In Retaining Straps

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1 and 2).

Remove airbag cover on passenger side.

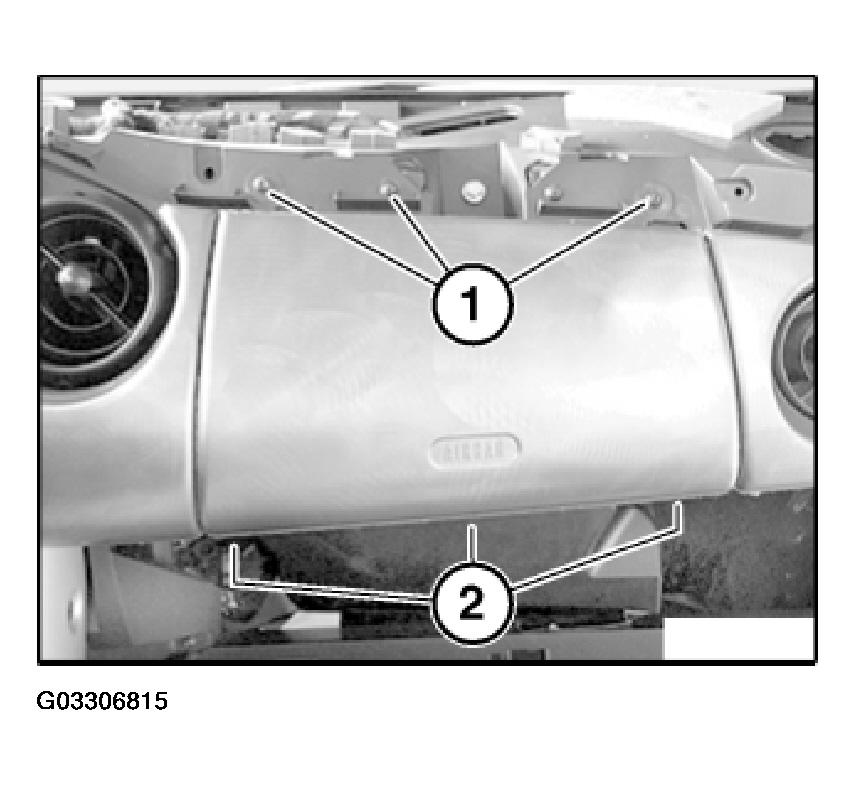

Fig 2: View Of Airbag Cover On Passenger Side

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Following parts of airbag cover (5) on passenger side must not be damaged or missing:

1. Retaining straps.
2. Plastic nuts.
3. Breaking pieces.
4. Catches.

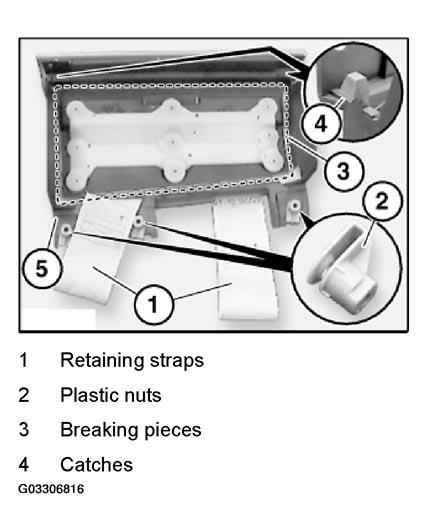

Fig 3: Identifying Parts Of Airbag Cover On Passenger Side

Courtesy of BMW OF NORTH AMERICA, INC.
