51 23 100 Removing and installing/replacing right engine hood/bonnet lock

Release engine hood/bonnet contact on underside and remove in direction of arrow.

Remove screws (1).

Release outer sleeve of Bowden cable from lock (2).

Remove Bowden cable from lock (3).

Remove lock.

Installation:

Adjust hood/bonnet lock. Refer to 51 23 004 ADJUSTING ENGINE HOOD/BONNET LOCK .

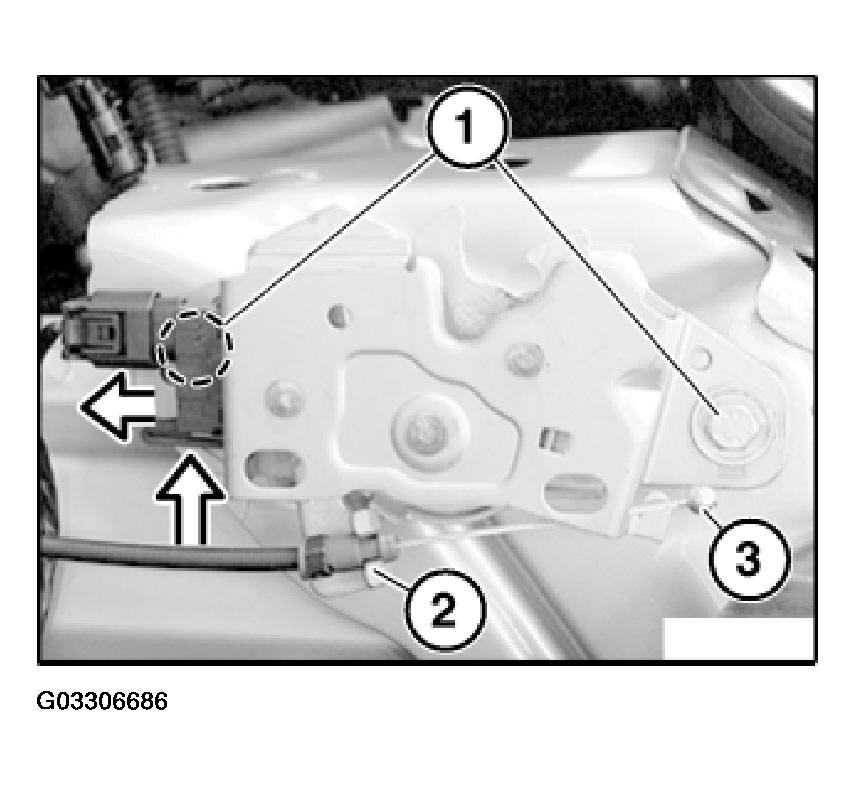

Fig 1: View Of Bowden Cable From Lock

Courtesy of BMW OF NORTH AMERICA, INC.
