51 23 004 Adjusting engine hood/bonnet lock

Position Of Engine Hood/Bonnet Striker Plate:

Ideal adjustment:

The engine hood/bonnet striker plate must be correctly positioned on both sides, as shown in the picture.

To check on the left side, unhook the safety arrester hook.

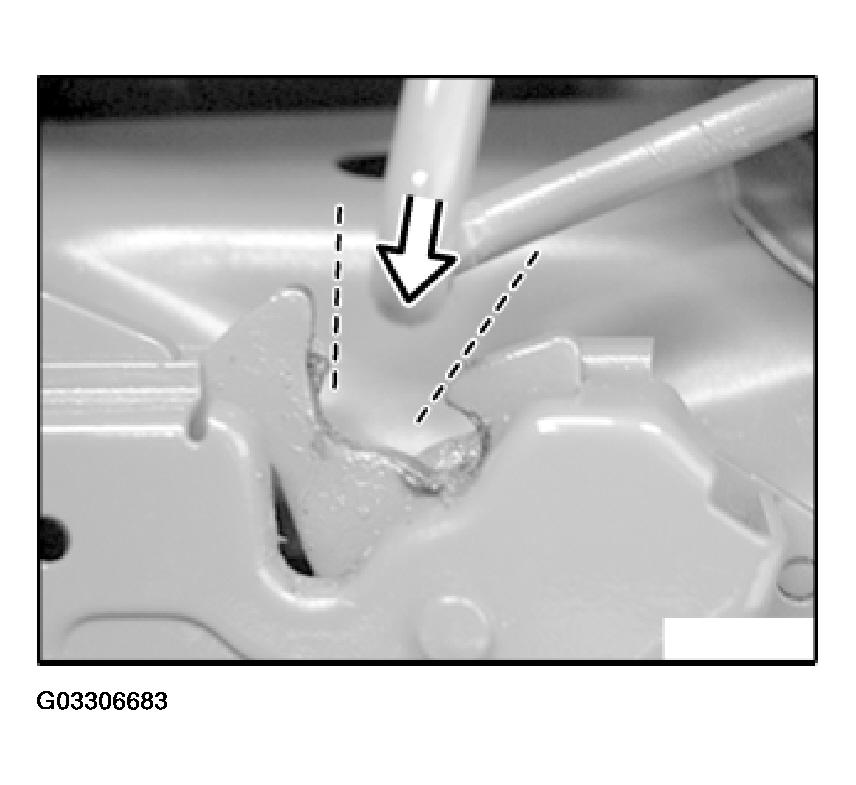

Fig 1: View Of Engine Hood/Bonnet Striker Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting:

Unfasten screws (1).

Slide lock in required direction.

Tighten down screws.

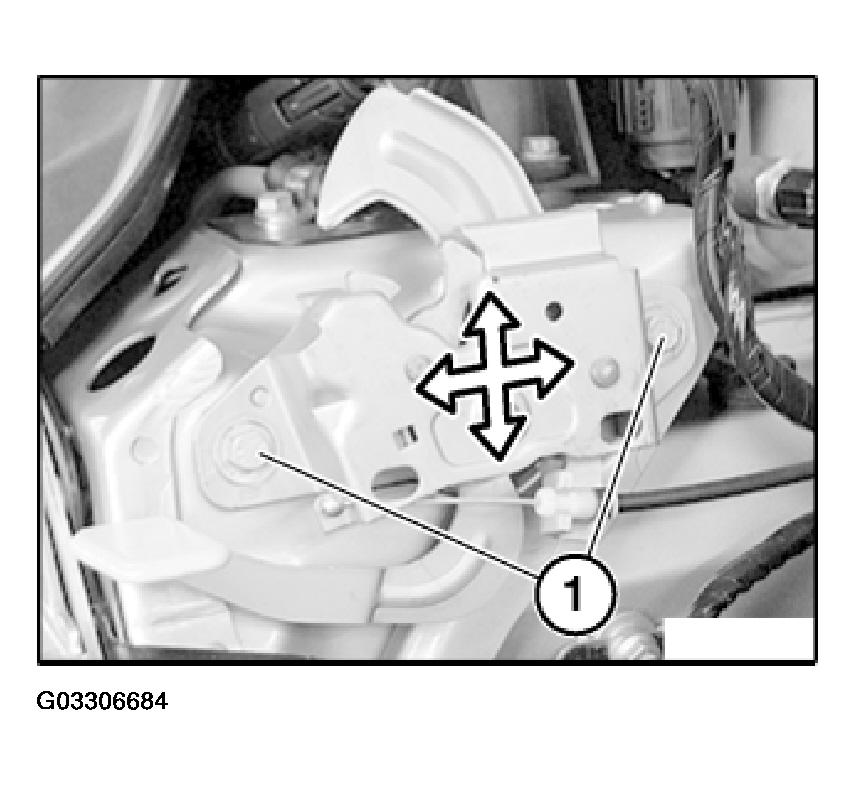

Fig 2: Locating Engine Hood/Bonnet Lock Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release engine hood/bonnet contact on underside and remove in direction of arrow.

Unfasten screws (1).

Slide lock in required direction.

Tighten down screws.

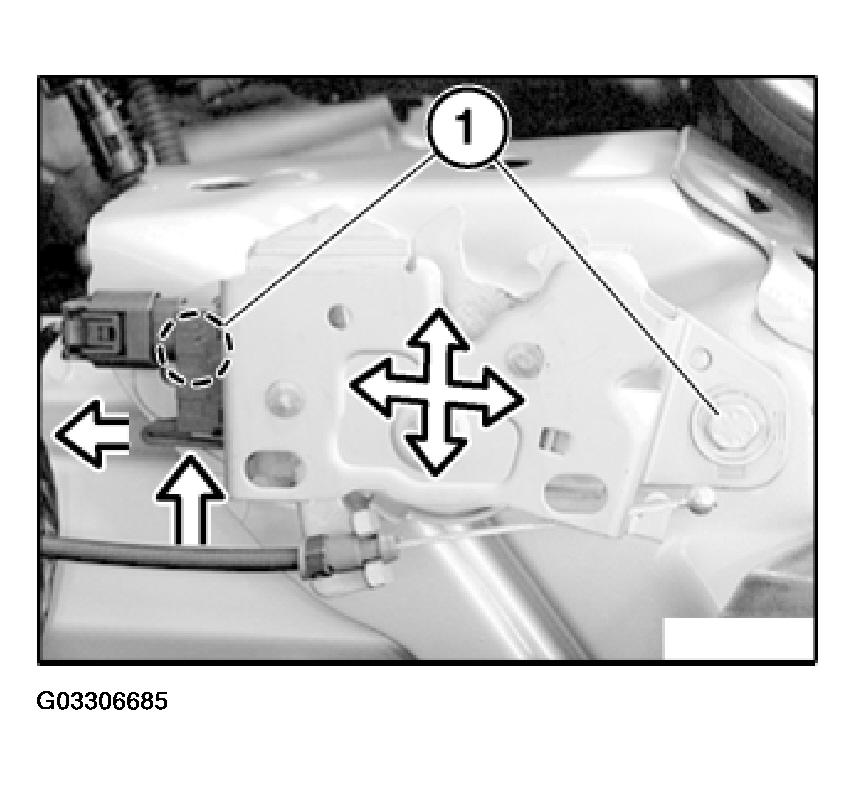

Fig 3: Identifying Engine Hood/Bonnet Contact

Courtesy of BMW OF NORTH AMERICA, INC.

Check adjustment, refer to appropriate article about position of engine hood/bonnet striker plate - ideal adjustment.

Repeat procedure until ideal setting is reached.

Gap Dimension, Engine Hood/Bonnet/Bumper:

Adjust engine hood/bonnet/bumper gap.

Tighten down screws when the correct position is reached.
