51 41 060 Removing and installing/replacing armrest on left or right front door (up to 09/2002)
Necessary Preliminary Tasks:
- Remove door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING FRONT LEFT OR RIGHT DOOR TRIM PANEL .
NOTE:
Size of Torx head = T8H.
A small mirror will help you to locate the screws.

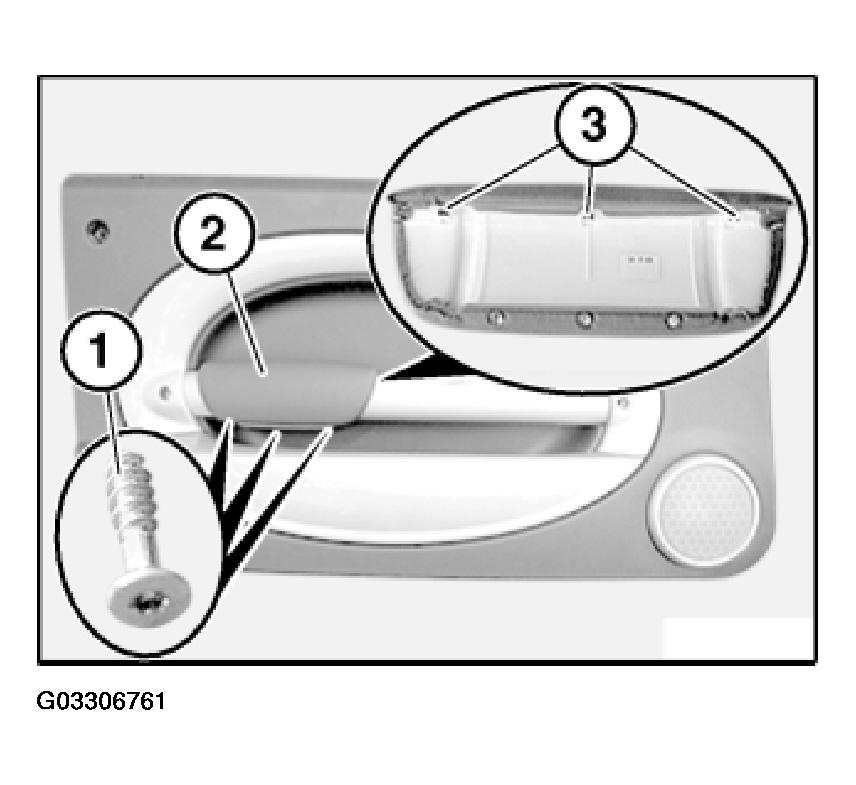

Release screws (1) on reverse side of armrest padding (2).
Release clips (3) and remove armrest padding (2).
