65 24 ... Removing and installing/replacing diversity antenna amplifier (BMW Business/MINI Boost radio from 07/2004)

Necessary Preliminary Tasks:

• Remove trim for rear lid at bottom. Refer to 51 49 005 REMOVING AND INSTALLING/REPLACING TRIM FOR LOWER REAR LID .

Disconnect plug connection (1).

Release screws (2) and remove aerial/antenna amplifier (3).

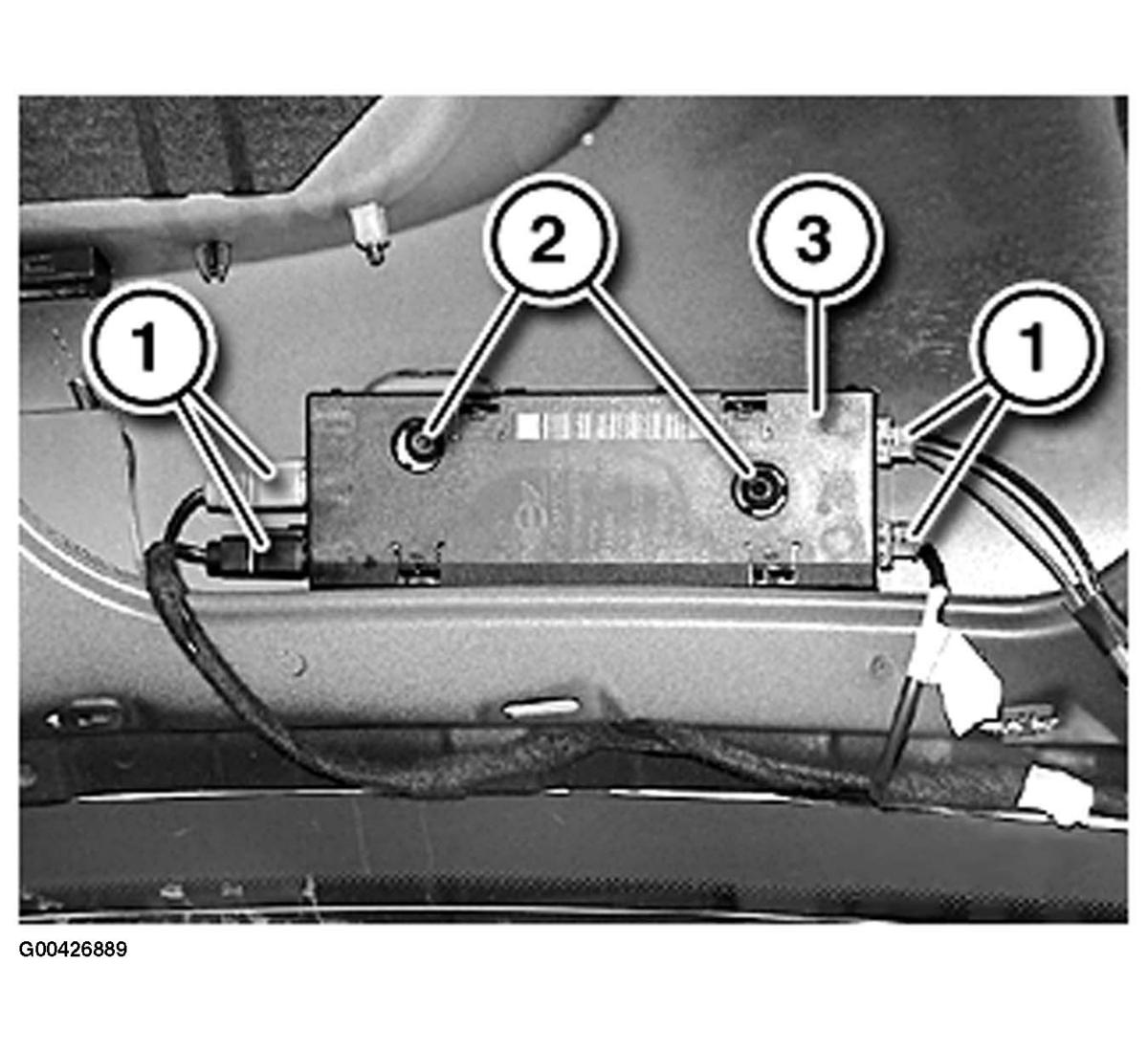

Fig 1: Locating Amplifier Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.
