65 75 565 Removing and installing/replacing ultrasound module

Remove ultrasound module housing (1) and disconnect multiplug.

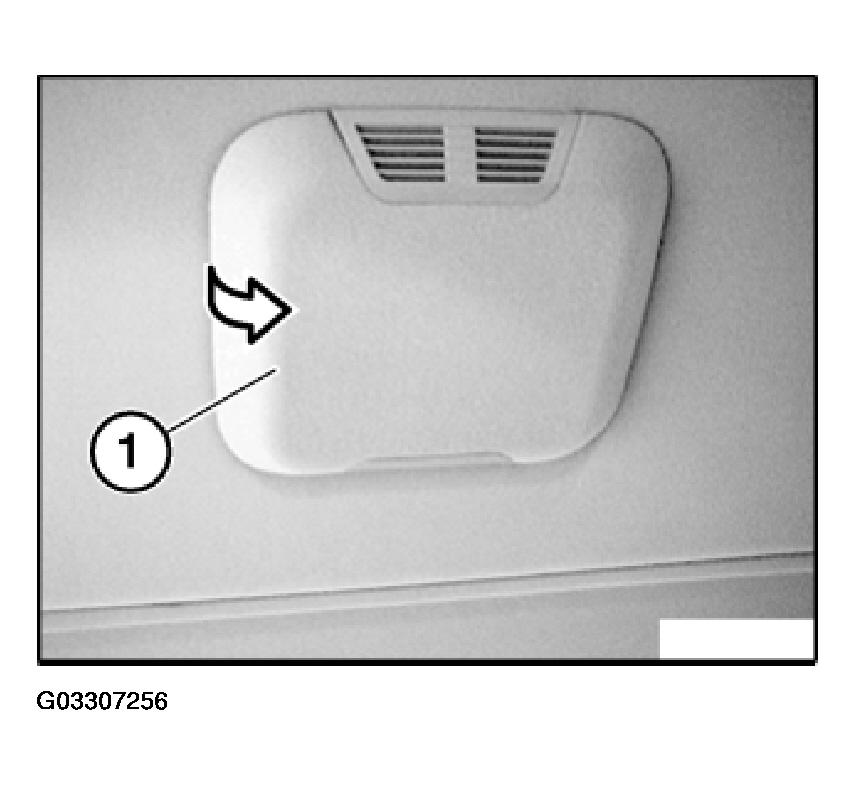

Fig 1: Removing Ultrasound Module Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Lever out retaining clips (1) and remove ultrasound module (2).

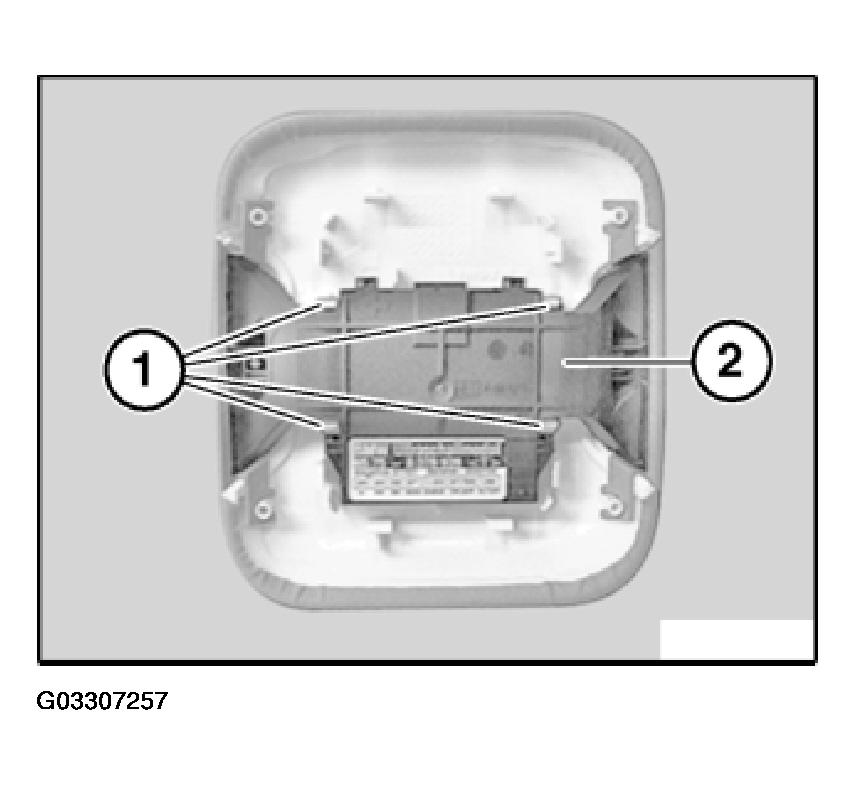

Fig 2: Identifying Ultrasound Module Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.
