65 77 551 Removing and installing (replacing) impact sensor for left or right side airbag
WARNING:
Comply with airbag safety regulations. Incorrect handling can activate airbag and cause injury. Refer to AIR BAG SAFETY PRECAUTIONS
for model year 2002, or AIR BAG SAFETY PRECAUTIONS
for model year 2003, or AIR BAG SAFETY PRECAUTIONS
for model years 2004-05.
Necessary Preliminary Tasks:
- Turn ignition key to "0" position
- Remove rear seat. Refer to 52 26 005 REMOVING AND INSTALLING OR REPLACING REAR SEAT
- Detach front edge of rear side trim panel to provide access to impact sensor. Refer to 51 43 002 REMOVING AND INSTALLING REAR LEFT OR RIGHT SIDE TRIM PANEL .

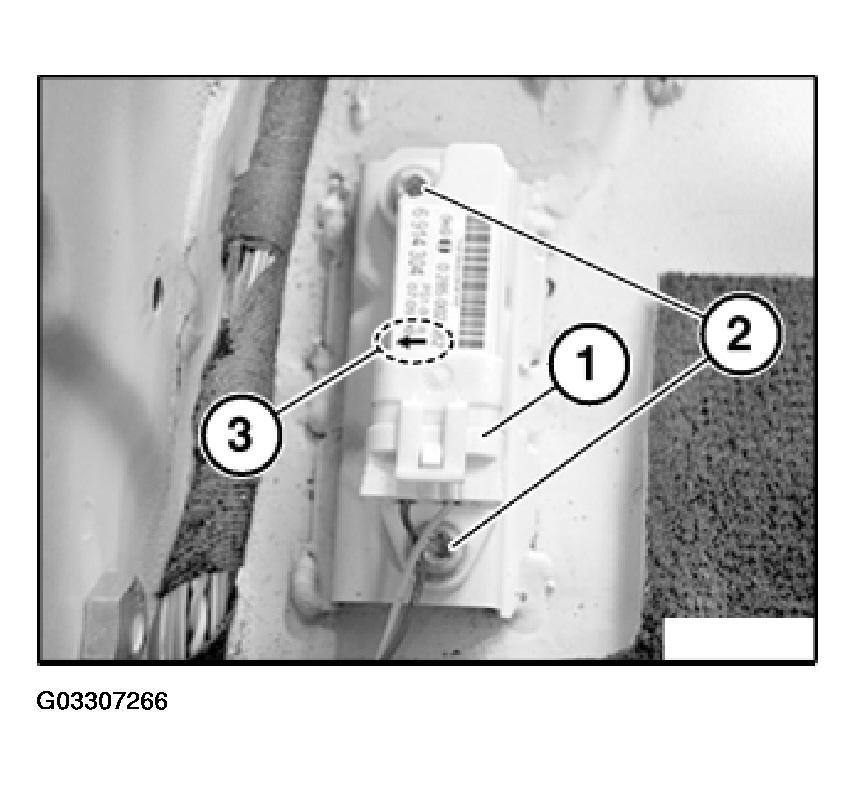

Disconnect plug connection (1).
Loosen screws (2).
Tightening torque, refer to 65 77 2AZ in AUDIO, NAVIGATION AND ANTI-THEFT - TIGHTENING TORQUES - Cooper (1.6L) R50/W10 .
Installation:
Make sure arrow (3) on impact sensor points to outside of car.
Replacement only:
Carry out coding/programming.
