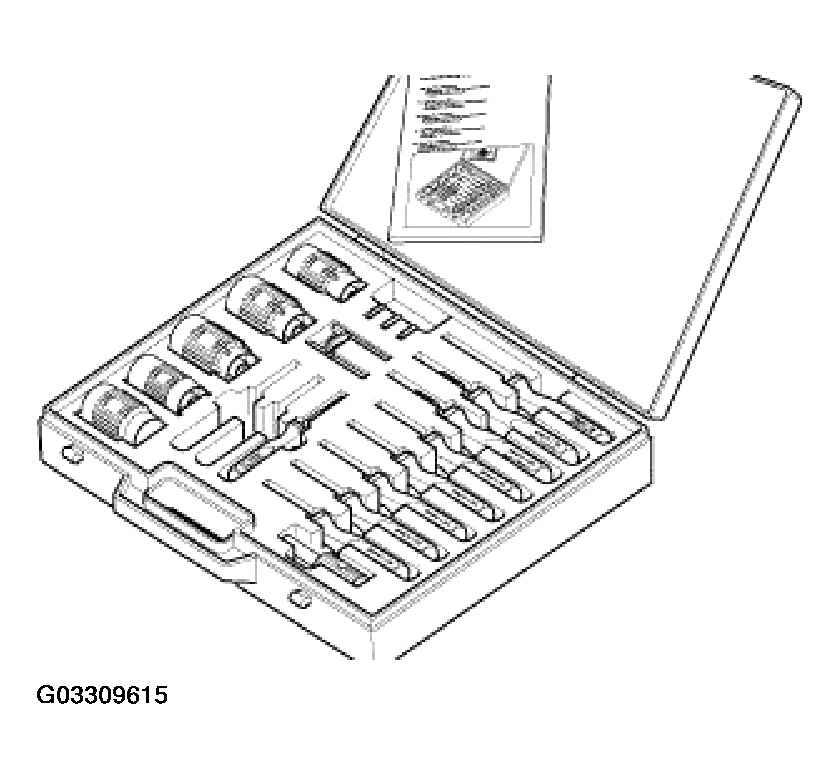

61 1 150 Releasing tool kit

Minimum set: Mechanical tools

Note: For circular connector / ejector tool - Contains the kits 61 1 130, 61 1 140 and 61 1 180.

Series: E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39, E46, E52, E53, E65, E66, E83, E85, R50, R53, RR1.

Storage location: K 106.

Order number: 61 1 150  .

Releasing tool kit.

Consisting of:

61 1 151 Pressing-out tool.

Note: For Power-Timer contacts / AMP and Bosch.

61 1 152 Pressing-out tool.

Note: For Micro-Timer contacts.

61 1 153 Release tool.

Note: For retaining tabs of relay holder.

61 1 154 Replacement sleeve dia. 1.5 mm for 61 1 139.

Note: Order number was reserved in 8/95 on delivery of case temporarily for case insert.

61 1 155 Replacement sleeve dia. 3.5 mm for 61 1 133.

61 1 156 Replacement sleeve dia. 2.5 mm for 61 1 132.

61 1 157 Replacement sleeve dia. 1.5 mm for 61 1 131.

61 1 158 Case with insert.

61 1 159 Operating instructions.

61 1 131 Pressing-out tool.

Note: For 1.5 mm round contacts.

61 1 132 Pressing-out tool.

Note: For 2.5 mm round contacts.

61 1 133 Pressing-out tool.

Note: For 3.5 mm round contacts.

61 1 134 Pressing-out tool.

Note: For mini flat spring contacts.

61 1 135 Pressing-out tool.

Note: For standard flat spring contacts.

61 1 136 Pressing-out tool.

Note: For Power-Timer contacts (G & H).

61 1 137 Pressing-out tool.

Note: For Timer contacts.

61 1 138 Socket wrench.

Note: For telltale lamps (instrument cluster).

61 1 139 Pressing-out tool.

Note: Slotted sleeve for 1.5 mm dia. Kostal round contacts.

61 1 141 Release tool.

Note: For D 2.5 / ELA, 4-pin, round.

61 1 142 Release tool.

Note: For D 2.5 / ELA, 7-pin, round.

61 1 143 Release tool.

Note: For D 2.5 / ELA, 12-pin, round.

61 1 144 Release tool.

Note: For D 2.5 / ELA, 25-pin, round.

61 1 145 Release tool.

Note: For D 1.5 / ELA, 10-pin, round.

61 1 149 Replacement blades.

Note: For pressing-out tool 61 1 148.

61 1 148 Pressing-out tool for SLC.

Note: SLK = Sensor Laminated Contacts.

61 1 180 Pressing-out tool.

Note: For load current contacts This individual tool belongs to 61 1 150  .
