61 71 004 Adjusting windscreen washer nozzles

NOTE:

Special Tools Required:

Dual nozzle system:

Mark contact points with adhesive tape or felt-tip marker and actuate windscreen washer system. The jet sprays must hit the middle of these areas.

Adjustment values in mm:

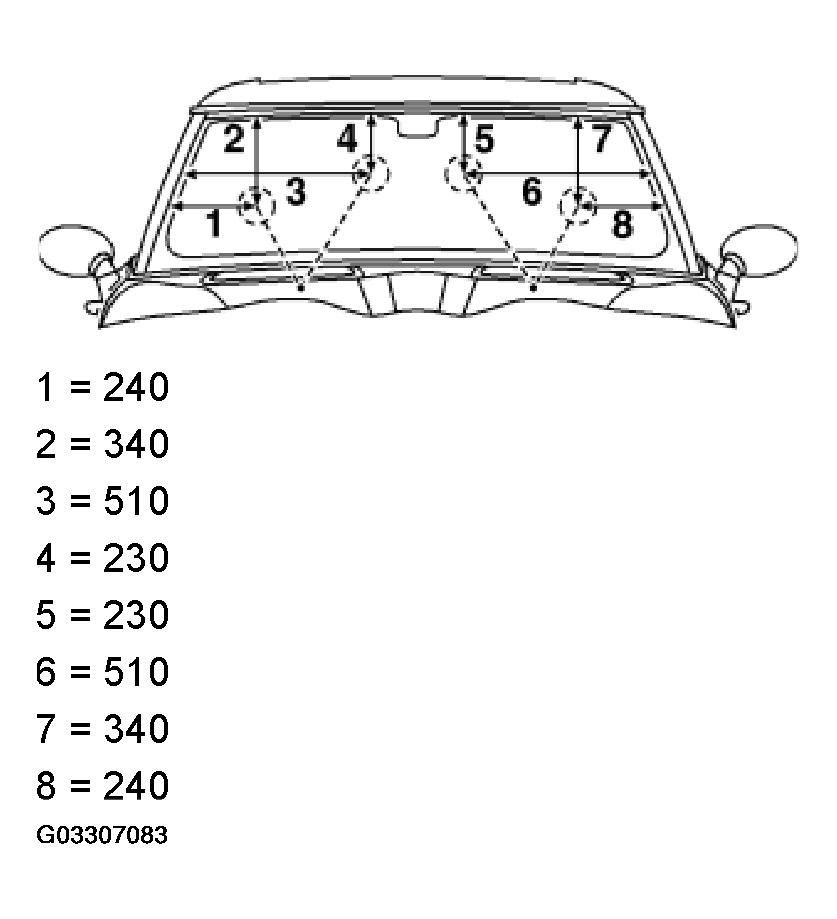

Fig 1: Identifying Contact Points Of Jet Sprays

Courtesy of BMW OF NORTH AMERICA, INC.

Mark contact point with adhesive tape.

Adjust washer nozzles with special tool 00 9 200.

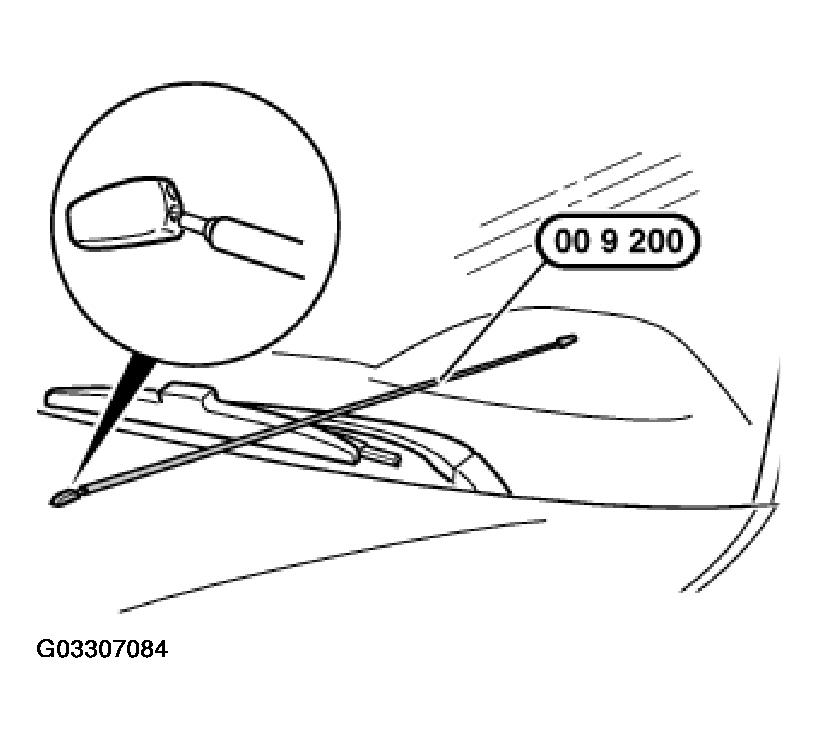

Fig 2: Adjusting Washer Nozzles With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
