Mini Cooper S

The MINI COOPER S coolant pump is driven by the supercharger via a reduction gearbox. The coolant pump is fitted directly onto the supercharger housing and is connected by a two legged dog drive.

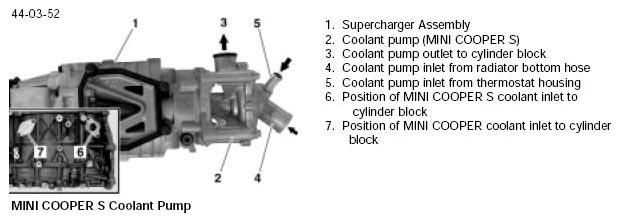

Fig 1: MINI COOPER S Coolant Pump
G04725034Courtesy of BMW OF NORTH AMERICA, INC.
