Disc Pads (Front): Removal

Detach retaining spring. See Fig 1. Remove plastic plugs. See Fig 2. Release guide screws and pull brake caliper toward rear to remove. See Fig 3. Tie up brake caliper to avoid strain on brake hose. Press piston fully back. See Fig 4. Remove outer and inner brake pads. See Fig 5. Inner brake lining is located with its spring in the piston.

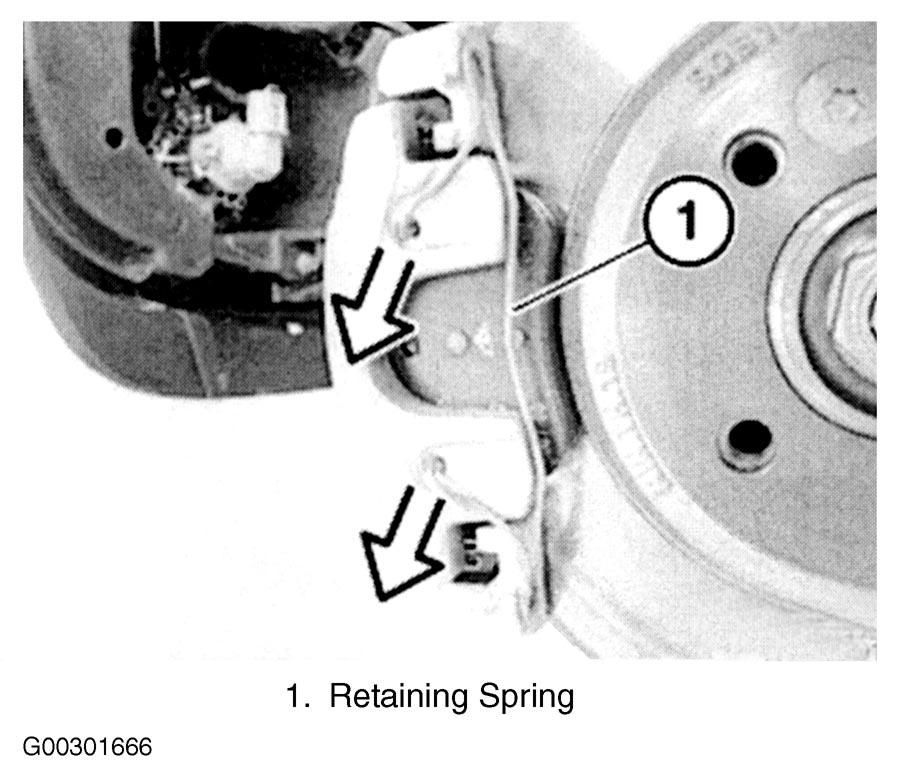

Fig 1: Detaching Retaining Spring

Courtesy of BMW OF NORTH AMERICA, INC.

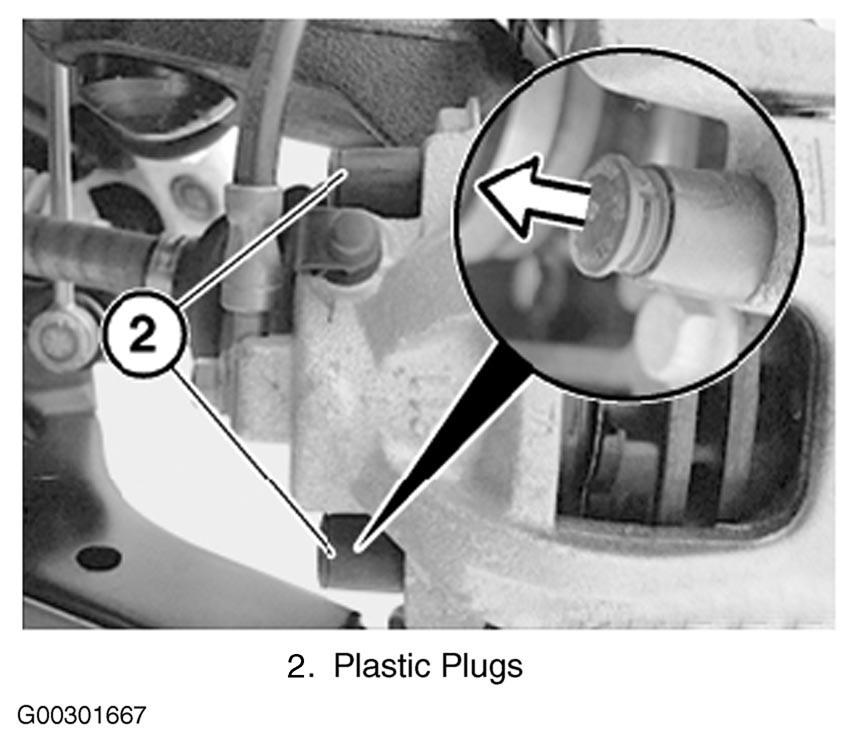

Fig 2: Removing Plastic Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

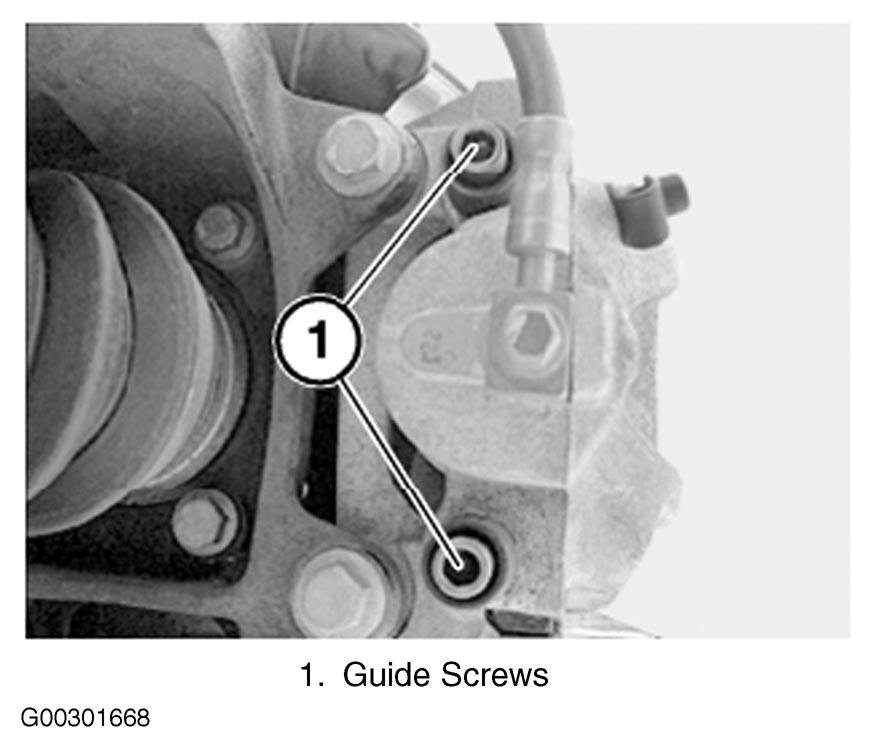

Fig 3: Identifying Guide Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Identifying Caliper Piston

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Removing Brake Pads

Courtesy of BMW OF NORTH AMERICA, INC.
