52 13 ... Removing and installing / replacing guide for left or right front seat head restraint

Necessary Preliminary Tasks:

• Remove backrest lock. Refer to 52 13 405 REMOVING AND INSTALLING / REPLACING HEAD RESTRAINT PANEL ON DRIVER'S AND FRONT PASSENGER SEATS (MANUAL / ELECTRIC SEAT ADJUSTMENT) .

Press in retaining tabs (retaining lugs) and remove guide.

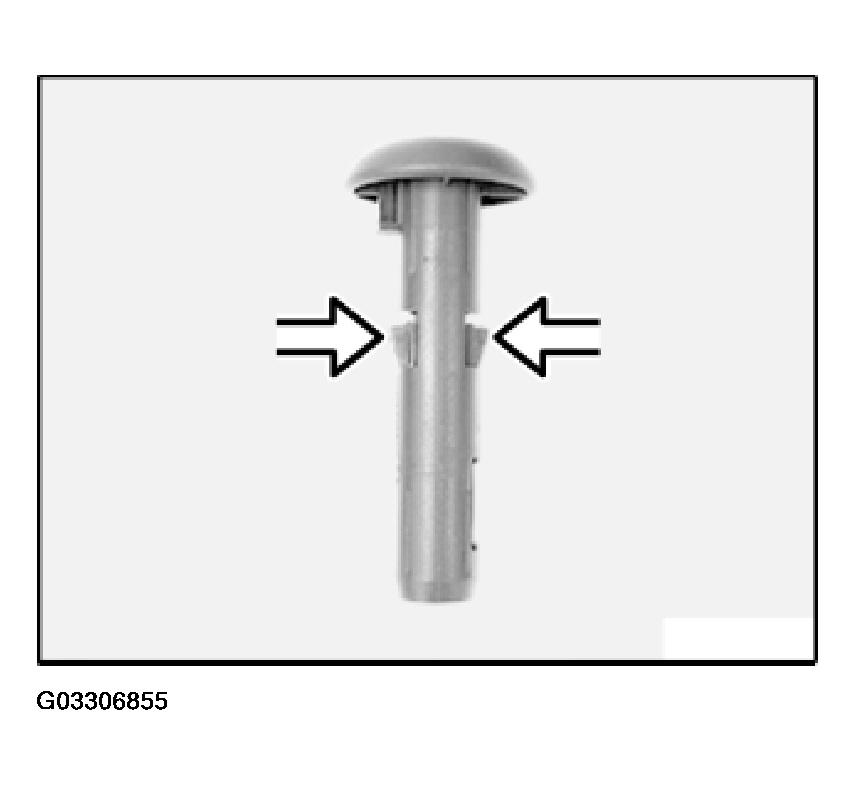

Fig 1: Locating Detent Lugs On Guide

Courtesy of BMW OF NORTH AMERICA, INC.
