A Pillar Trim

The A post trim is secured directly to the body A post by three snap fit clips. The upper two clips are designed with retaining straps. These straps retain the trim to the body in the event of AHPS deployment. This trim MUST  be replaced whenever removed.

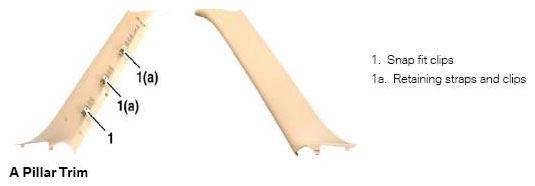

Fig 1: A Pillar Trim
G04730331Courtesy of BMW OF NORTH AMERICA, INC.
