61 0 200 Crimping set (basic tool)

Minimum set: Measuring and testing equipment

Note: Consisting of case + basic crimping tool.

SI number: 02 02 05 (194).

Order number: 61 0 200

Crimping set (basic tool).

Consisting of:

1 = 61 0 201 Plastic case.

Note: As storage system for the complete set.

2 = 61 0 202 Crimping tool.

Note: Basic tool for different matrices (crimping insert set).

3 = 61 0 203 Allen key.

Note: For securing individual matrices in the crimping tool.

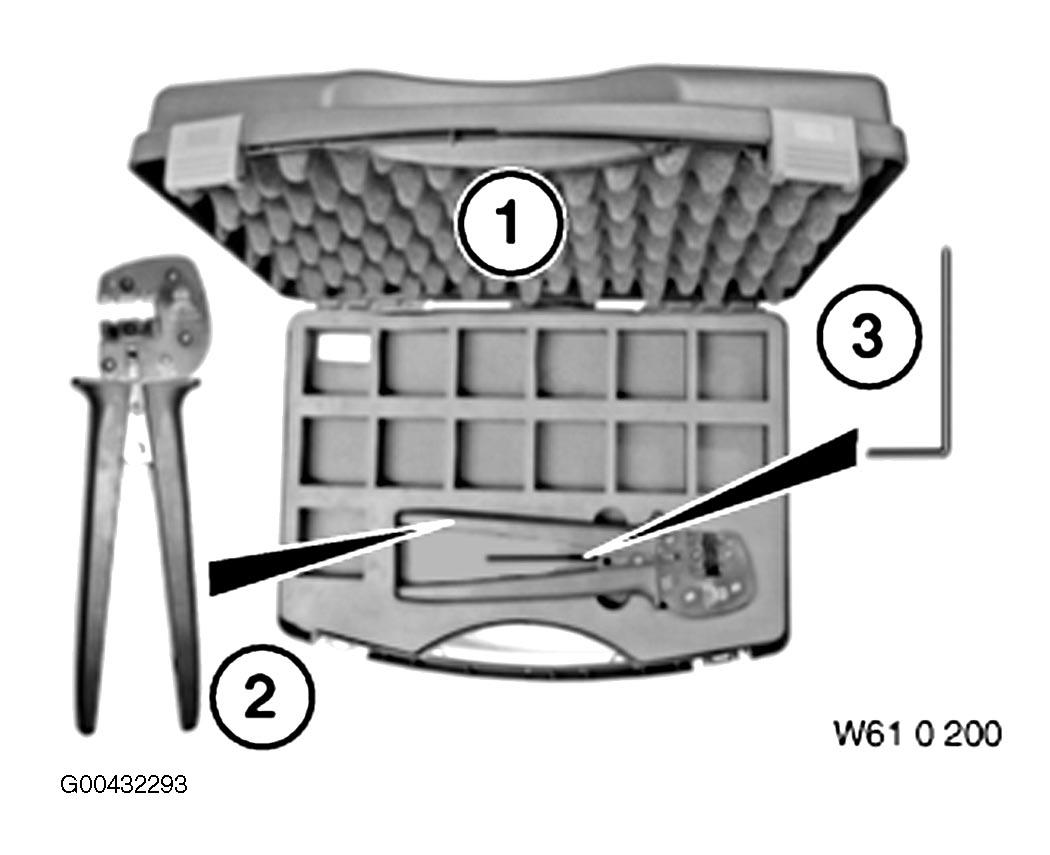

Fig 1: Identifying Special Tool 61 0 200 Crimping Se

Courtesy of BMW OF NORTH AMERICA, INC.
