65 90 510 Removing and installing/replacing navigation computer with CD-drive

NOTE:

Special Tools Required:

Necessary Preliminary Tasks:

Comply with notes and instructions on handling navigation computers. Refer to 65 90 ... NOTES ON HANDLING NAVIGATION COMPUTERS .
Remove right front seat. Refer to 52 13 000 REMOVING AND INSTALLING DRIVER'S OR FRONT PASSENGER SEAT (NORMAL / MANUAL) .
If necessary, remove rear right foot mat.

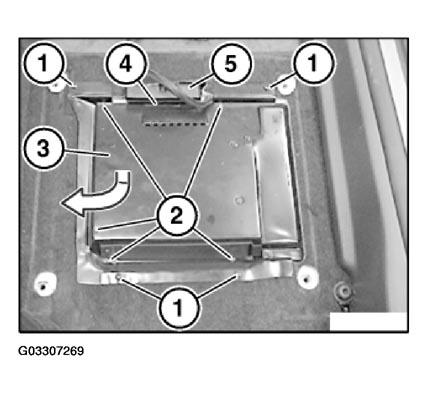

Unfasten screws (1 and 2).

Lift housing (3) out of air duct (5) and floor carpet.

Installation:

Insert tab (4) below air duct (5).

Fig 1: Locating Tab On Housing

Courtesy of BMW OF NORTH AMERICA, INC.

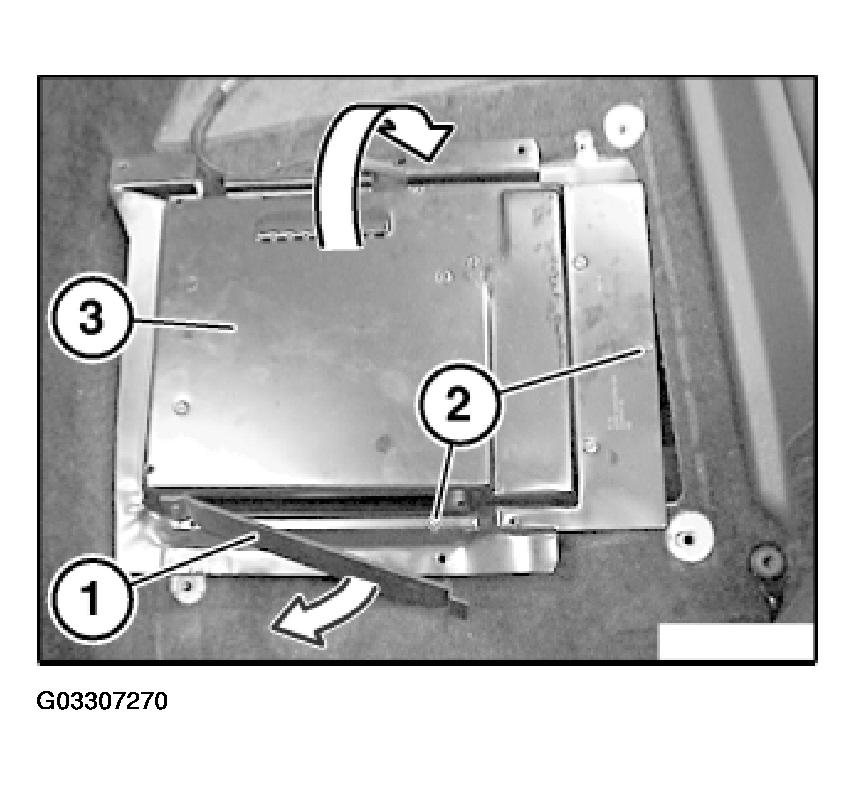

Open flap (1).

Release screws (2) and move cover (3) forwards.

Fig 2: Opening Flap Of Housing

Courtesy of BMW OF NORTH AMERICA, INC.

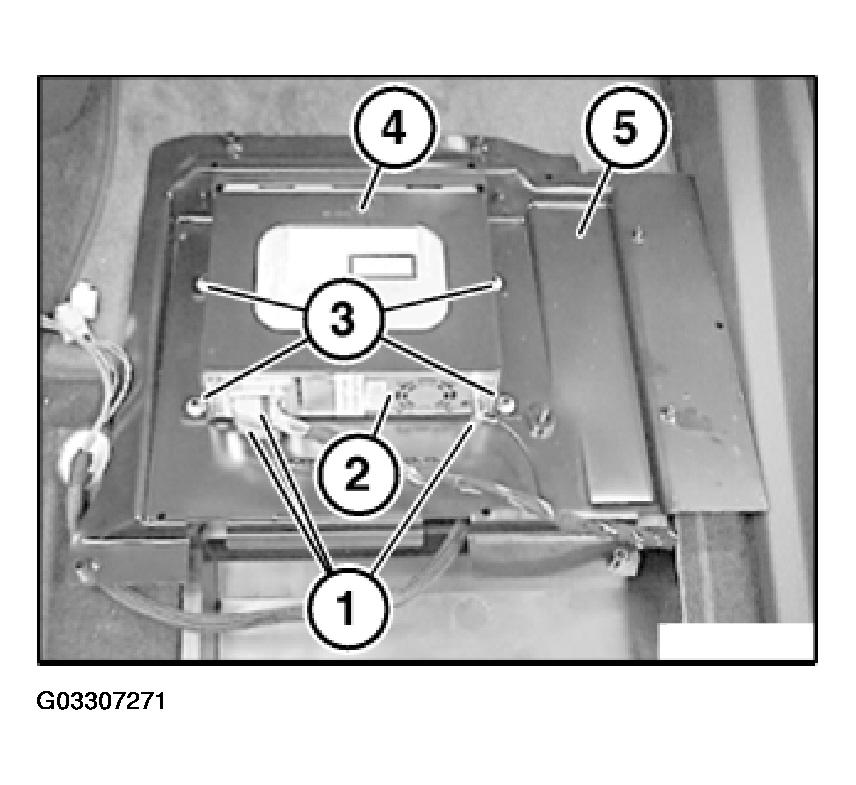

Disconnect plug connections (1).

Remove navigation computer (2) complete with cover (5).

Replacement only:

Release nuts (3).

Remove navigation computer (2) with holder (4) from cover (5).

Fig 3: Removing Navigation Computer With Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

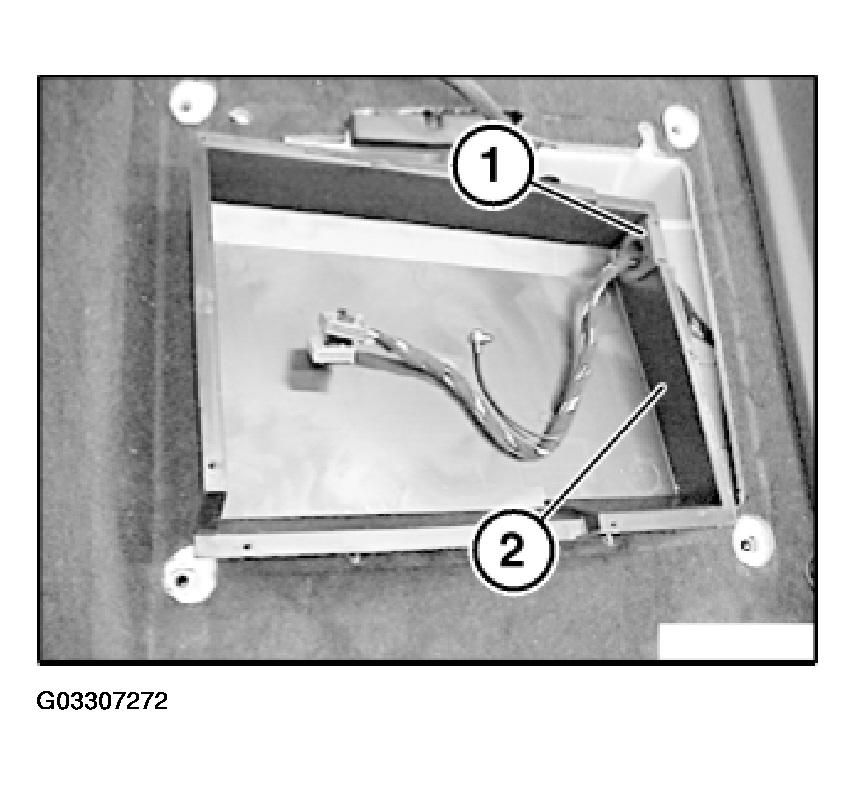

Fit cable grommet (1) correctly in housing (2).

Fig 4: View Of Cable Grommet In Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

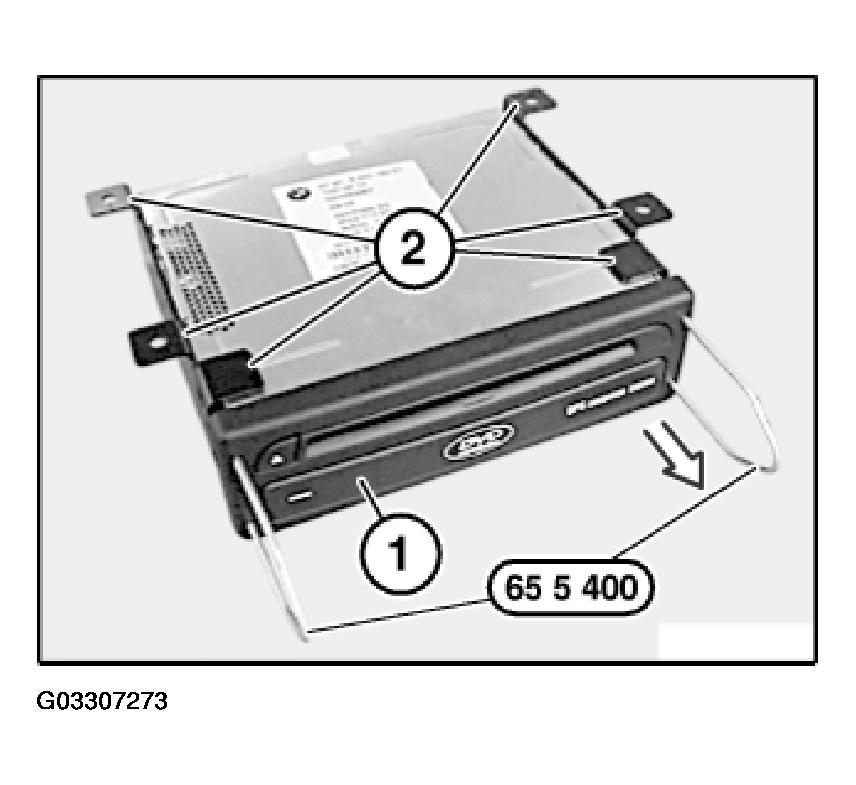

Unlock navigation computer (1) with special tool 65 5 400 and pull out of holder (2).

Fig 5: Removing Navigation Computer

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Carry out coding/programming.

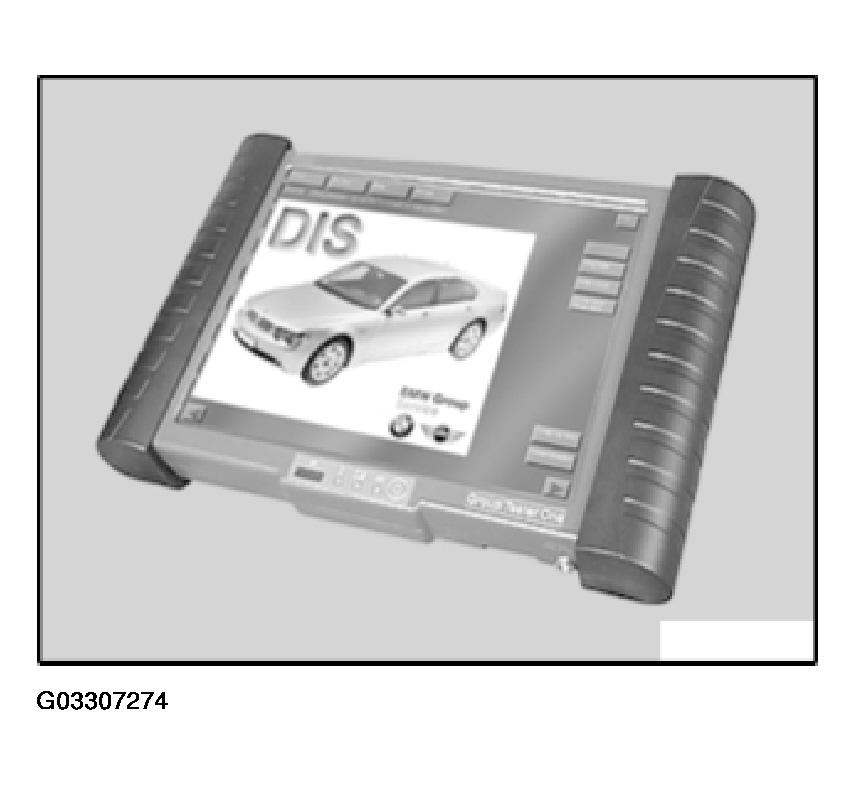

Fig 6: Identifying Programming Equipment

Courtesy of BMW OF NORTH AMERICA, INC.
