Removal & Installation

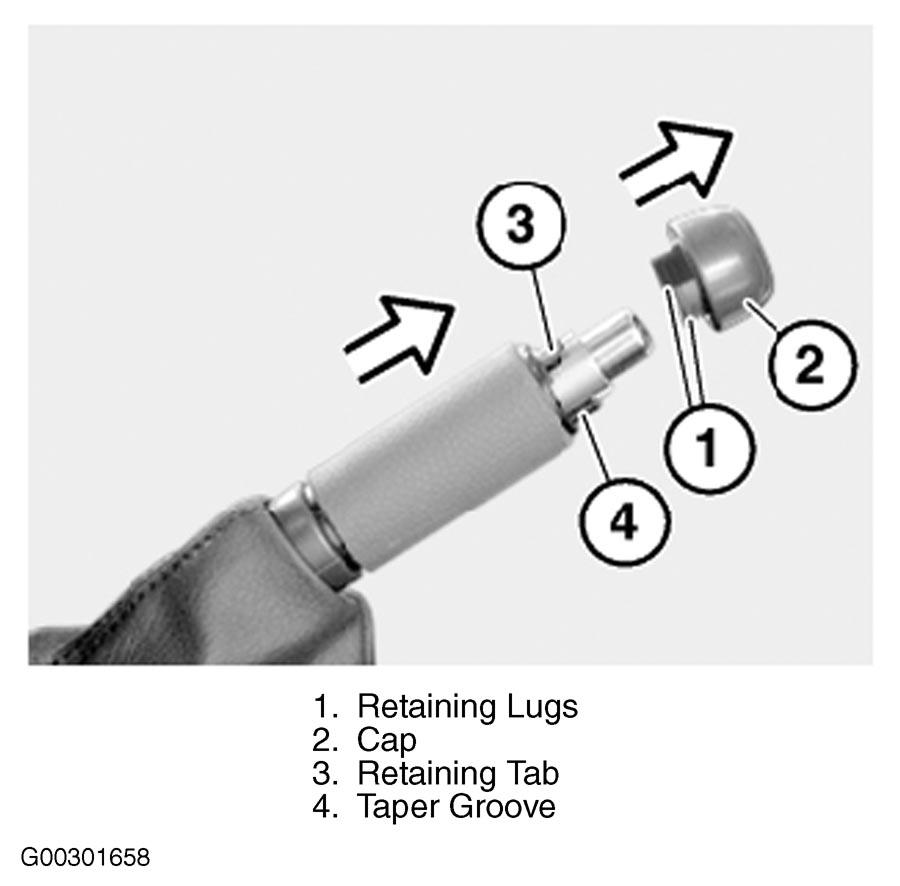

Release retaining lugs on cap and remove cap. Release retaining tab on hand brake lever handle and remove hand brake lever handle in direction of arrow. See Figure. To install, reverse removal procedure. Ensure hand brake lever handle is seated in a taper groove as it can only be installed in one position.
