Pedal Self-Adjuster & Cable: Removal

1. Disconnect negative battery cable. Remove sound-deadening panel, located under instrument panel. Remove left cowl trim panel attaching screws and pull left cowl trim panel away from body. Disconnect courtesy light wiring and remove panel.
2. Remove steering column lower shroud and left lower instrument panel attaching screws. Lower instrument panel, disconnect radio speaker wires and remove panel. Wedge a block of wood approximately 7" long under clutch pedal to disengage clutch cable self-adjuster.
3. Raise vehicle. Remove clutch release lever cover. Pull rearward on clutch release cable and disengage from release lever. Lower vehicle. Unhook clutch release cable from self-adjuster cam.
4. Using a hook, remove clutch pedal retaining clip. Remove clutch pedal and washer from shaft. Remove pedal bushings, adjuster sector and sector spring. Remove retaining clip from adjuster pawl shaft. Remove adjuster pawl, spring, and shaft. See Fig 1 .

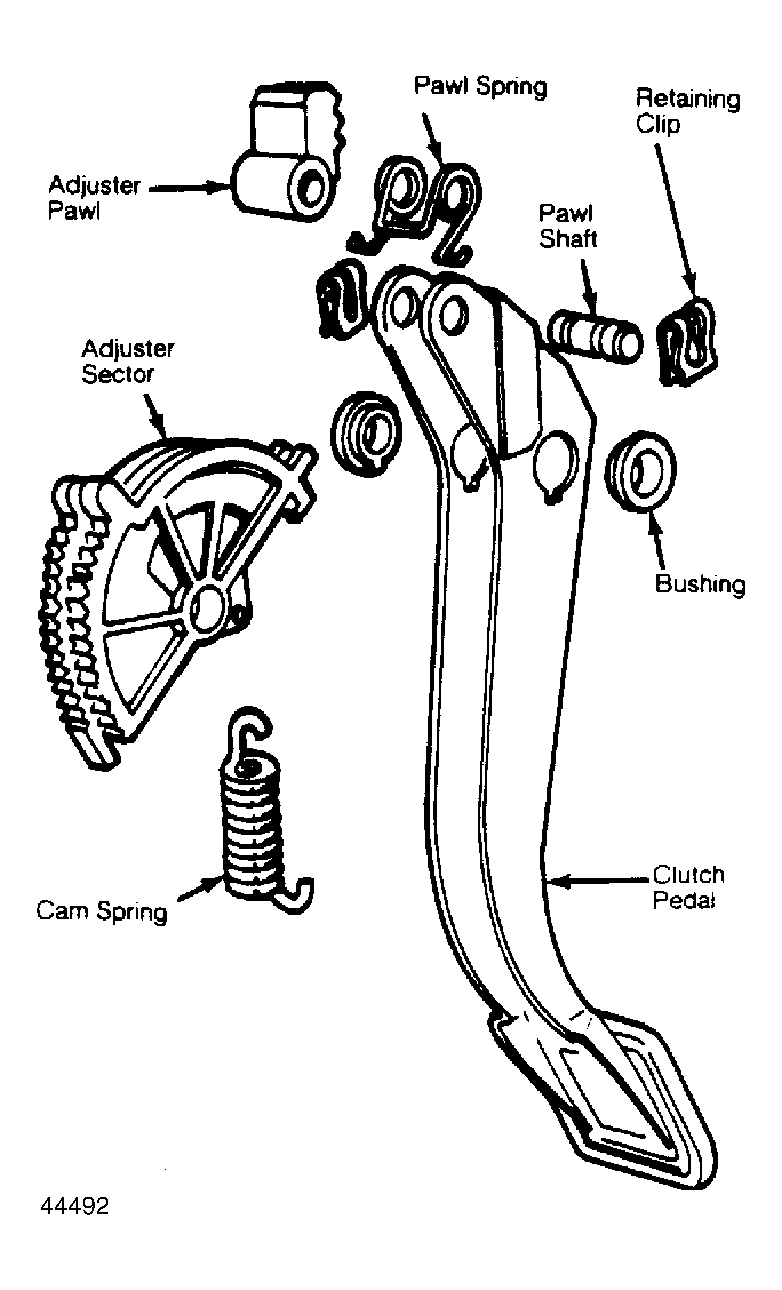

Fig 1: Exploded View of Pedal Self-Adjuster

Courtesy of FORD MOTOR CO.
