Compressor Diagnostic Flow Charts (Tempo & Topaz)

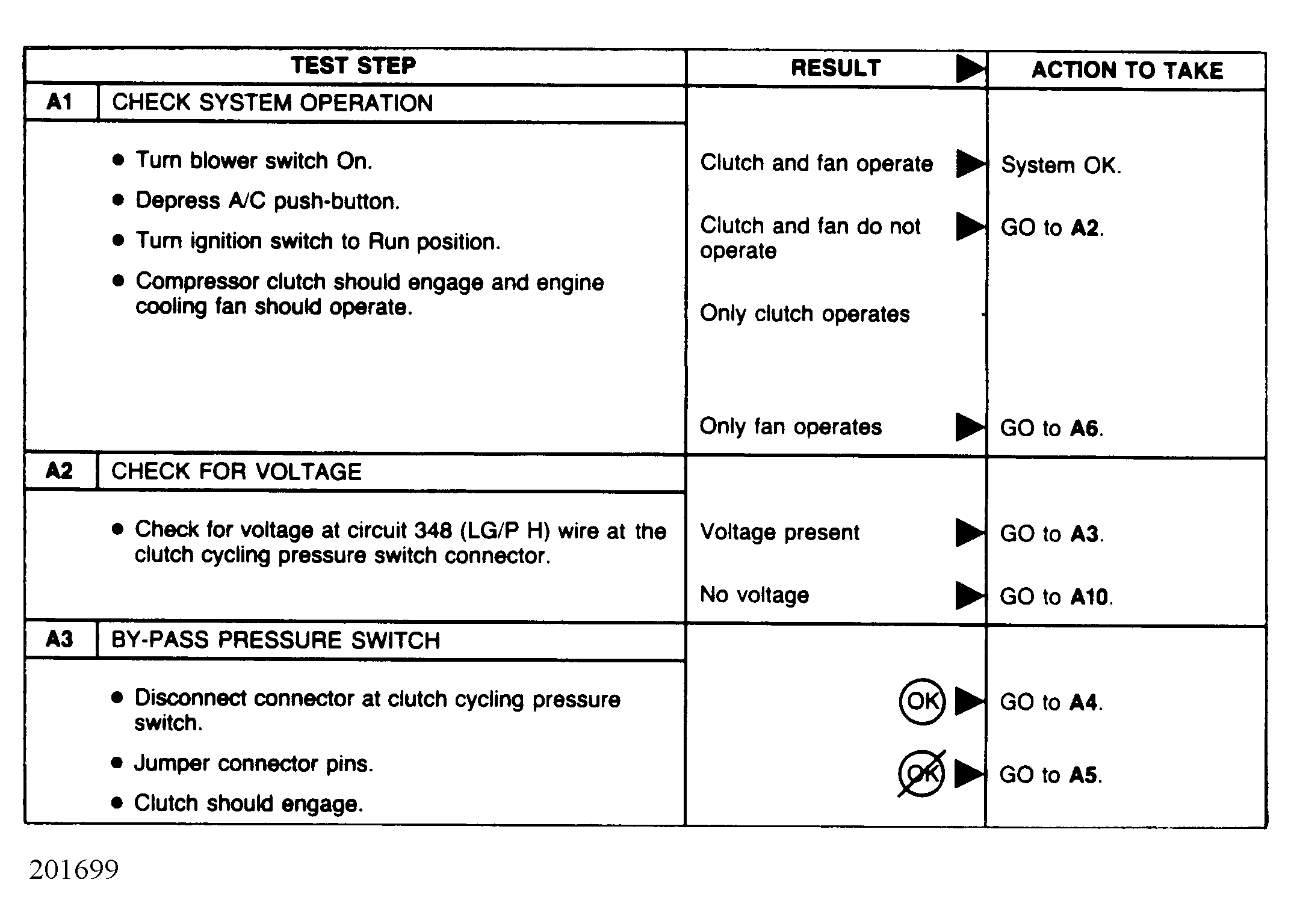

Fig 1: Compressor Clutch Diagnostic Charts (A1-A3)
G201699

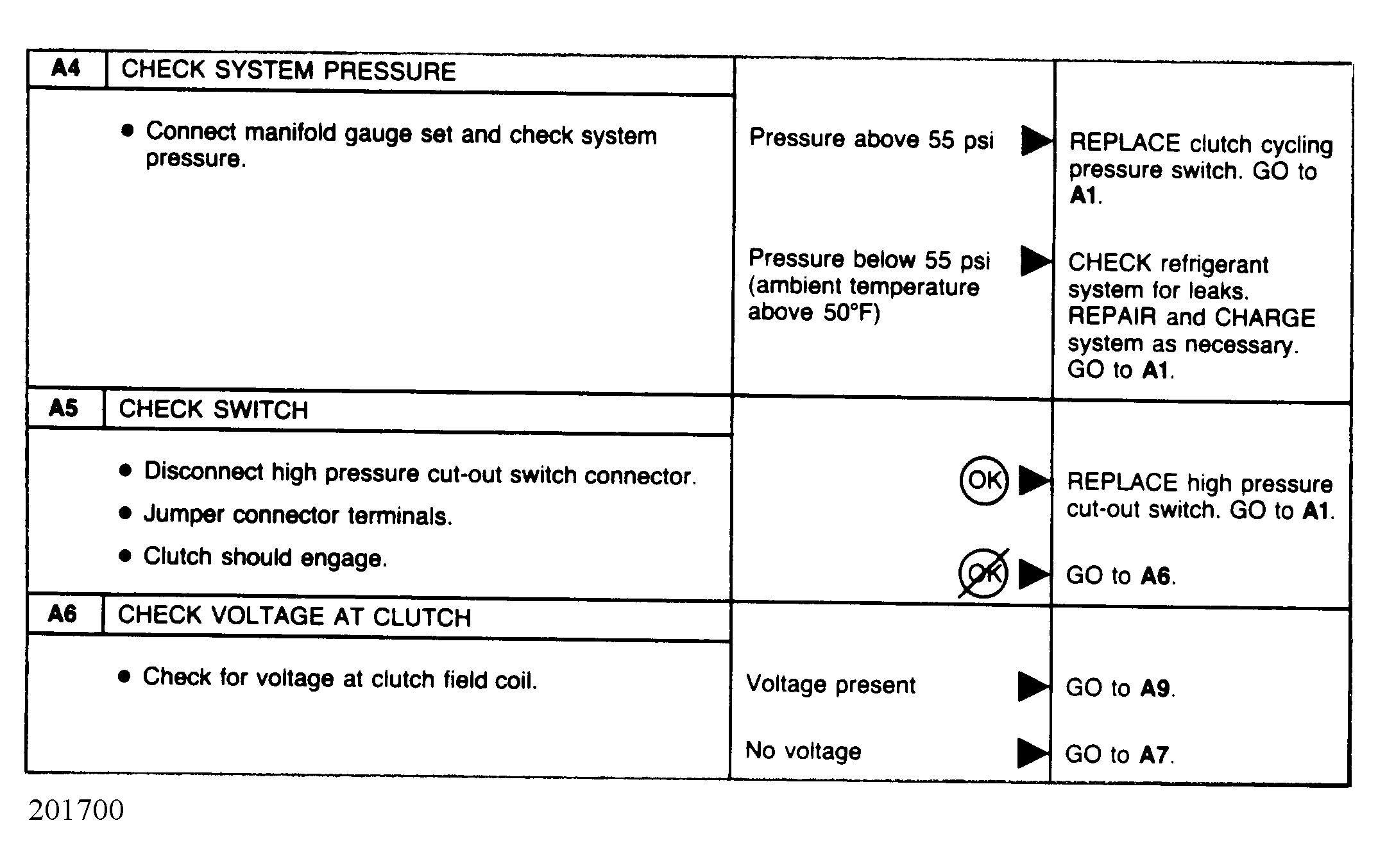

Fig 2: Compressor Clutch Diagnostic Charts (A4-A6)
G201700

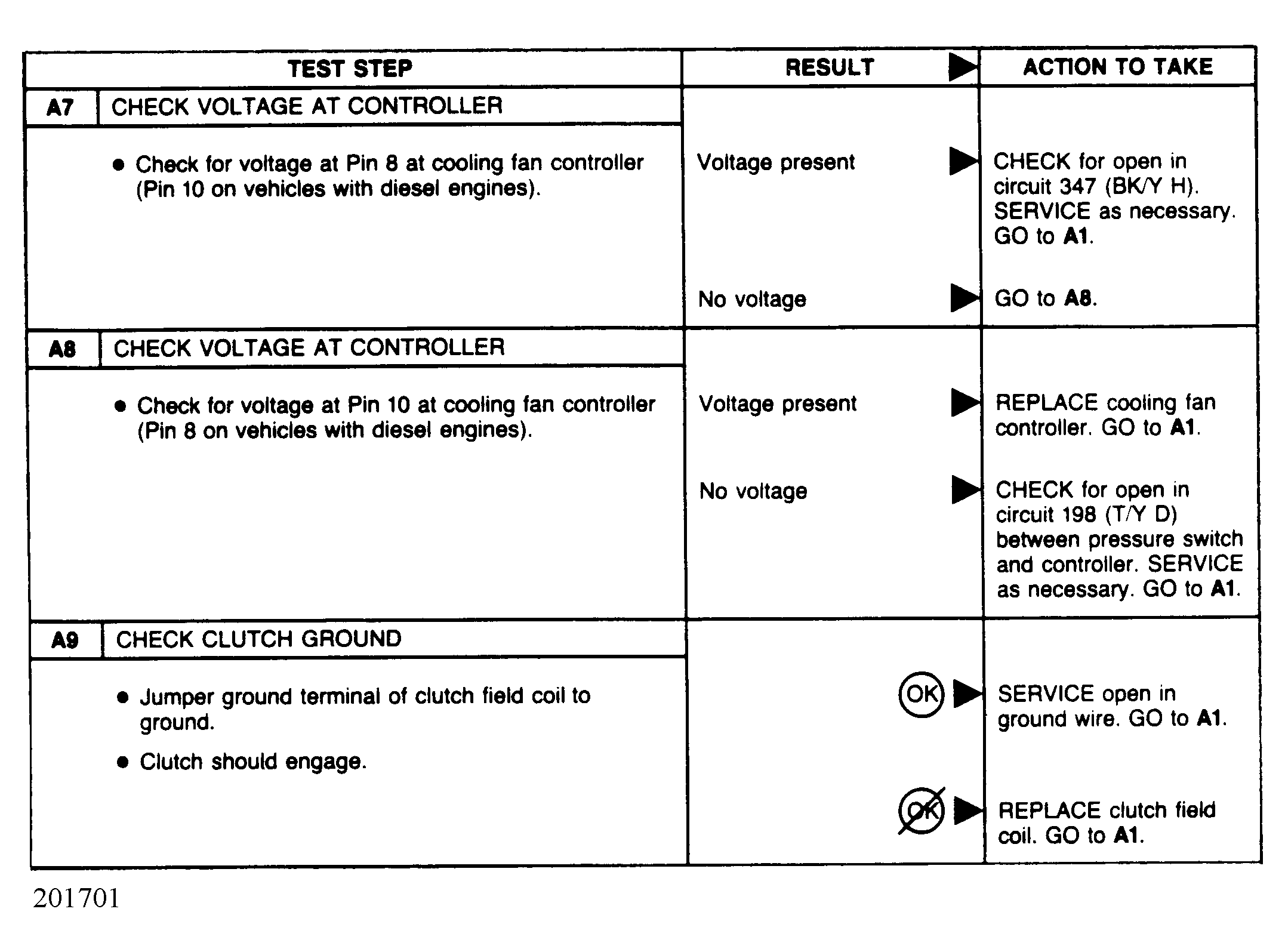

Fig 3: Compressor Clutch Diagnostic Charts (A7-A9)
G201701

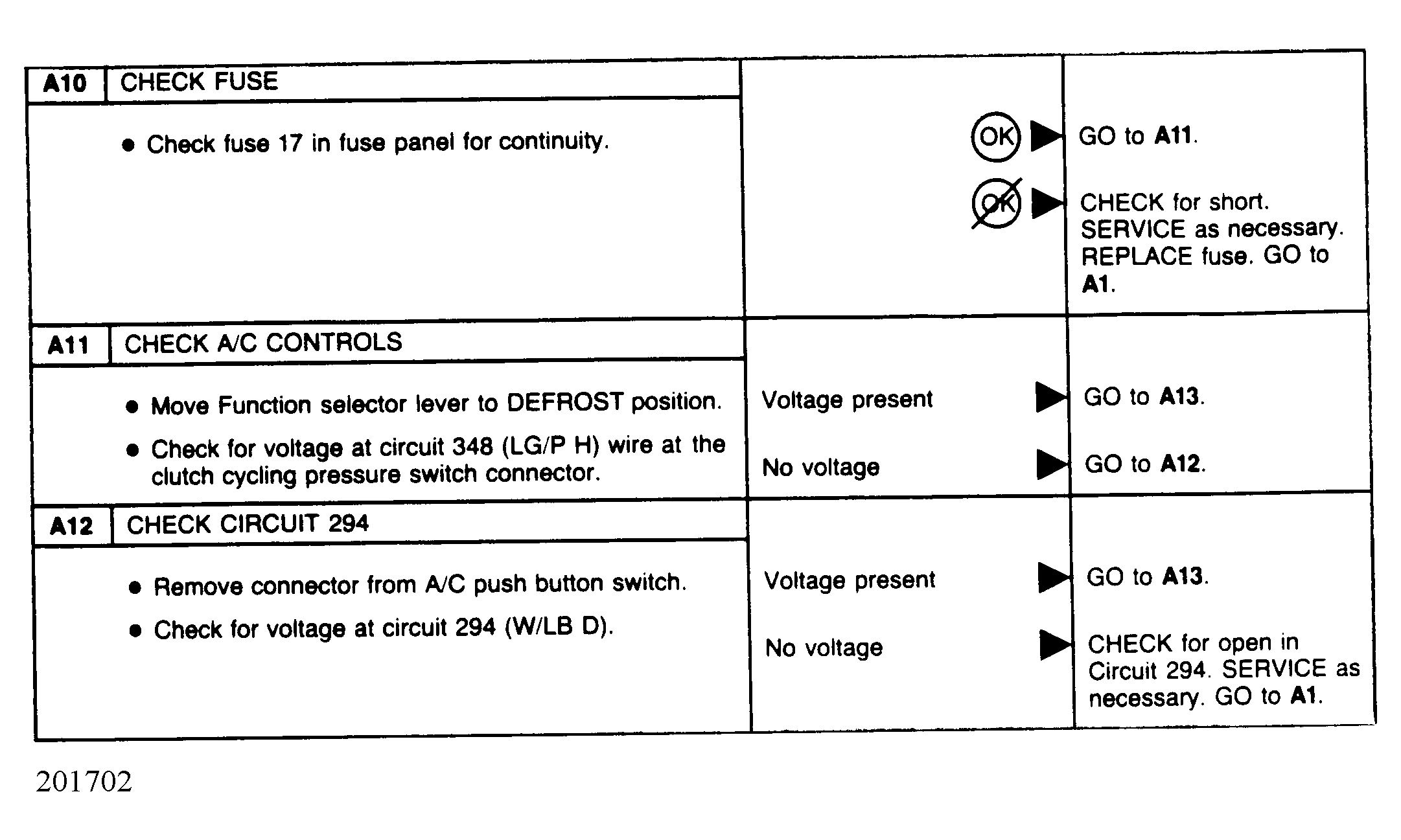

Fig 4: Compressor Clutch Diagnostic Charts (A10-A12)
G201702

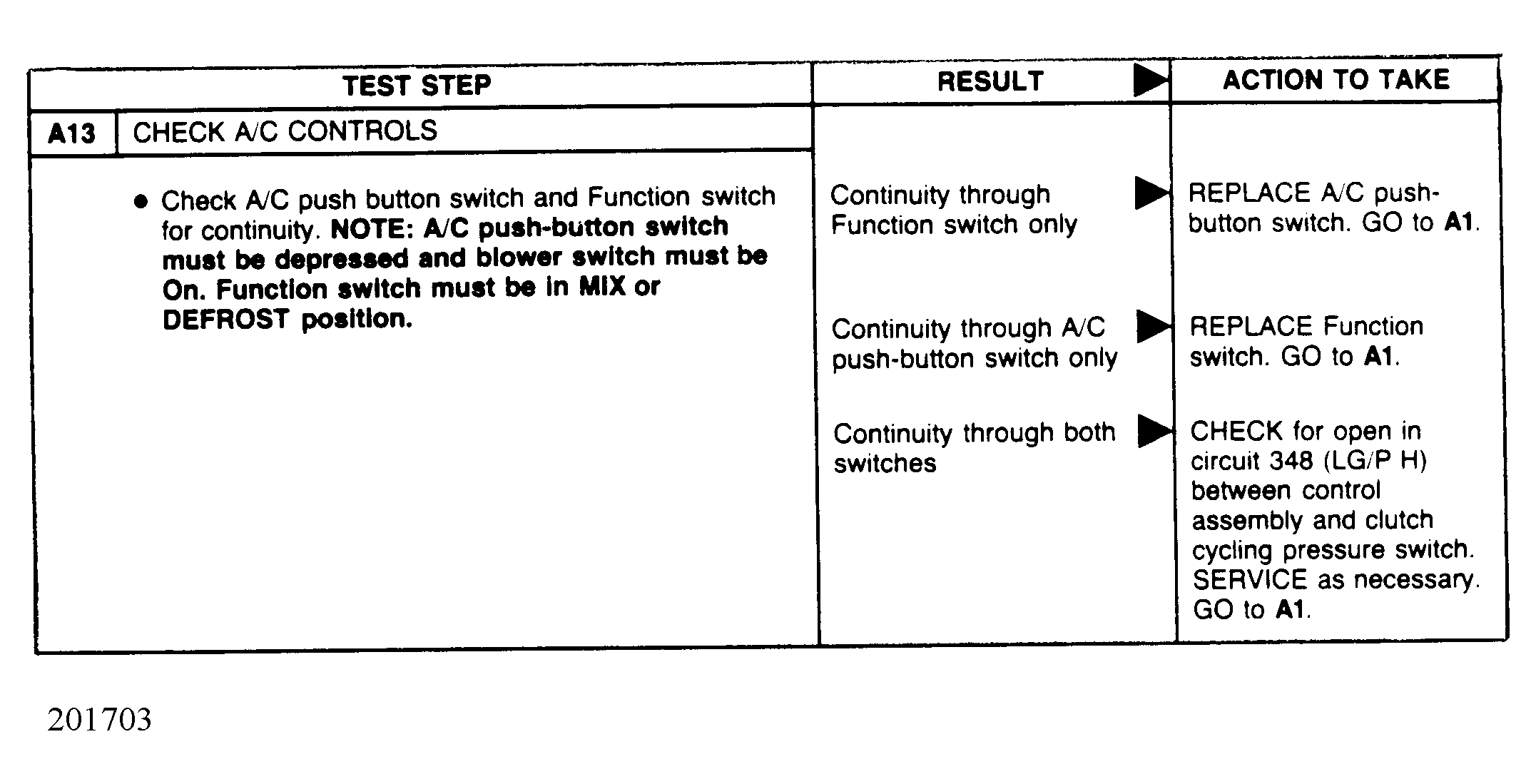

Fig 5: Compressor Clutch Diagnostic Charts (A13)
G201703
CONDITIONS & POSSIBLE CAUSES

Condition Possible Cause
Too Much Heat
  • Loose or misadjusted cables.
  • Temperature control door stuck fully open.
  • ATC servo improperly adjusted.
Air Flow Changes Direction When Vehicle is Accelerated Cowl Vent System Leaks Air
  • Vacuum system leak.
  • Vent door not fully closed.
  • Vent door seal damaged.
Blower Does Not Operate Properly
  • Blower motor defective.
  • Blower resistor defective.
  • Blower wiring harness defective.
  • Blower switch defective.
  • Selector valve switch defective.
Blower Motor Inoperative
  • Blown fuse.
  • Open circuit.
  • Thermal limiter.
  • Blower motor.
  • Blower switch.
