Oil Pump: Disassembly

Remove pick-up tube mounting bolts. Remove pick-up tube and gasket. Remove cover attaching bolts and remove cover. Remove inner rotor and outer race. Drill hole in relief valve retaining plug and pry out plug. Remove spring and valve. See Fig 1.

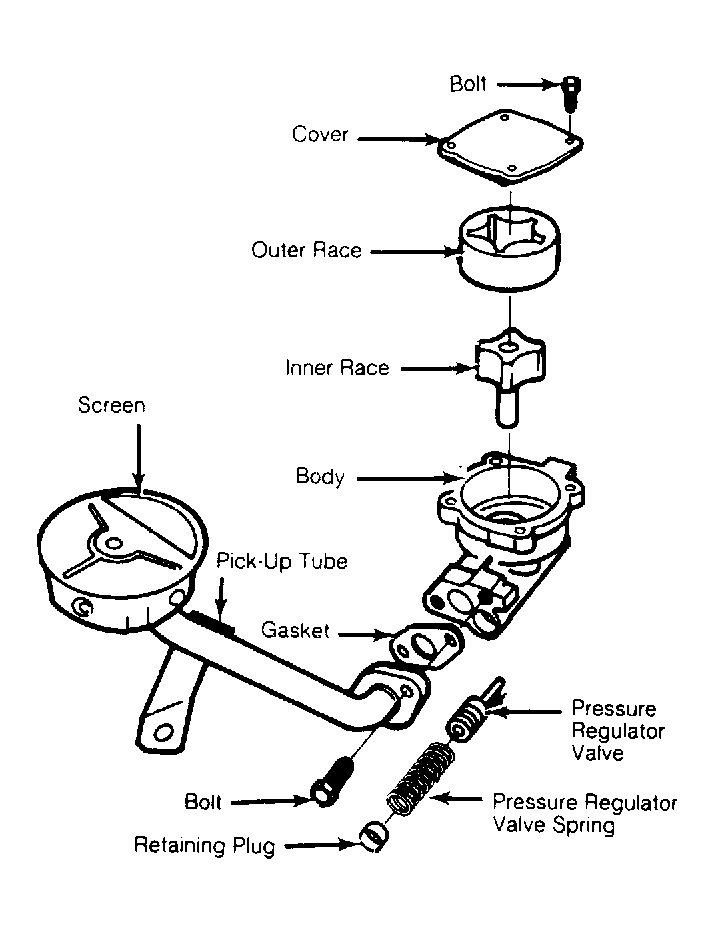

Fig 1: Exploded View of Oil Pump Assembly
G60111Courtesy of FORD MOTOR CO.
