Wiring Diagrams: Wiring Diagram

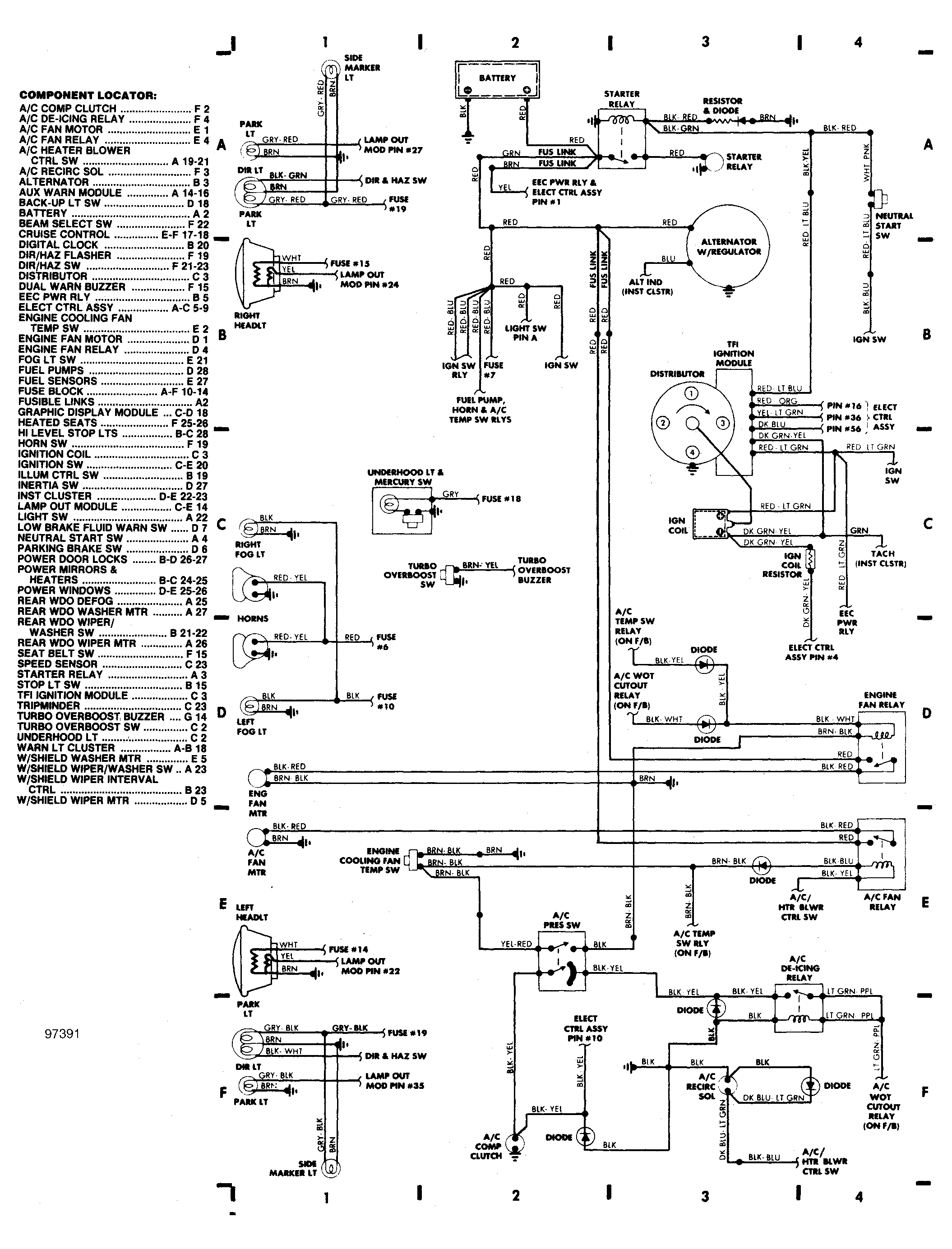

Fig 1: Engine Compartment (Grid 1-4)

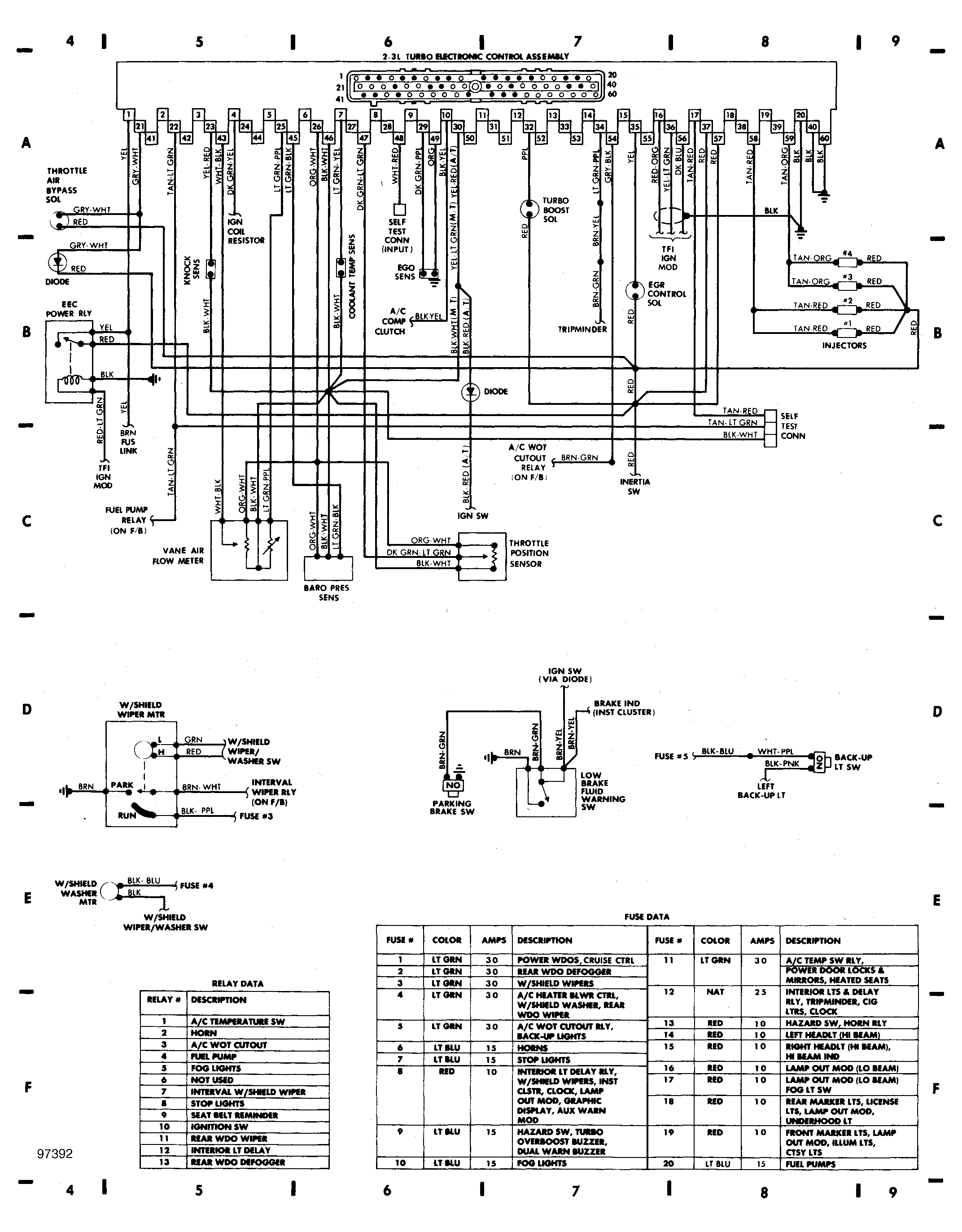

Fig 2: Rear Compartment & Accessories (Grid 4-9)

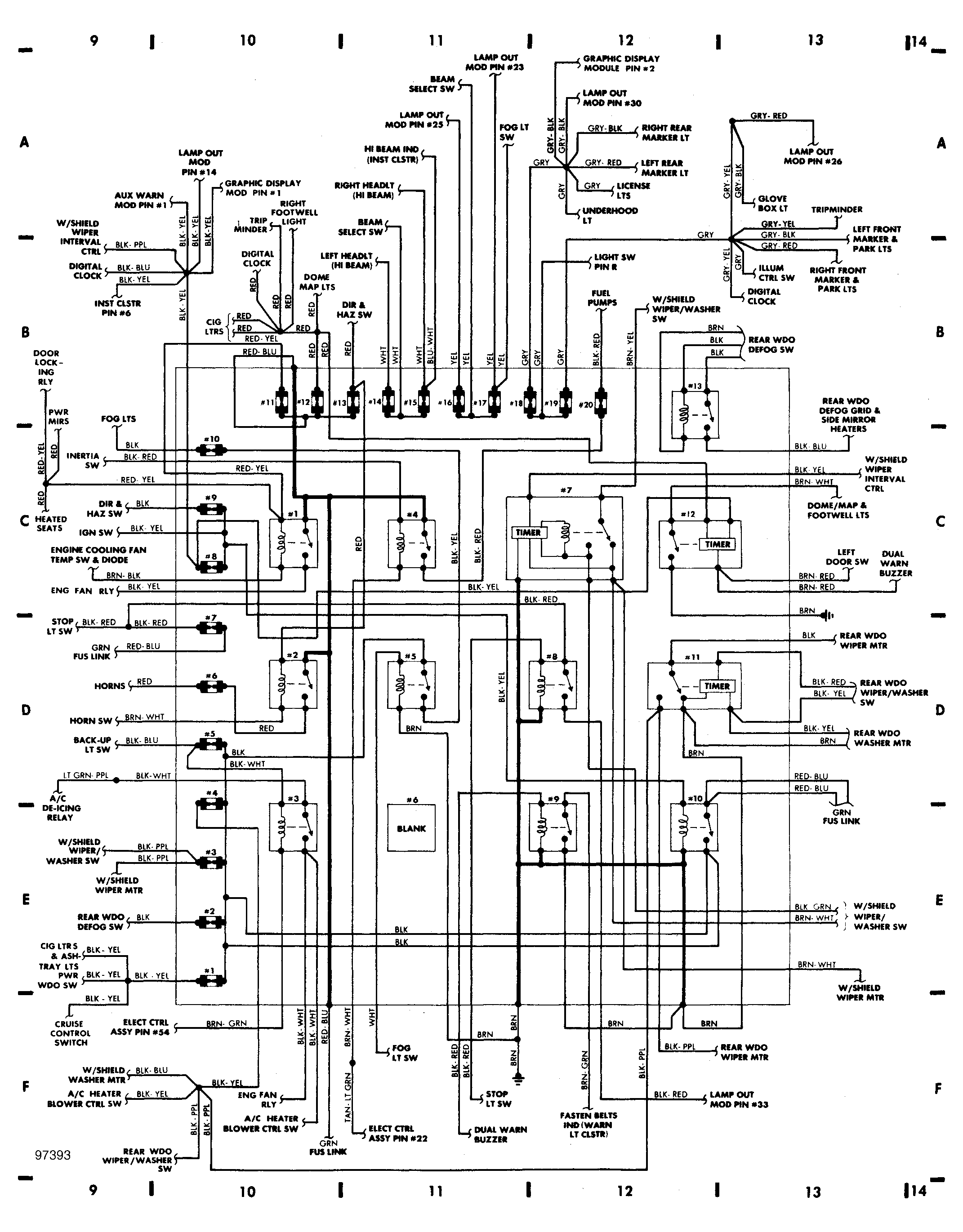

Fig 3: Fuse Block (Grid 9-14)

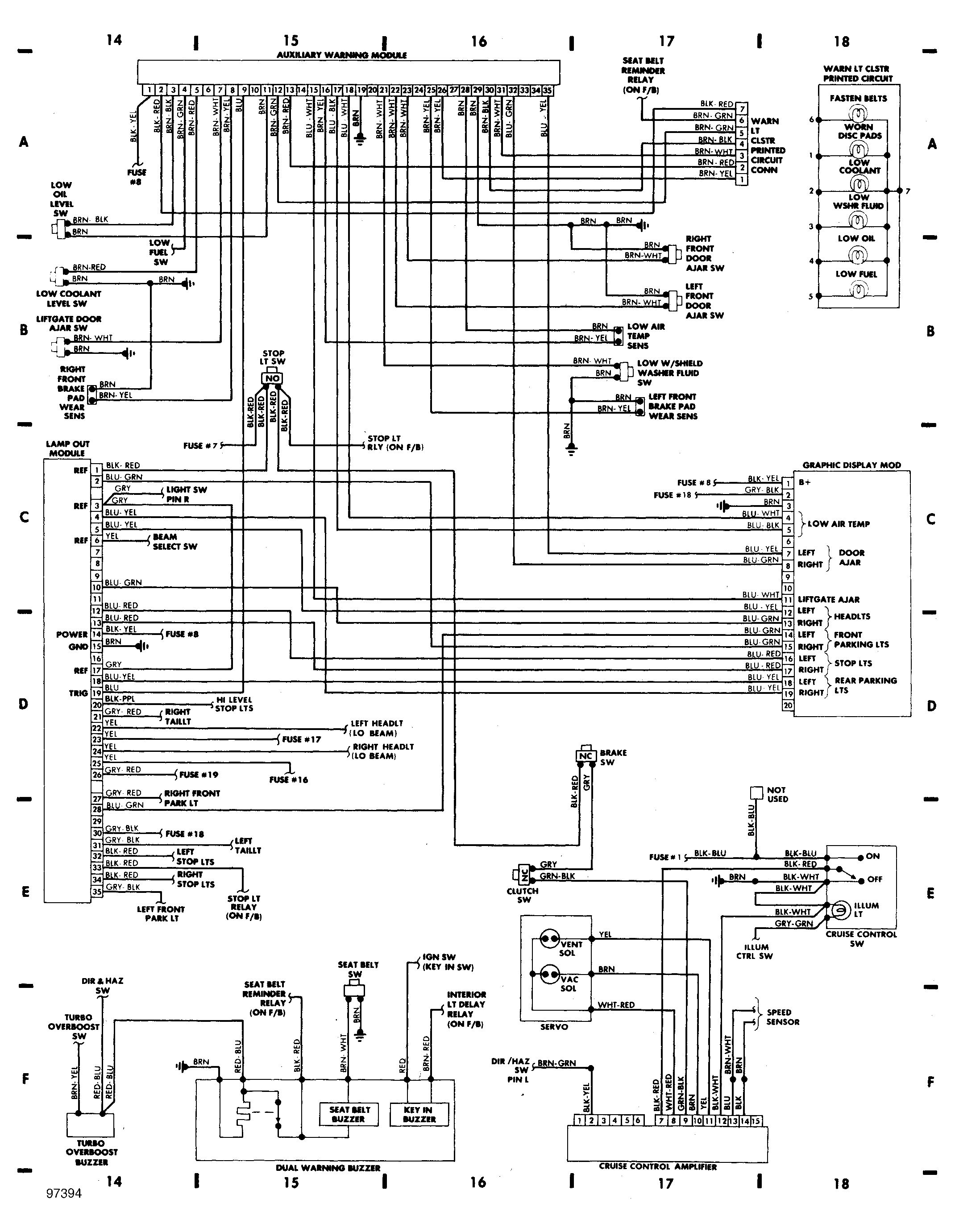

Fig 4: Instrument Panel & Underdash (Grid 14-18)

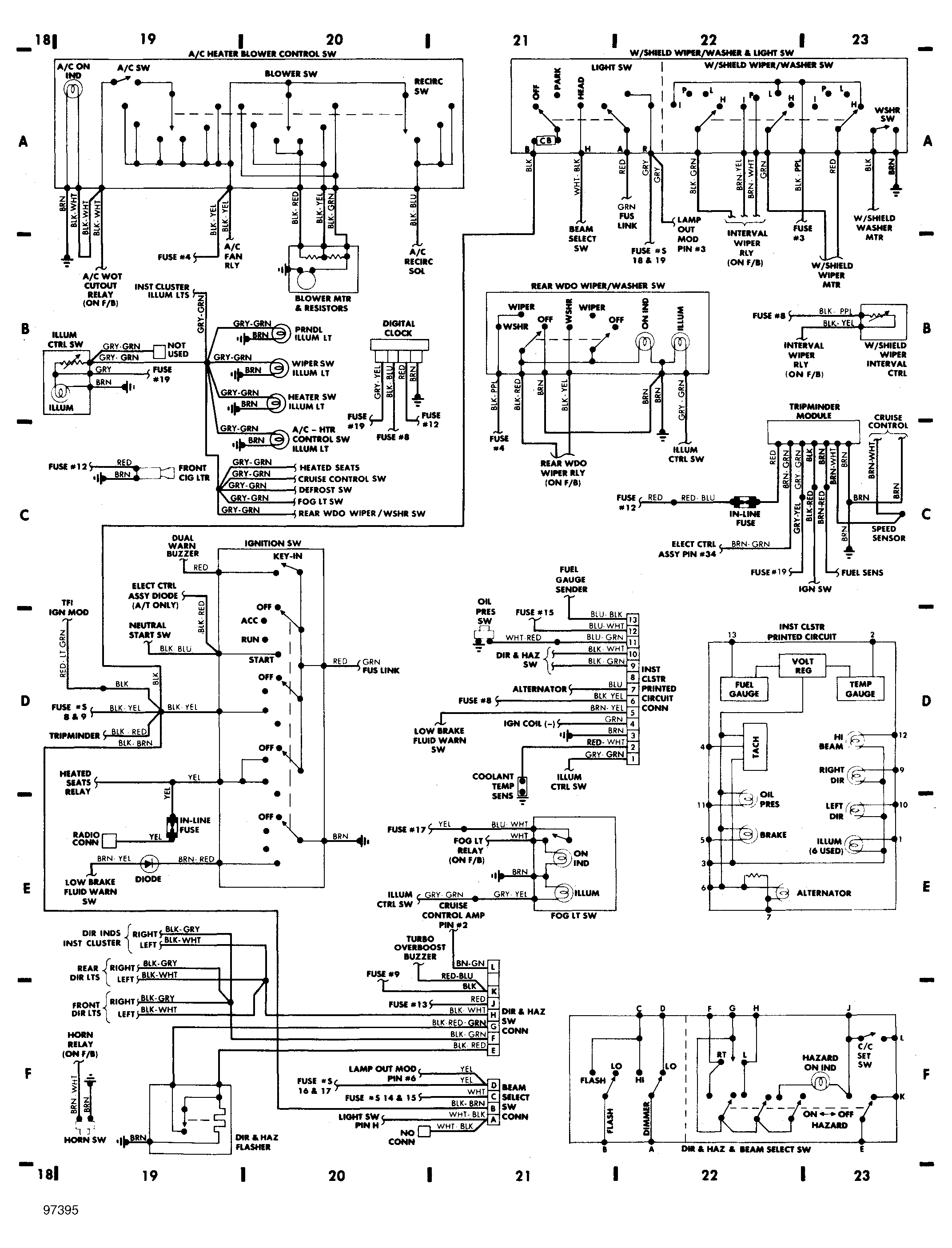

Fig 5: Instrument Panel (Cont.) (Grid 18-23)

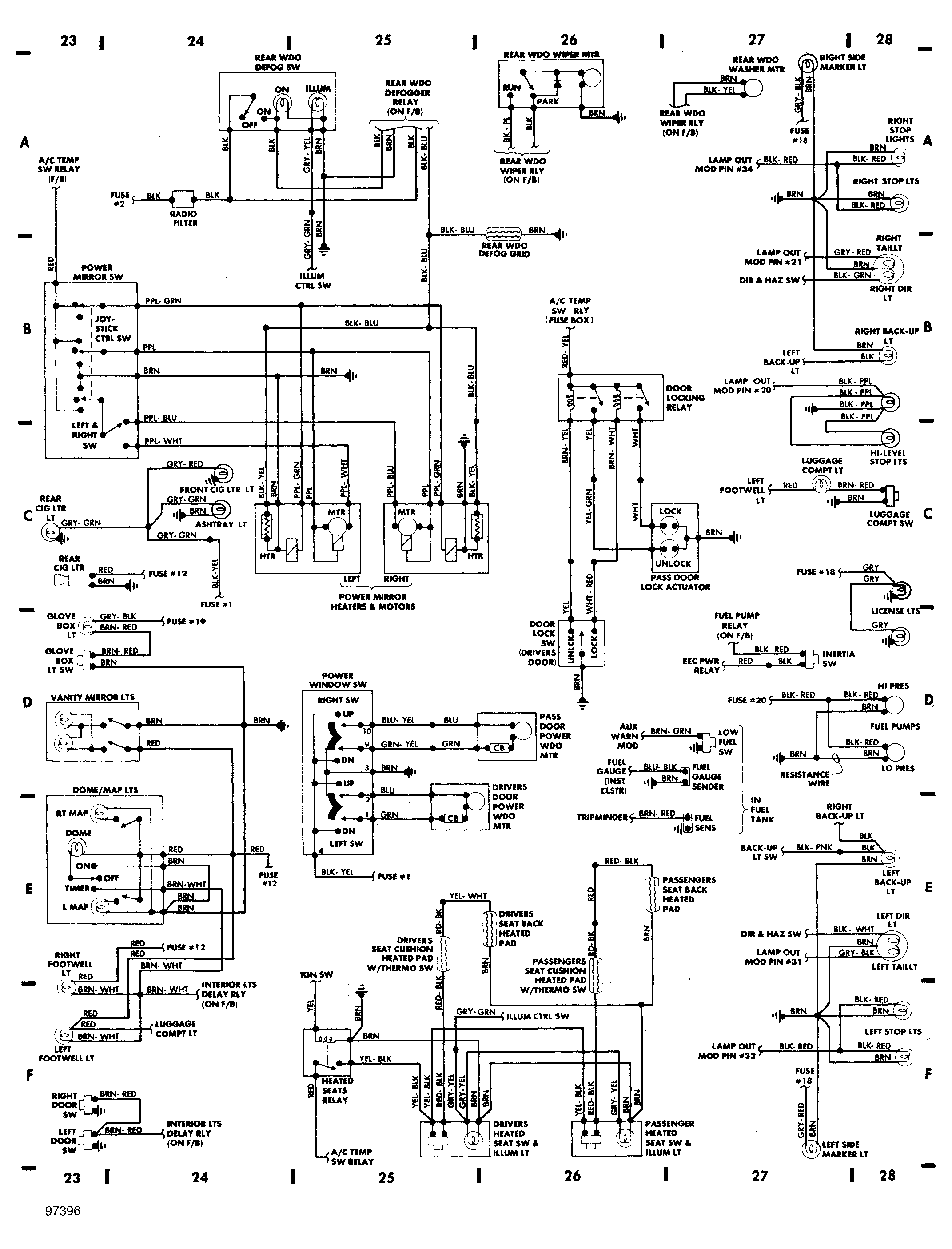

Fig 6: Rear Compartment & Accessories (Grid 23-28)
