Axle Shafts & Bearings: Installation

To install, reverse removal procedure. Lubricate seals before installing. Install bearing hub with rounded side up. Tighten mounting bolts and nuts to specification. Use new wheel flange lock nut.

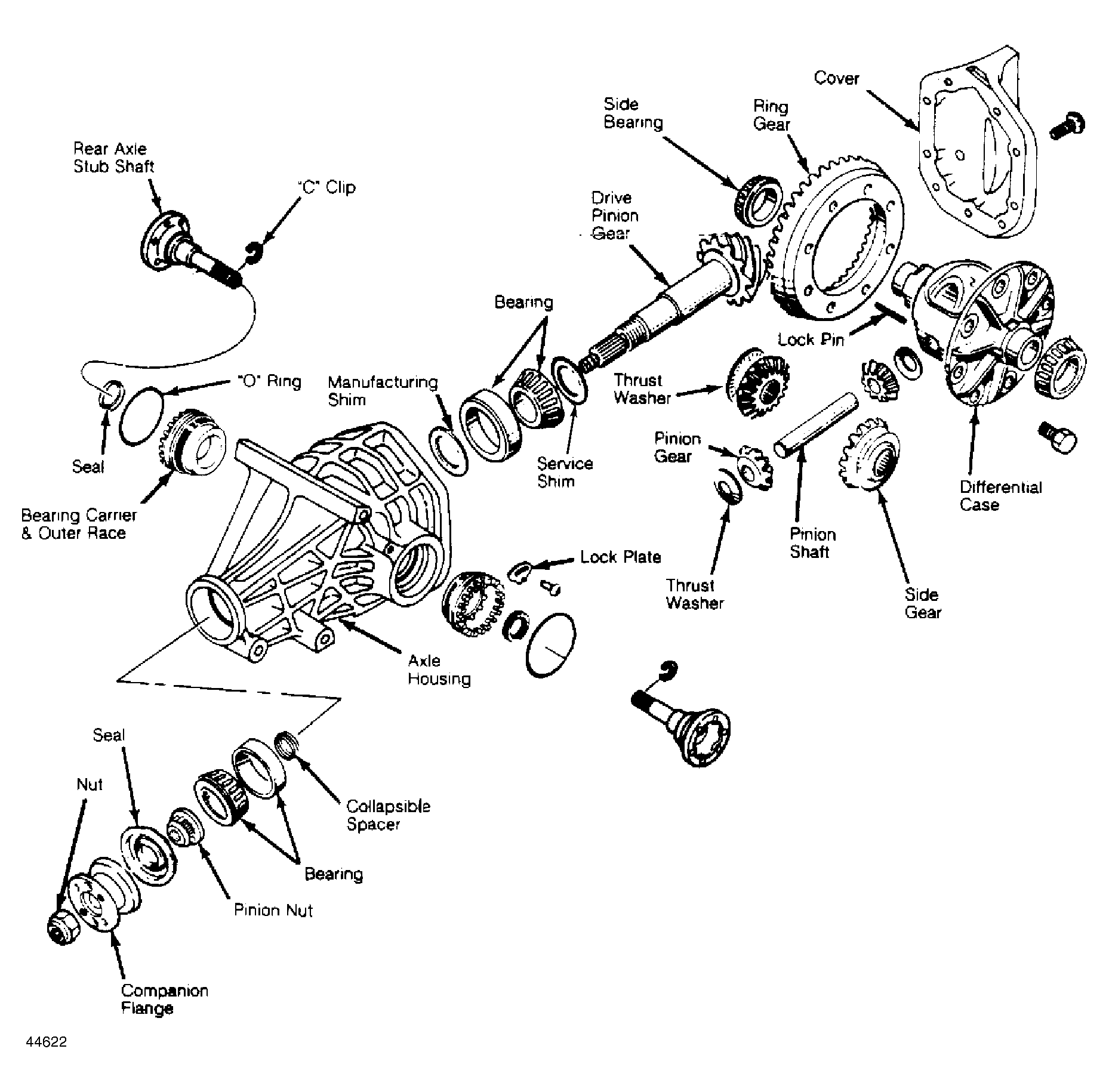

Fig 1: Exploded View of Rear Differential Assembly

Courtesy of FORD MOTOR CO.
